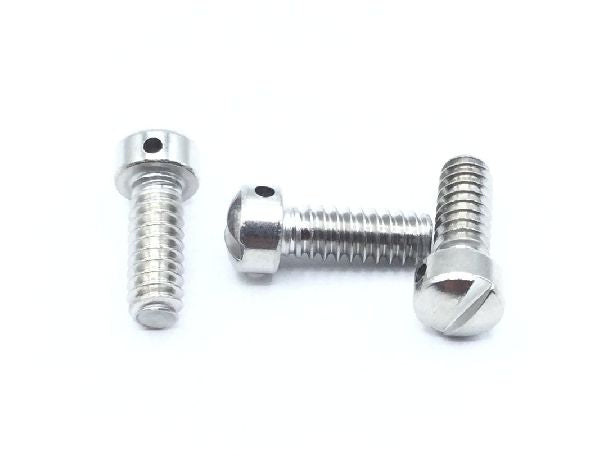

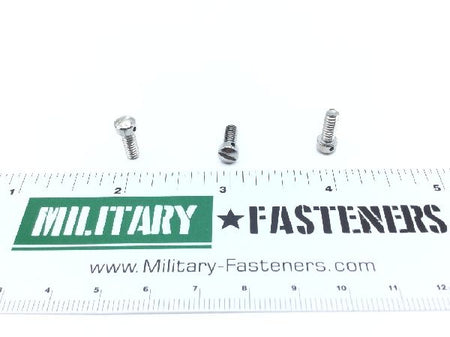

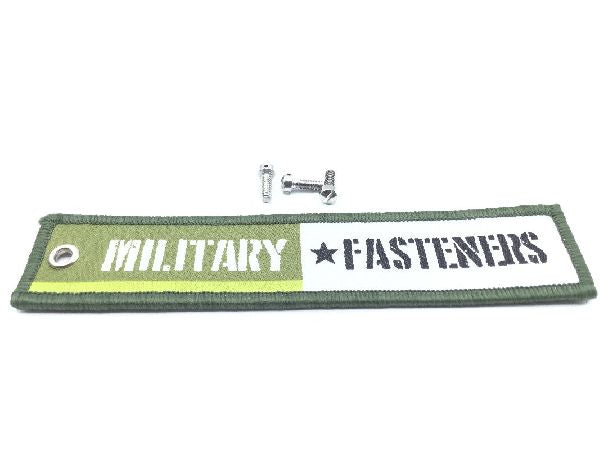

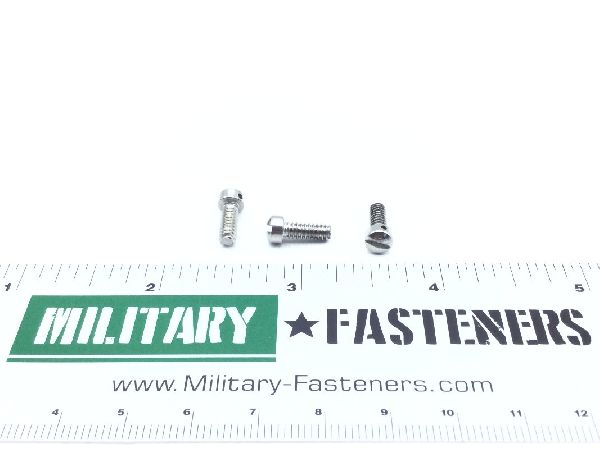

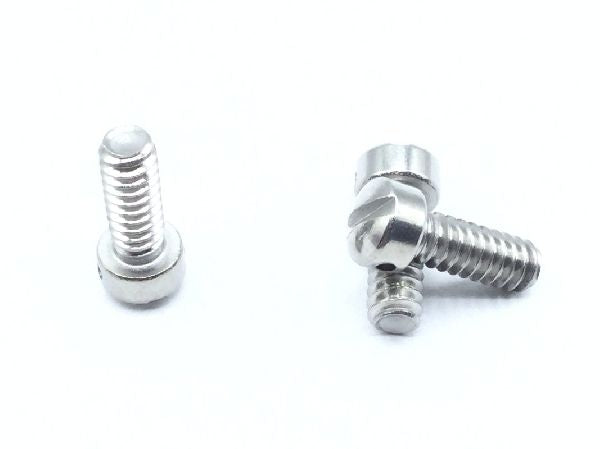

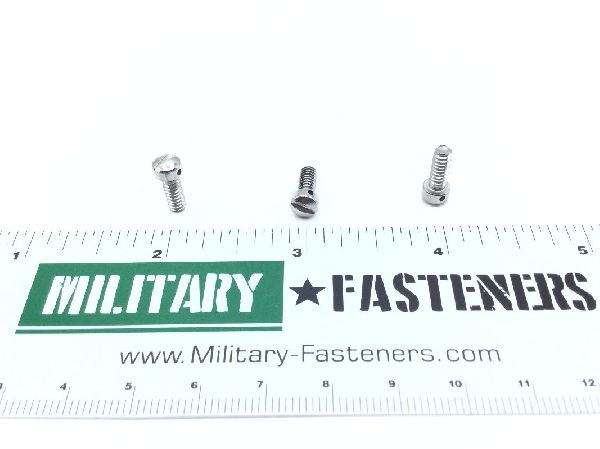

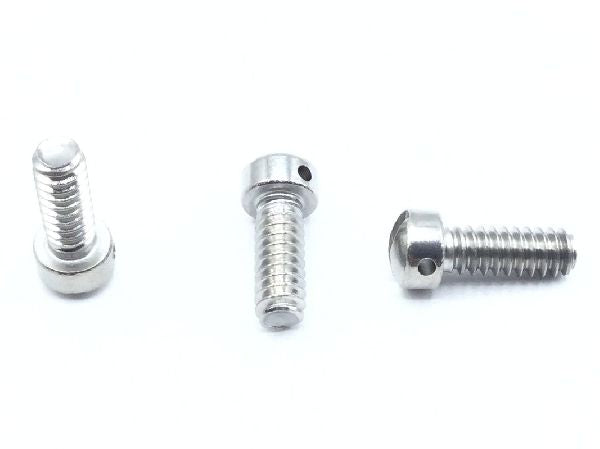

AN500AD6-6 Machine Screw

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $1.47

Units per Pack 25

Price per Pack $36.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $36.75

Add item to quote

Head Style

Fillister

Thread Class

Fastener Length: Between 0.344 inches and 0.375 inches
Head Height: Between 0.089 inches and 0.096 inches
Head Hole Configuration Style: Round
Hole Quantity: 1
Internal Drive Style: Slot
Nondefinitive Specification/std Data: 1 type and 5s style
Screw Material: Steel
Screw Material Specification: 66 federal standard all material responses
Screw Surface Treatment: Passivate
Thread Diameter: 0.138 inches
Thread Direction: Right-hand
Thread Length: Between 0.282 inches and 0.375 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.208 inches and 0.226 inches
Hole Diameter: Between 0.045 inches and 0.050 inches
