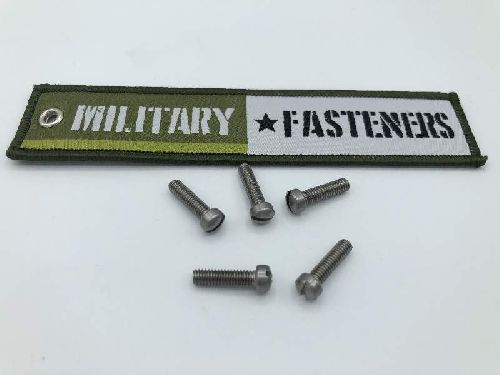

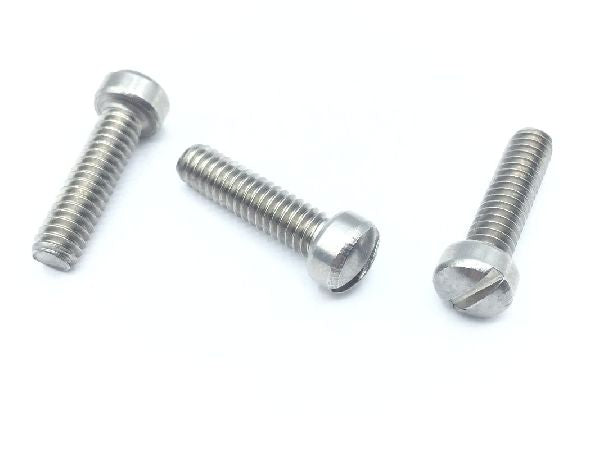

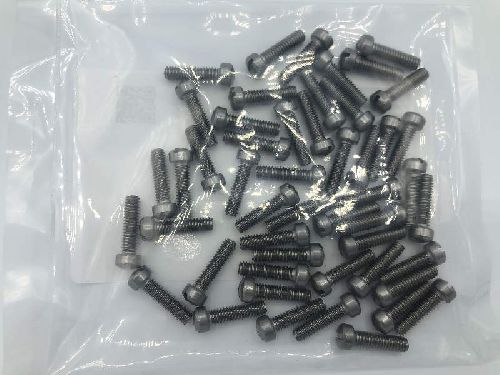

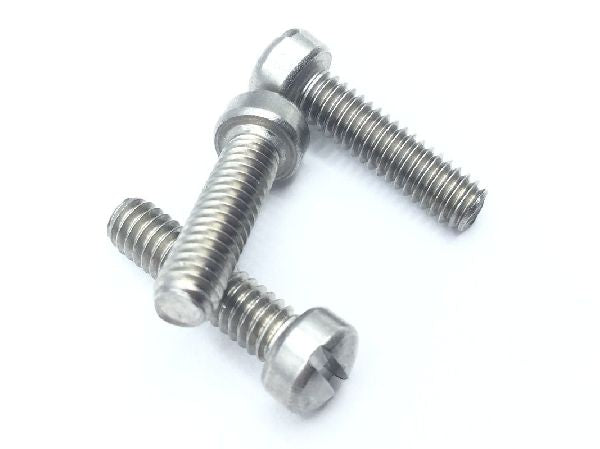

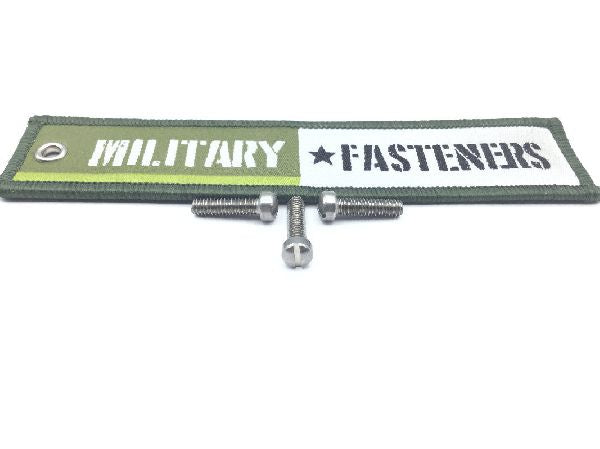

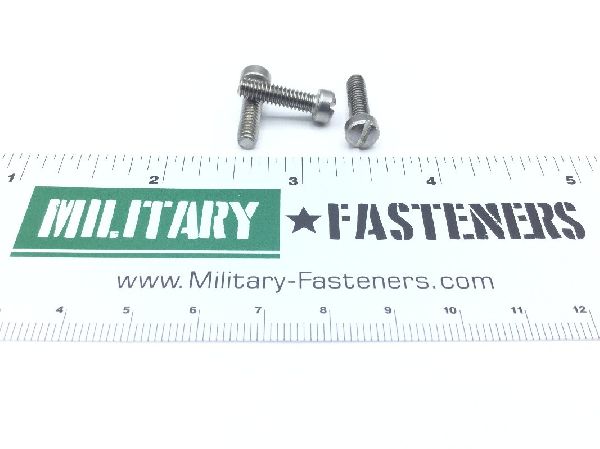

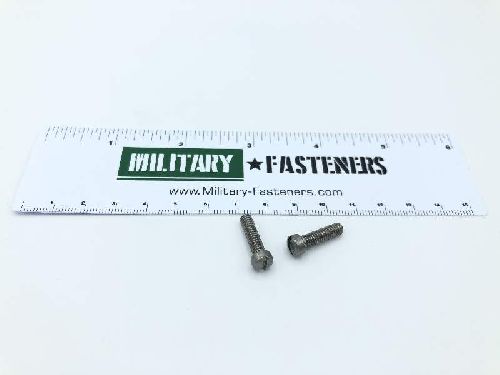

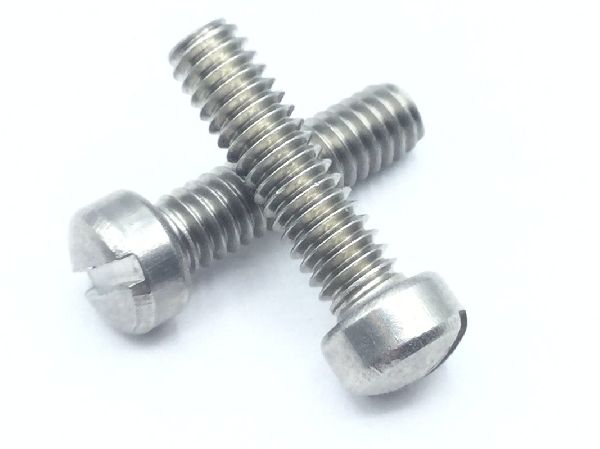

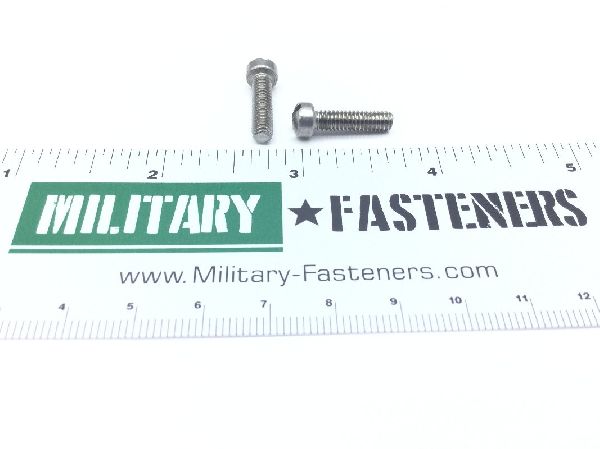

AN500D8-10 Machine Screw

Product Series: AN
ECCN: 9A991
Schedule: 7318.15.2091

Price per Unit $0.69

Units per Pack 50

Price per Pack $34.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $34.50

Add item to quote

Head Style

Fillister

Thread Class

Fastener Length: 0.625 inches
Head Height: Between 0.106 inches and 0.113 inches
Internal Drive Style: Cross recess type 1
Screw Material: Steel comp 302 or steel comp 303se or steel comp 304 or steel comp 316
Screw Material Specification: 66 federal standard all material responses
Screw Surface Treatment: Passivate
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: Between 0.563 inches and 0.625 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.250 inches and 0.270 inches
