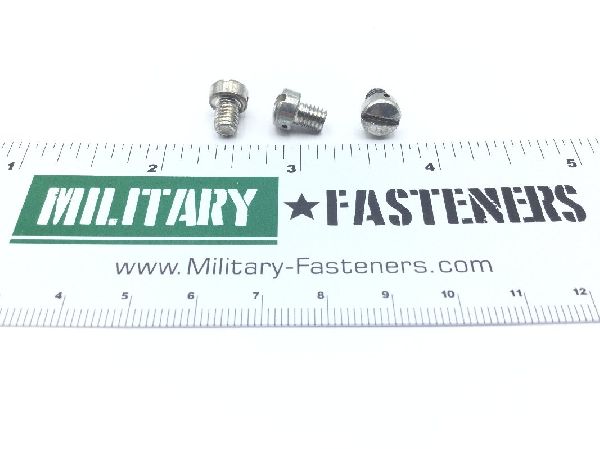

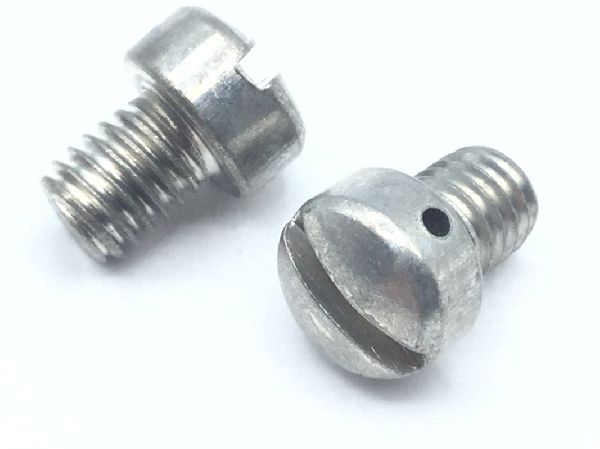

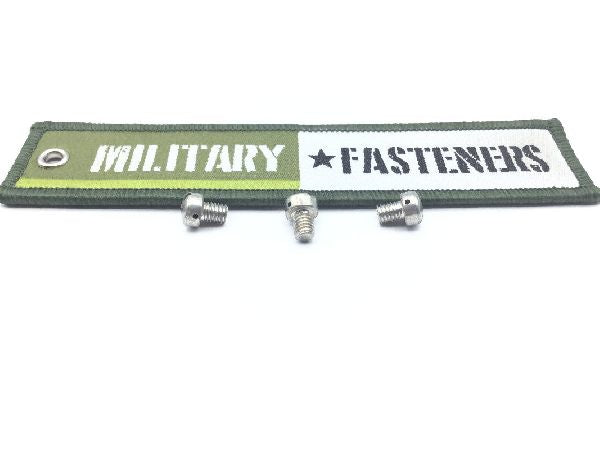

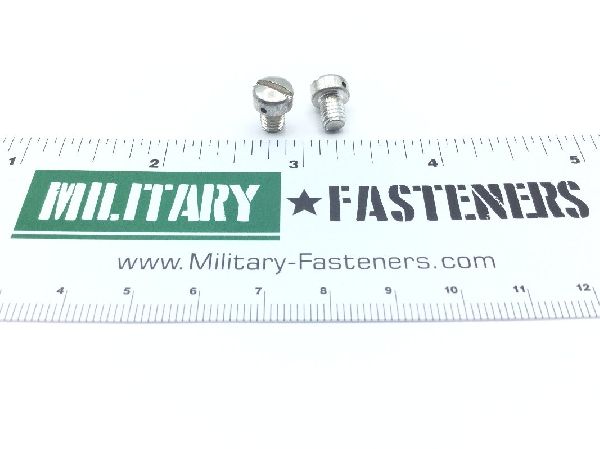

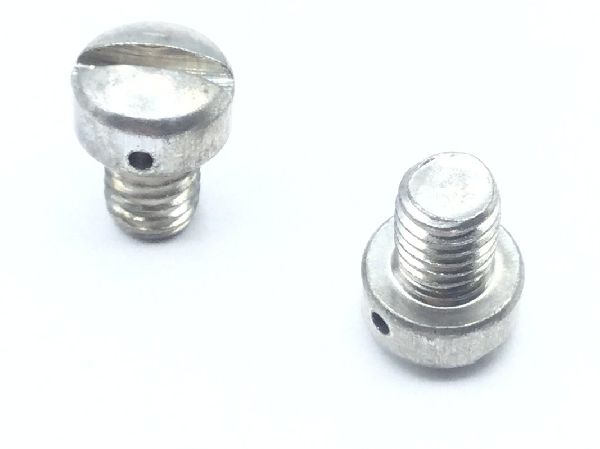

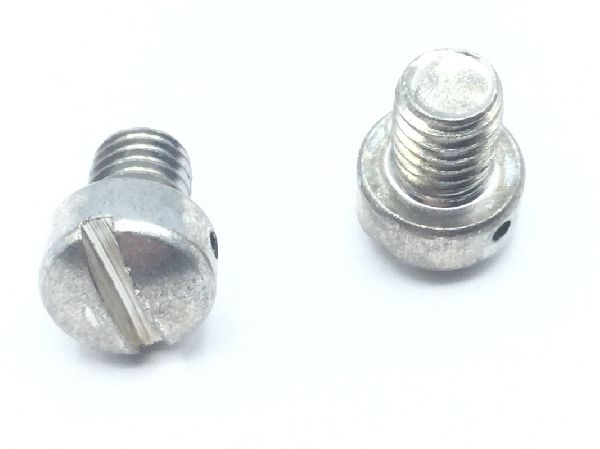

AN501A10-4 Machine Screw

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $2.20

Units per Pack 20

Price per Pack $44.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $44.00

Add item to quote

Head Style

Fillister

Thread Class

Fastener Length: Between 0.219 inches and 0.250 inches
Head Height: Between 0.123 inches and 0.130 inches
Internal Drive Style: Slot
Min. Tensile Strength (psi): 60000 pounds per square inch
Nondefinitive Specification/std Data: 1 type and 5s style
Screw Material: Steel
Screw Surface Treatment: Cadmium
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.219 inches and 0.250 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.292 inches and 0.313 inches
