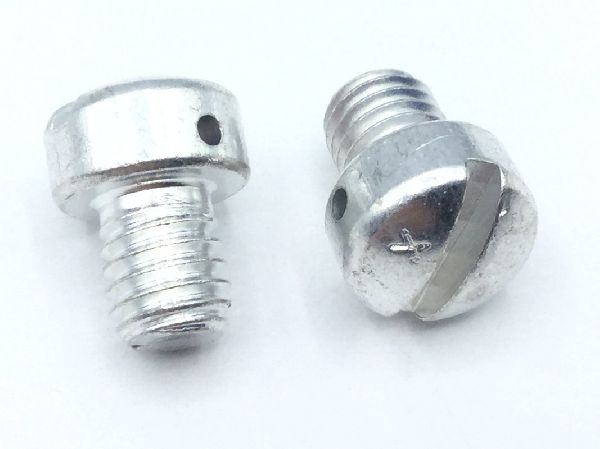

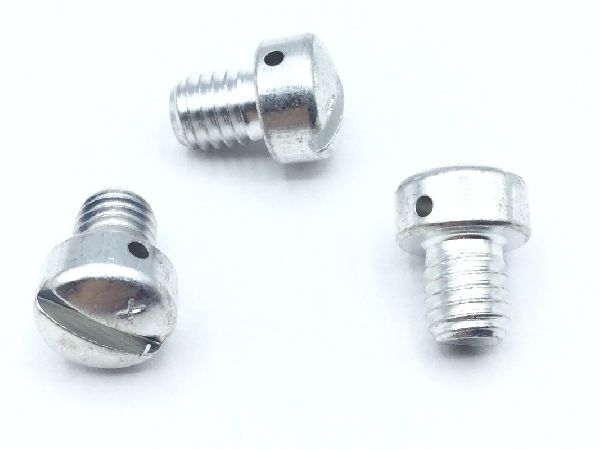

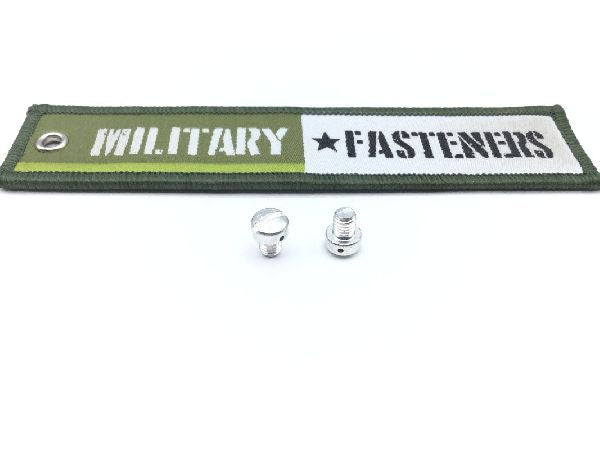

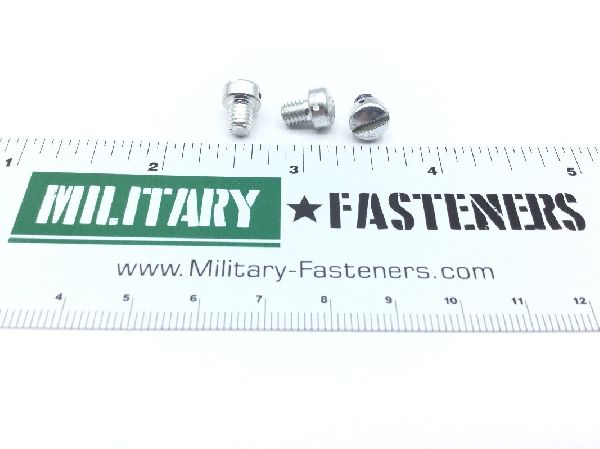

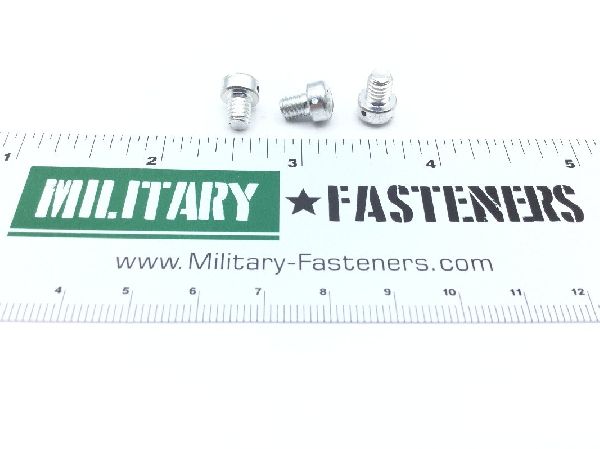

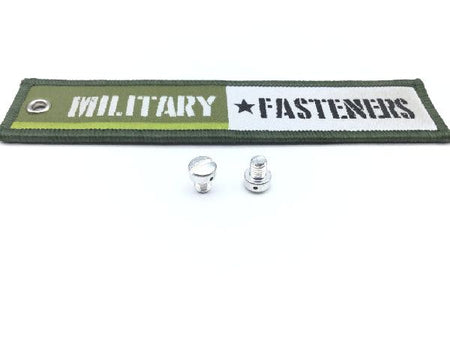

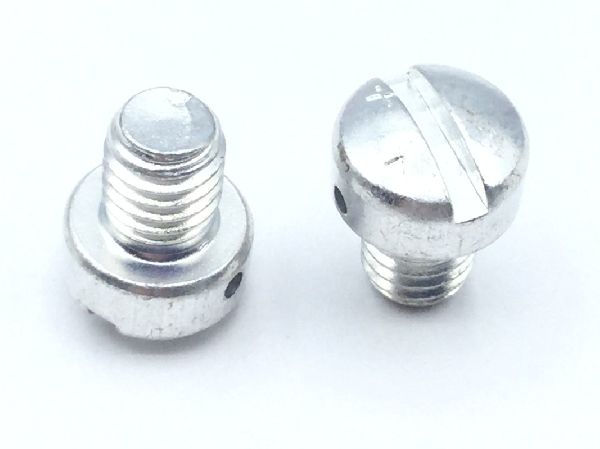

AN502-10-4 Machine Screw
- Product Series
- AN
- ECCN
- EAR99
- Schedule
- 7318.15.9000
Unit of Measure:
EA
Add to Quote
We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.
Add to QuoteCouldn't load pickup availability
- Fastener Length
- Between 0.219 inches and 0.250 inches
- Hardness Rating
- Between 26.0 rockwell c and 32.0 rockwell c
- Head Height
- Between 0.123 inches and 0.130 inches
- Head Hole Configuration Style
- Round
- Hole Quantity
- 1
- Internal Drive Style
- Slot
- Min. Tensile Strength (psi)
- 125000 pounds per square inch
- Screw Material
- Steel comp 8630
- Screw Material Specification
- Mil-s-6050 military specification single material response or an-s-9 military standard single material response
- Screw Surface Treatment
- Cadmium
- Screw Surface Treatment Specification
- Cl 3 federal specification single treatment response type 1 qq-p-416
- Thread Diameter
- 0.190 inches
- Thread Direction
- Right-hand
- Thread Length
- Between 0.156 inches and 0.219 inches
- Thread Qty Per Inch (tpi)
- 32
- Thread Series Designator
- Unf (fine thread)
- Head Diameter
- Between 0.292 inches and 0.313 inches
- Hole Diameter
- 0.046 inches
