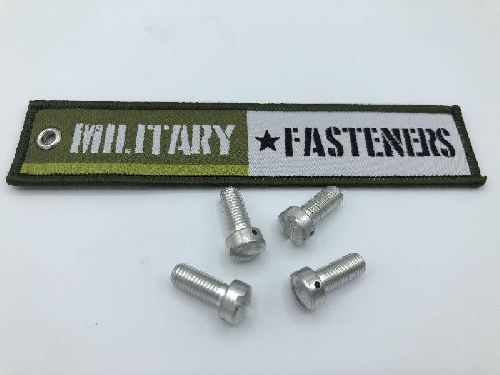

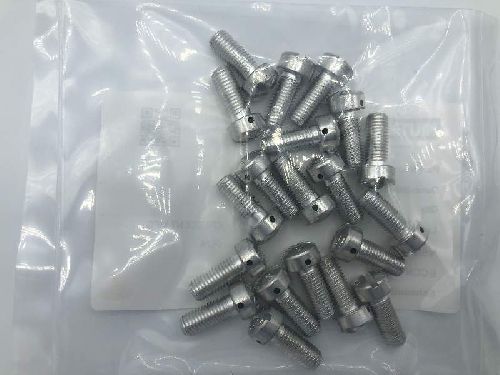

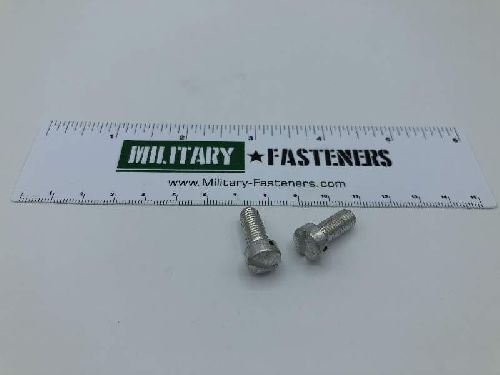

AN502-416-10 Machine Screw
- Product Series
- AN
- ECCN
- EAR99
- Schedule
- 7318.15.9000
Unit of Measure:
EA
Add to Quote
We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.
Add to QuoteCouldn't load pickup availability
- Fastener Length
- 0.625 inches
- Hardness Rating
- Between 26.0 rockwell c and 32.0 rockwell c
- Head Height
- Between 0.161 inches and 0.170 inches
- Head Hole Configuration Style
- Round
- Hole Quantity
- 1
- Internal Drive Style
- Cross recess type 1
- Min. Tensile Strength (psi)
- 125000 pounds per square inch
- Screw Material
- Steel
- Screw Material Specification
- Mil-s-6050 military specification single material response or an-s-9 military standard single material response
- Screw Surface Treatment
- Cadmium
- Screw Surface Treatment Specification
- Class 3 federal specification single treatment response type 1 qq-p-416
- Thread Diameter
- 0.250 inches
- Thread Direction
- Right-hand
- Thread Length
- Between 0.445 inches and 0.579 inches
- Thread Qty Per Inch (tpi)
- 28
- Thread Series Designator
- Unf (fine thread)
- Head Diameter
- Between 0.389 inches and 0.414 inches
- Hole Diameter
- 0.062 inches
