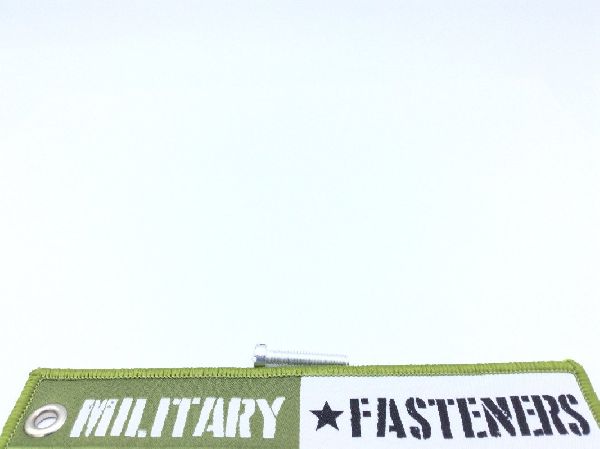

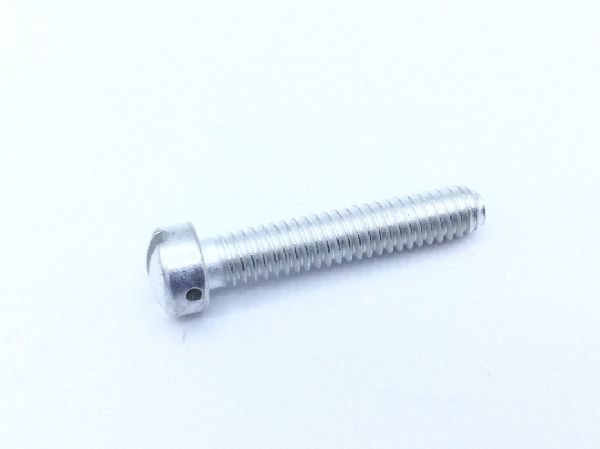

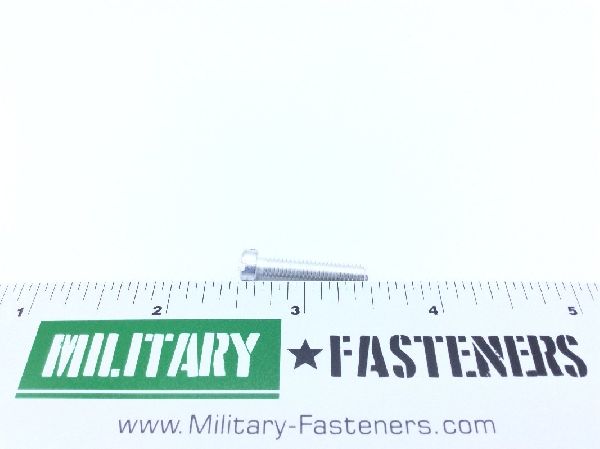

AN503-8-14 Machine Screw
- Product Series
- AN
- ECCN
- EAR99
- Schedule
- 7318.15.9000
Unit of Measure:
EA
Add to Quote
We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.
Add to QuoteCouldn't load pickup availability
- Fastener Length
- 0.875 inches
- Hardness Rating
- Between 26.0 rockwell c and 32.0 rockwell c
- Head Height
- Between 0.106 inches and 0.113 inches
- Head Hole Configuration Style
- Round
- Hole Quantity
- 1
- Internal Drive Style
- Cross recess type 1
- Min. Tensile Strength (psi)
- 125000 pounds per square inch
- Screw Material
- Steel comp 8630
- Screw Material Specification
- Mil-s-6050 military specification single material response or an-s-9 military standard single material response
- Screw Surface Treatment
- Cadmium
- Screw Surface Treatment Specification
- Cl 3 federal specification single treatment response type 1 qq-p-416
- Thread Diameter
- 0.164 inches
- Thread Direction
- Right-hand
- Thread Length
- Between 0.719 inches and 0.844 inches
- Thread Qty Per Inch (tpi)
- 32
- Thread Series Designator
- Unc (coarse thread)
- Head Diameter
- Between 0.250 inches and 0.270 inches
- Hole Diameter
- 0.046 inches
