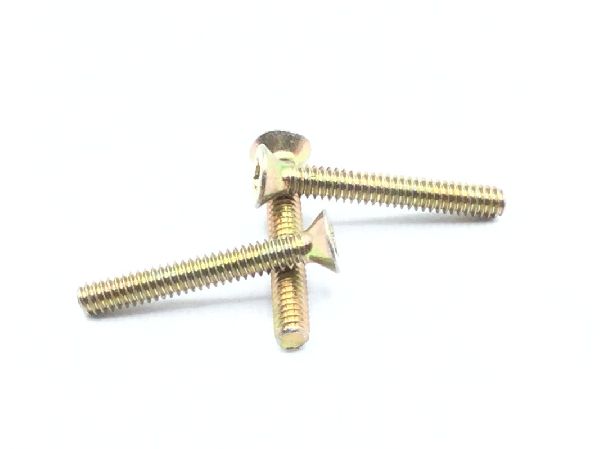

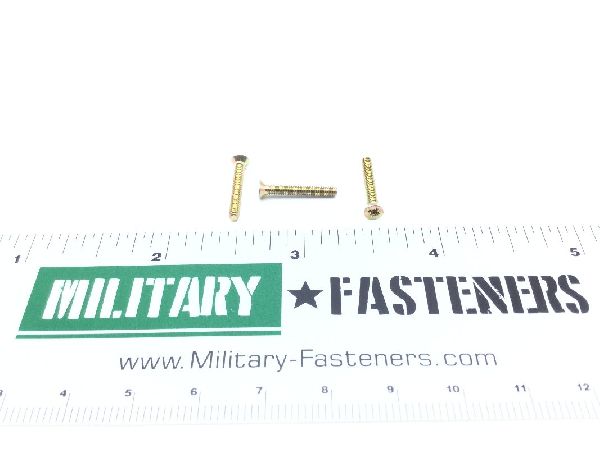

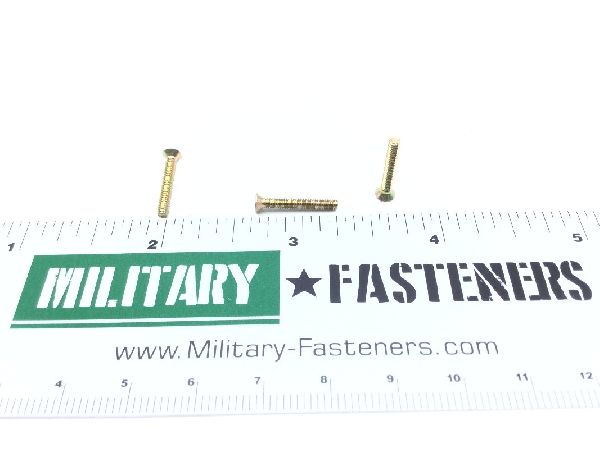

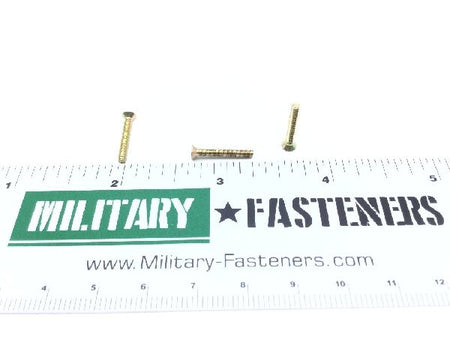

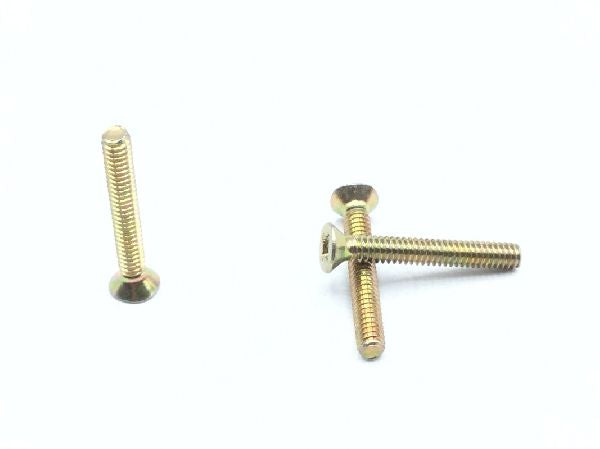

AN505-2R10 Machine Screw

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.20

Units per Pack 100

Price per Pack $20.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $20.00

Add item to quote

Head Style

Flat countersunk

Material

Steel comp

Surface Treatment

Qq-p-416 type 1 class 3 federal specification single treatment response

Thread Class

Countersink Angle: Between 80.0 degrees and 82.0 degrees
Fastener Length: Between 0.594 inches and 0.625 inches
Internal Drive Style: Cross recess type 1
Material Specification: Qq-s-671 federal specification single material response
Min. Tensile Strength (psi): 55000 pounds per square inch
Thread Diameter: 0.086 inches
Thread Direction: Right-hand
Thread Length: Between 0.566 inches and 0.589 inches
Thread Qty Per Inch (tpi): 56
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.156 inches and 0.172 inches
