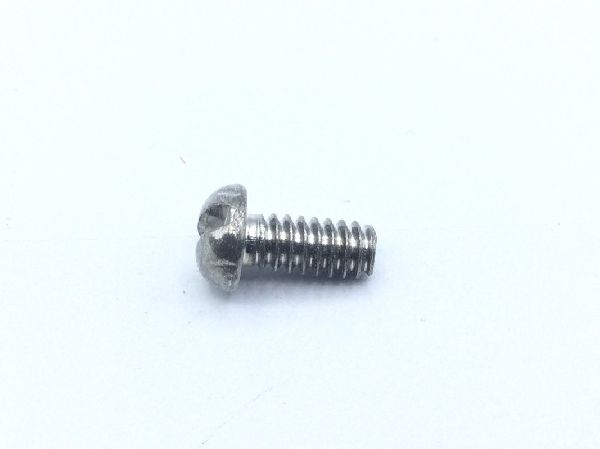

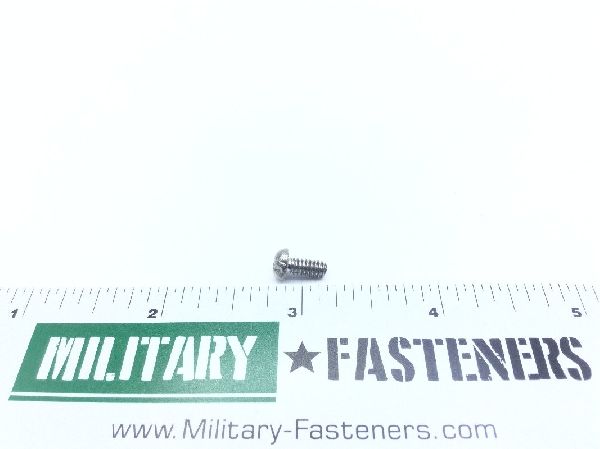

AN508-6-5 Machine Screw

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $4.71

Units per Pack 10

Price per Pack $47.10

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $47.10

Add item to quote

Head Style

Round

Thread Class

Fastener Length: 0.312 inches
Head Height: Between 0.091 inches and 0.103 inches
Internal Drive Style: Slot
Screw Material: Copper alloy
Screw Material Specification: Qq-b-611-canc federal specification single material response
Screw Surface Treatment: Cadmium
Thread Diameter: 0.138 inches
Thread Direction: Right-hand
Thread Length: 0.312 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.240 inches and 0.260 inches
