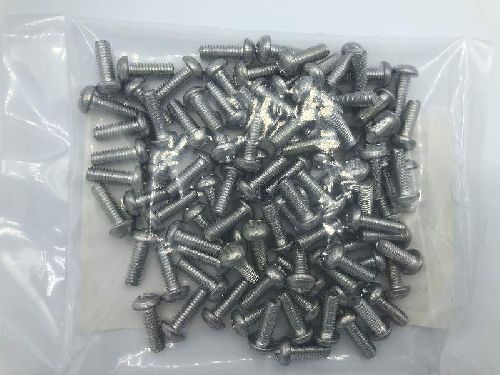

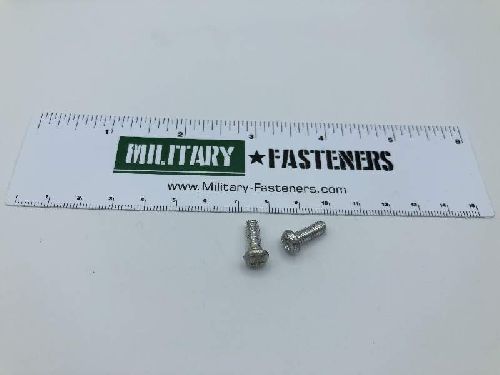

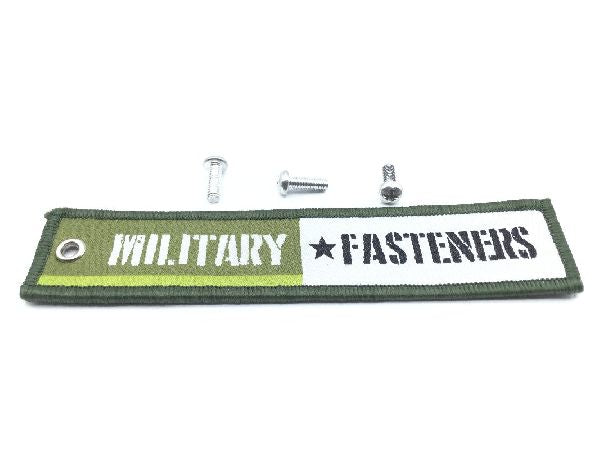

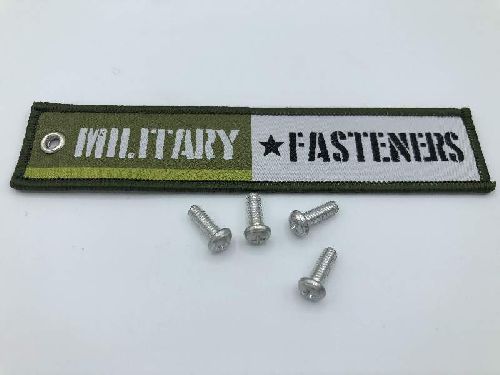

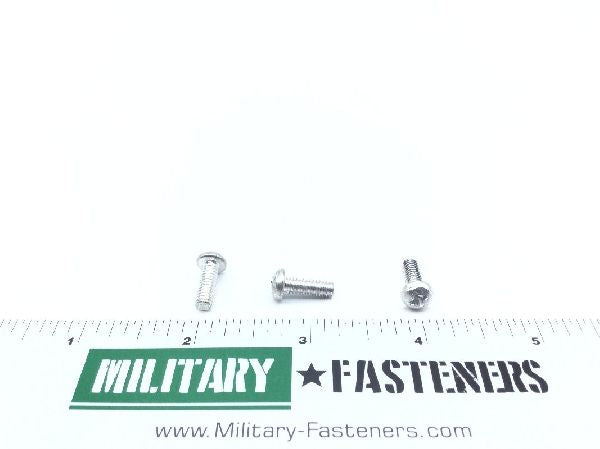

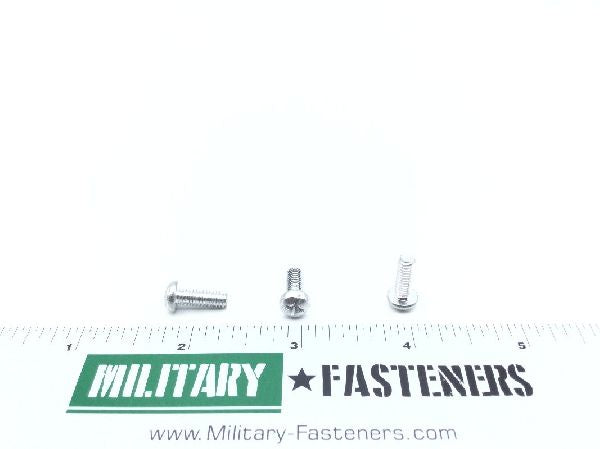

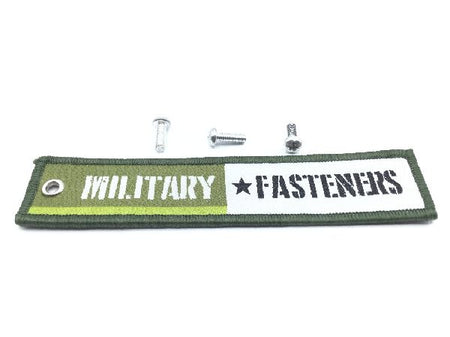

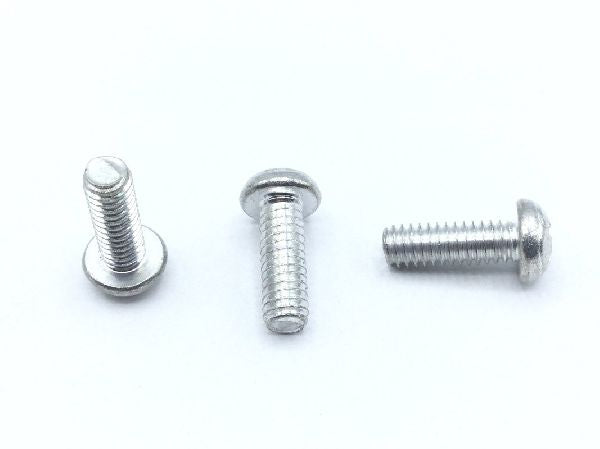

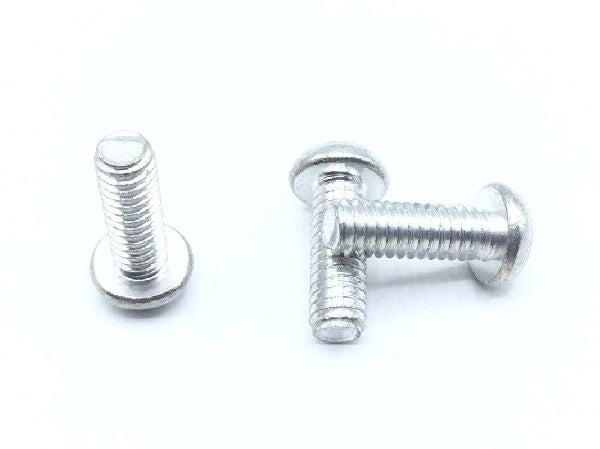

AN515-8R8 Machine Screw

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2091

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Round

Thread Class

Fastener Length: Between 0.469 inches and 0.500 inches
Head Height: 0.120 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 60000 pounds per square inch
Nondefinitive Specification/std Data: 3 type and 1c style
Screw Material: Steel comp 1010
Screw Material Specification: Qq-s-633 federal specification single material response
Screw Surface Treatment: Cadmium
Screw Surface Treatment Specification: Class 3 federal specification single treatment response type 2 qq-p-416
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: Between 0.469 inches and 0.500 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.287 inches and 0.309 inches
