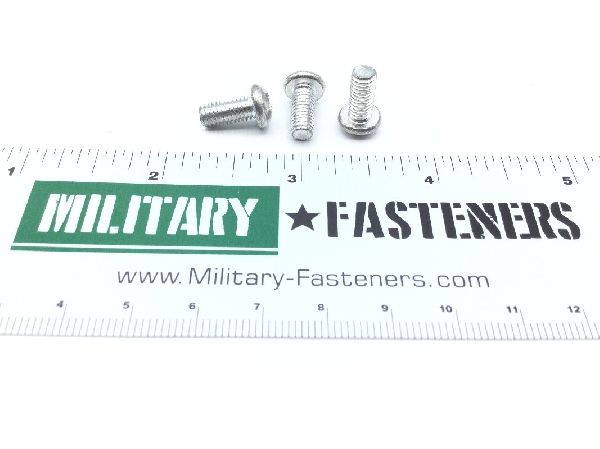

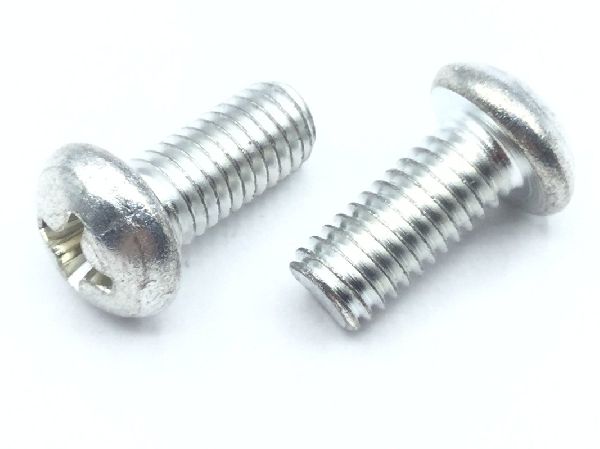

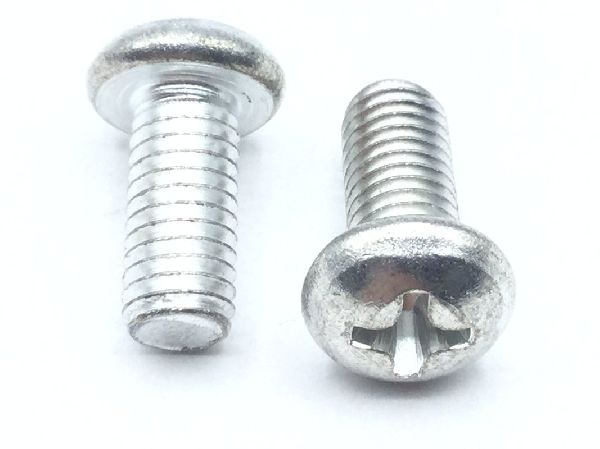

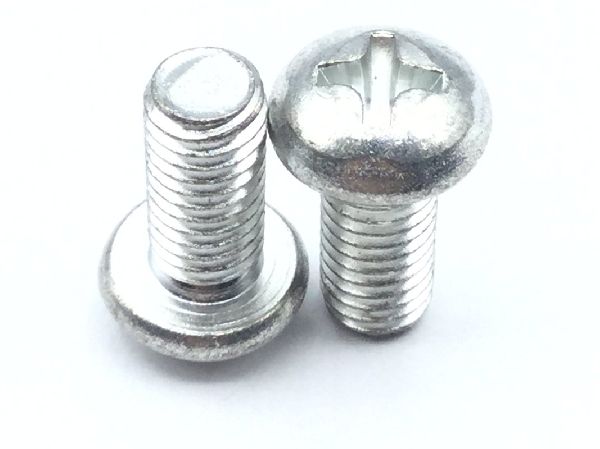

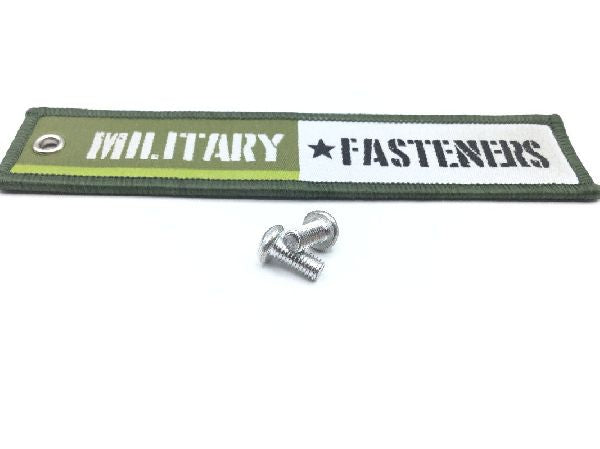

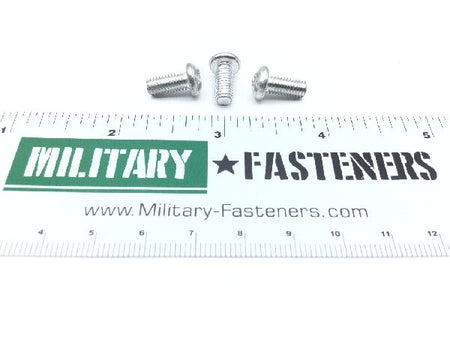

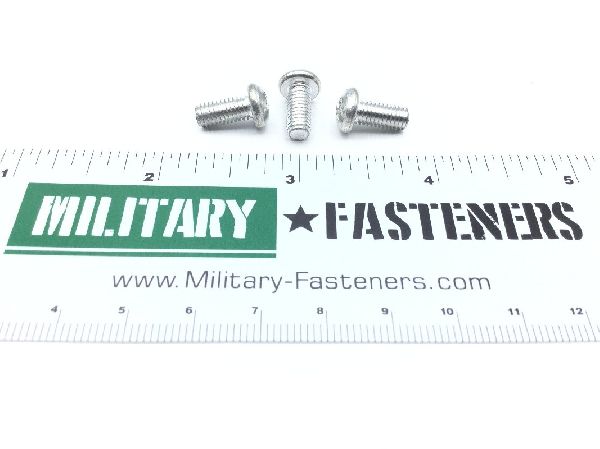

AN520-10R7 Machine Screw

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.30

Units per Pack 100

Price per Pack $30.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $30.00

Add item to quote

Head Style

Round

Thread Class

Fastener Length: 0.438 inches
Head Height: 0.137 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 55000 pounds per square inch
Nondefinitive Specification/std Data: 3 type and 1 design and 1c style
Screw Material: Steel comp 1010
Screw Material Specification: Qq-s-633-canceled federal specification single material response
Screw Surface Treatment: Cadmium
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.438 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.334 inches and 0.359 inches
