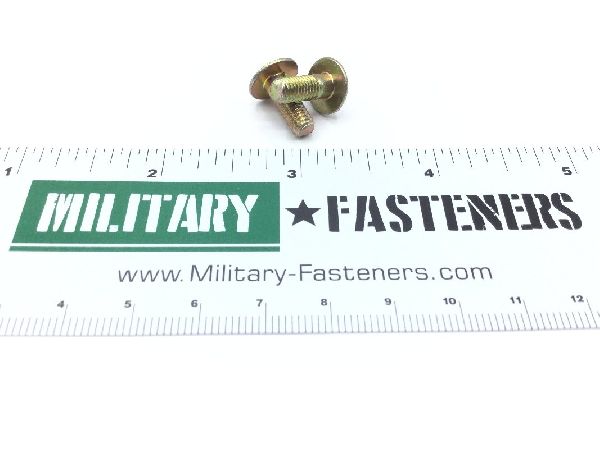

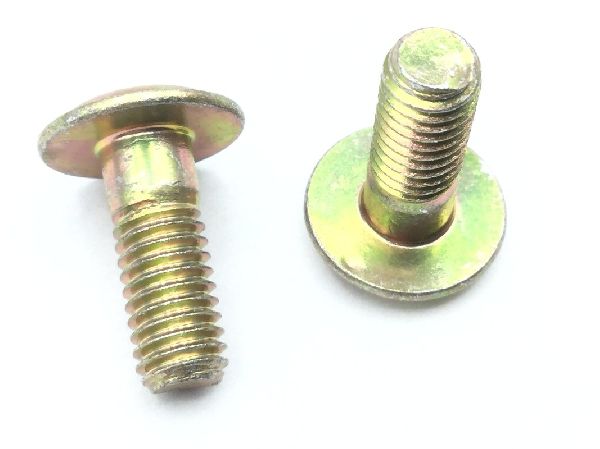

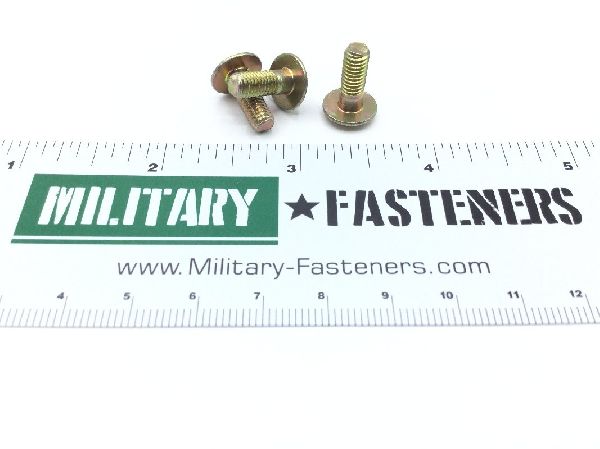

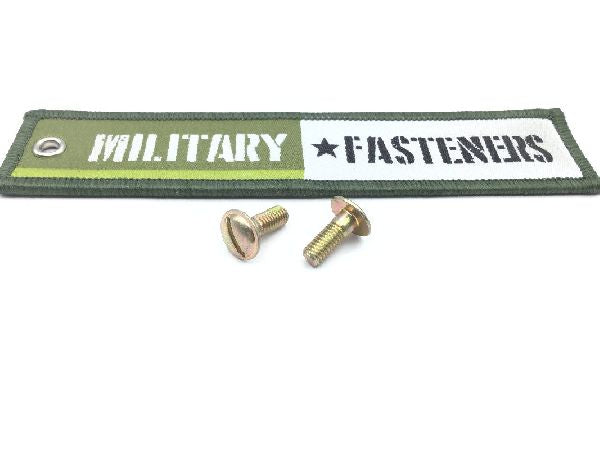

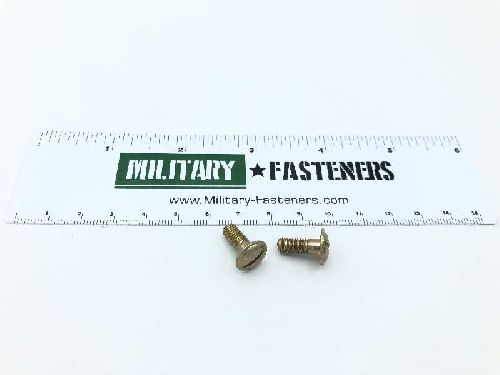

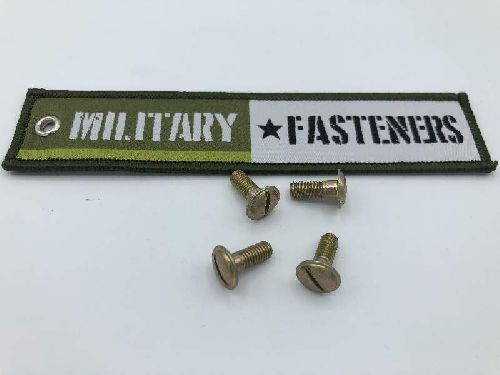

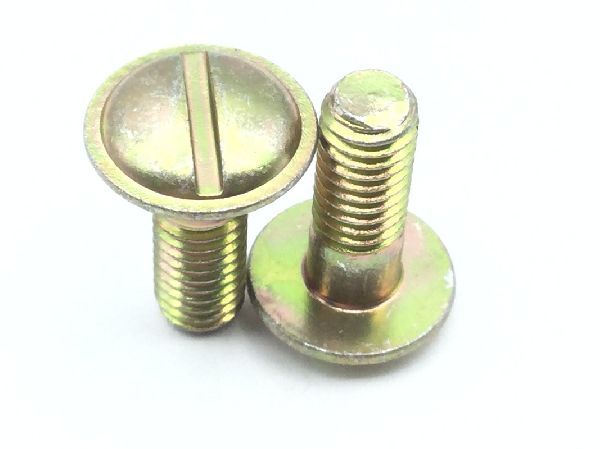

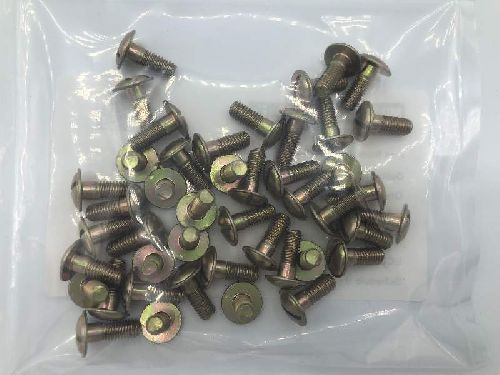

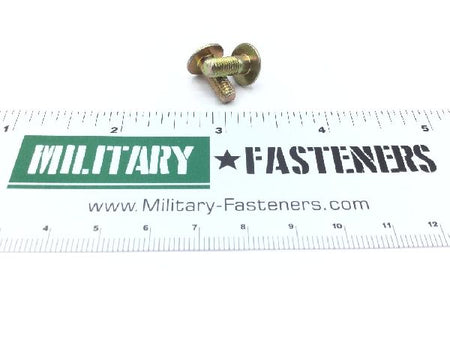

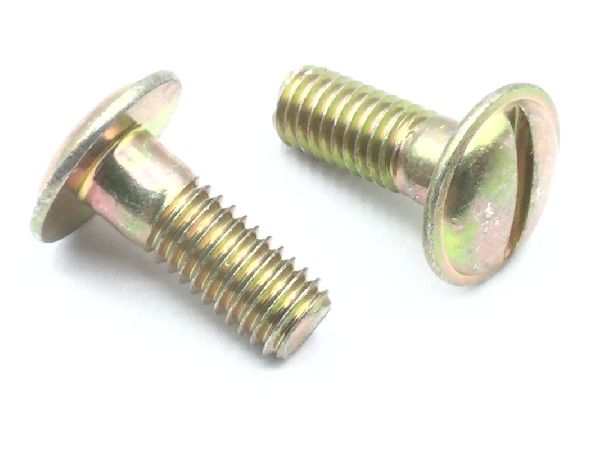

AN525-10-8 Machine Screw

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.69

Units per Pack 50

Price per Pack $34.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $34.50

Add item to quote

Head Style

Round extended washer

Thread Class

Extended Washer Diameter: 0.437 inches
Extended Washer Thickness: 0.025 inches
Fastener Length: 0.50 inches
Head Height: 0.094 inches
Internal Drive Style: Slot
Min. Tensile Strength (psi): 125000 pounds per square inch
Screw Material: Steel
Screw Surface Treatment: Cadmium or zinc
Screw Surface Treatment Specification: Qq-p-416 federal specification 1st treatment response or qq-z-325 federal specification 2nd treatment response
Thread Diameter: 0.19 inches
Thread Direction: Right-hand
Thread Length: 0.375 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Head Diameter: 0.375 inches
