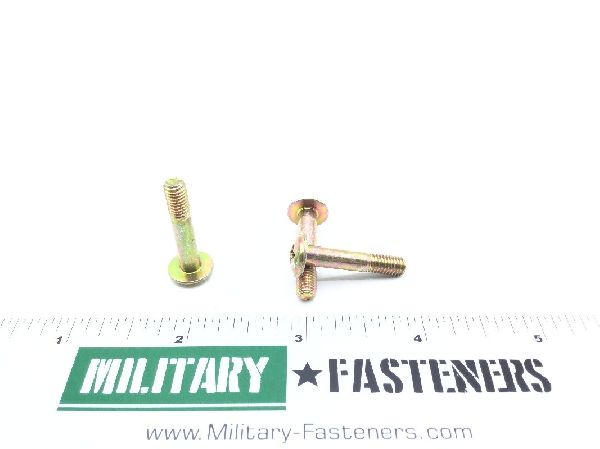

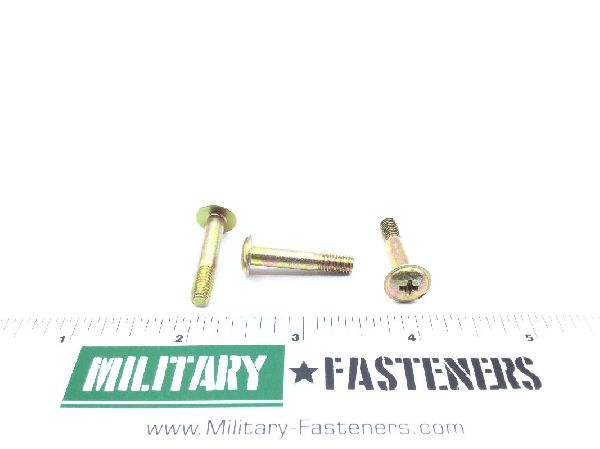

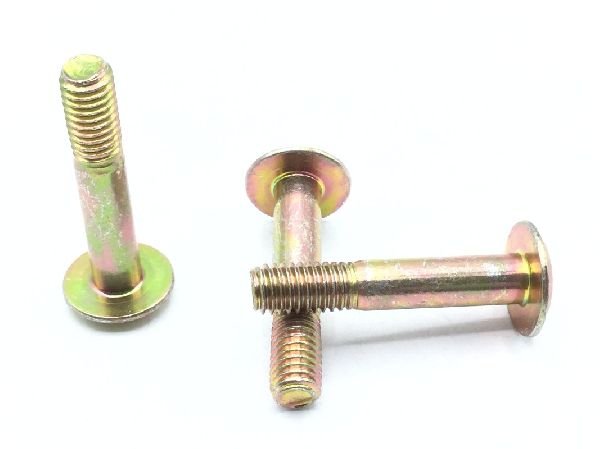

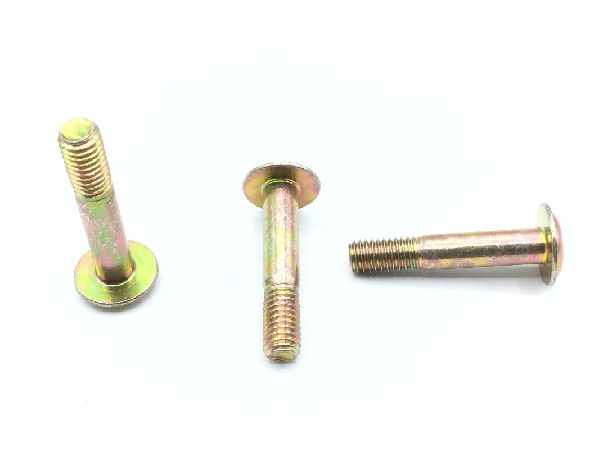

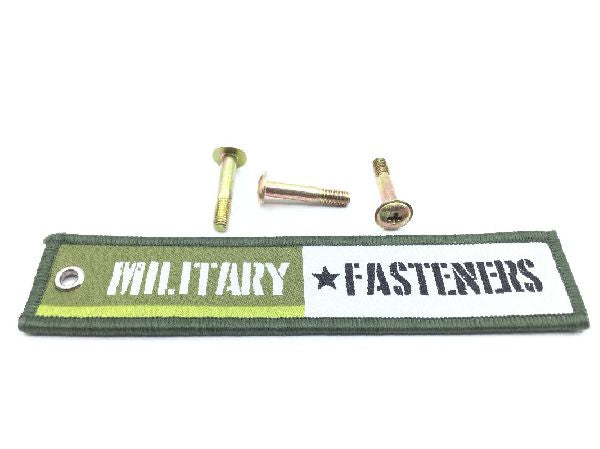

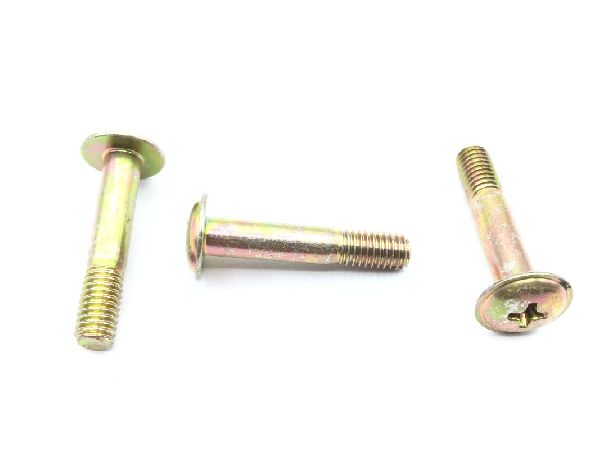

AN525-10R16 Machine Screw

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.9000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Round extended washer

Thread Class

Extended Washer Diameter: 0.437 inches
Extended Washer Thickness: 0.030 inches
Fastener Length: Between 0.969 inches and 1.031 inches
Head Height: Between 0.089 inches and 0.099 inches
Internal Drive Style: Slot
Screw Material: Steel comp 2330
Screw Material Specification: An-qq-s-689 cancelled federal specification single material response
Screw Surface Treatment: Cadmium or zinc
Screw Surface Treatment Specification: An-p-61 cancelled federal specification 1st treatment response or an-p-32 cancelled federal specification 2nd treatment response
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.344 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Head Diameter: 0.375 inches
