Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

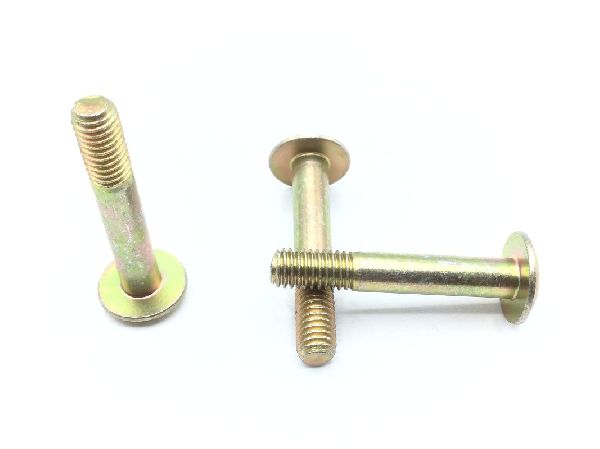

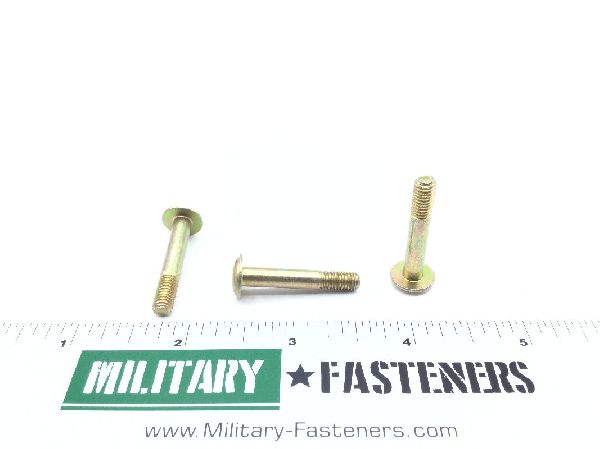

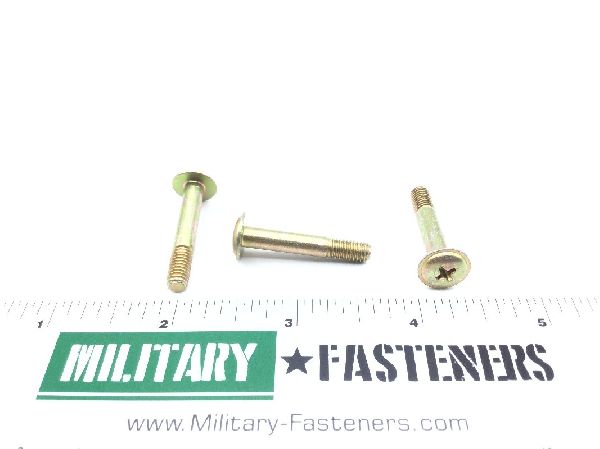

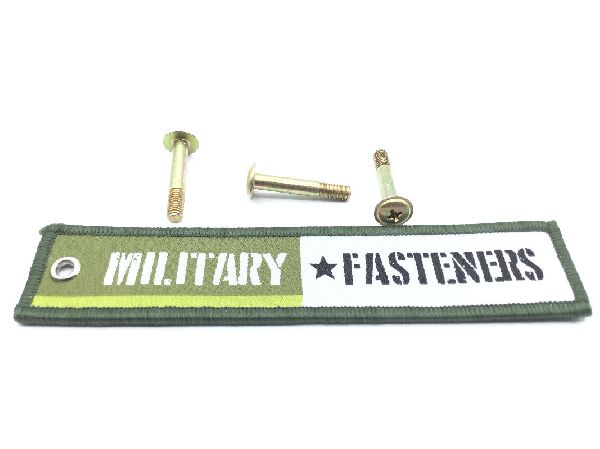

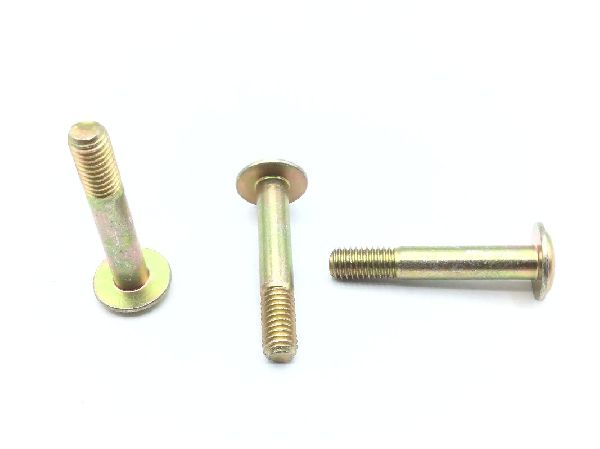

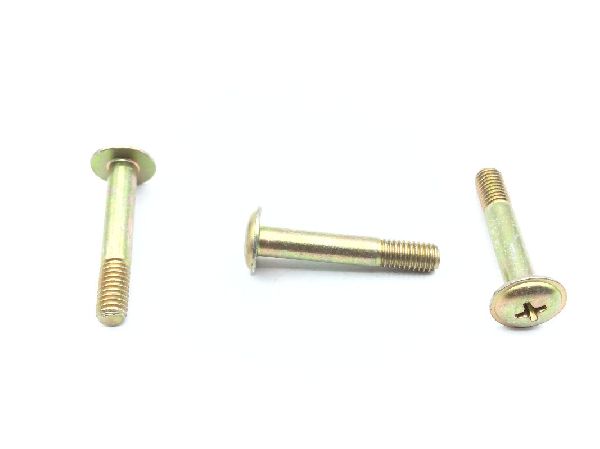

AN525-10R18 Machine Screw

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.74

Units per Pack 50

Price per Pack $37.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $37.00

Add item to quote

Head Style

Round extended washer

Thread Class

Extended Washer Diameter: Between 0.427 inches and 0.447 inches
Extended Washer Thickness: Between 0.025 inches and 0.030 inches
Fastener Length: Between 1.094 inches and 1.156 inches
Head Height: Between 0.089 inches and 0.099 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 125000 pounds per square inch
Screw Material: Steel comp 8630 or steel comp 4037
Screw Material Specification: Mil-s-6050 military specification 1st material response or ams 6300 assn standard 2nd material response
Screw Surface Treatment: Cadmium or zinc
Screw Surface Treatment Specification: Qq-p-416 federal specification 1st treatment response or qq-z-325 federal specification 2nd treatment response
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.297 inches and 0.453 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.365 inches and 0.385 inches
