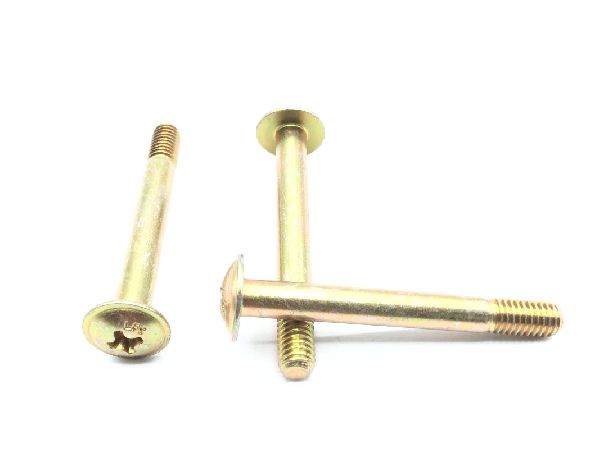

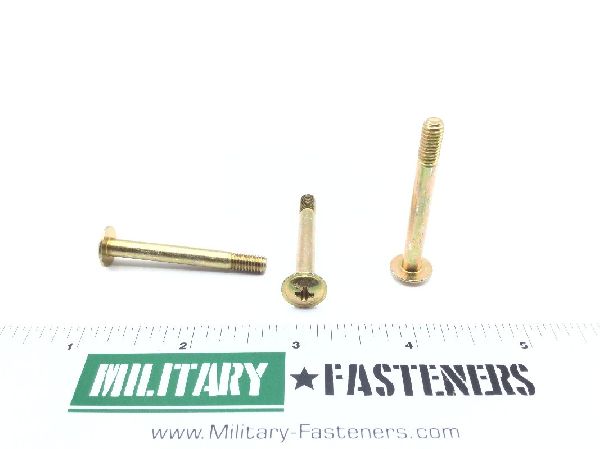

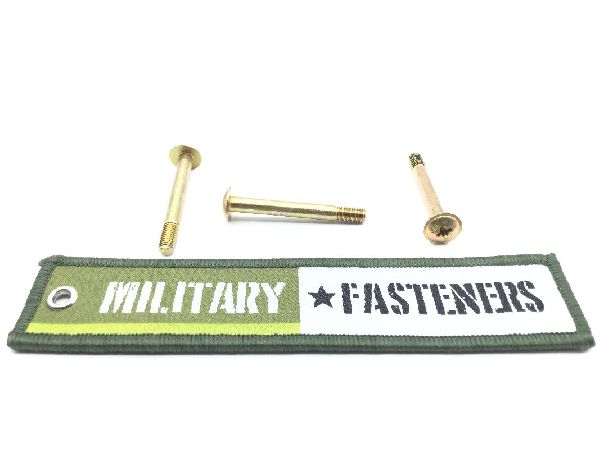

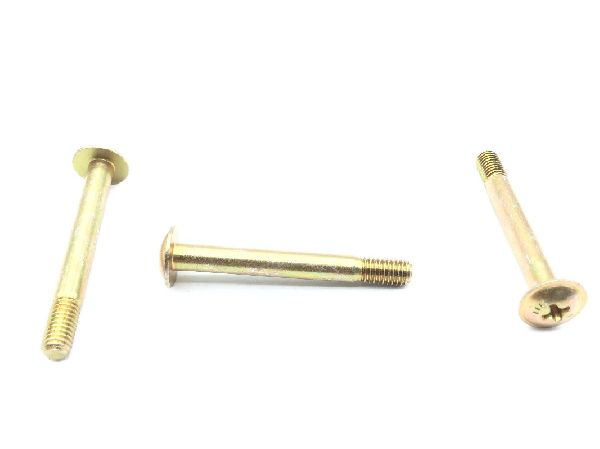

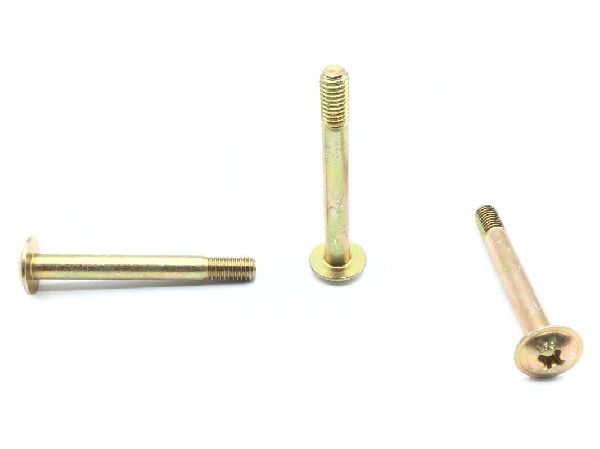

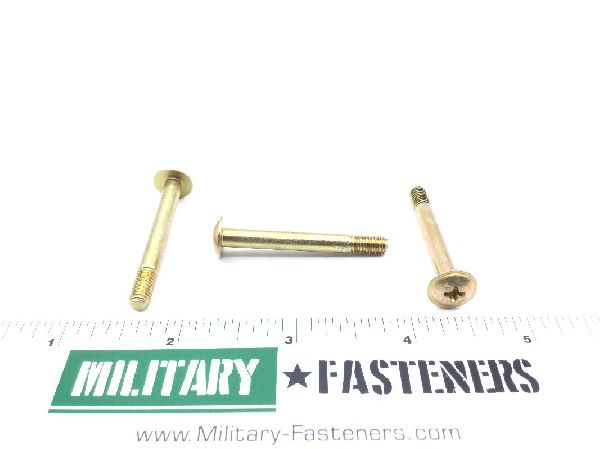

AN525-10R26 Machine Screw

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2091

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Round extended washer

Material

Steel comp 8630 or steel comp 4037

Surface Treatment

Qq-p-416 federal specification 1st treatment response or qq-z-325 federal specification 2nd treatment response

Thread Class

Extended Washer Diameter: Between 0.427 inches and 0.447 inches
Extended Washer Thickness: Between 0.025 inches and 0.030 inches
Fastener Length: Between 1.594 inches and 1.656 inches
Head Height: Between 0.089 inches and 0.099 inches
Internal Drive Style: Cross recess type 1
Material Specification: Mil-s-6050 military specification 1st material response or ams 6300 assn standard 2nd material response
Min. Tensile Strength (psi): 125000 pounds per square inch
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.298 inches and 0.453 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.365 inches and 0.385 inches
