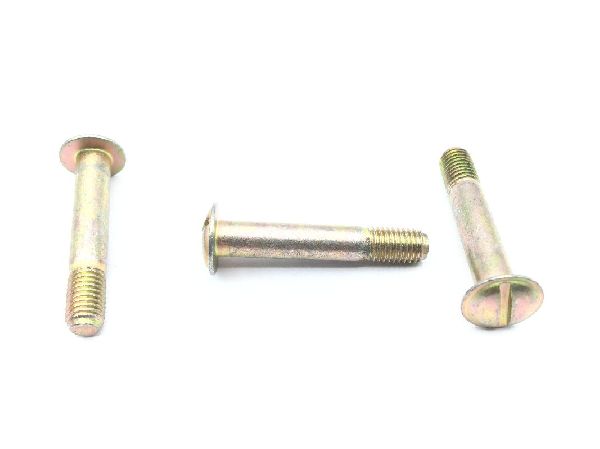

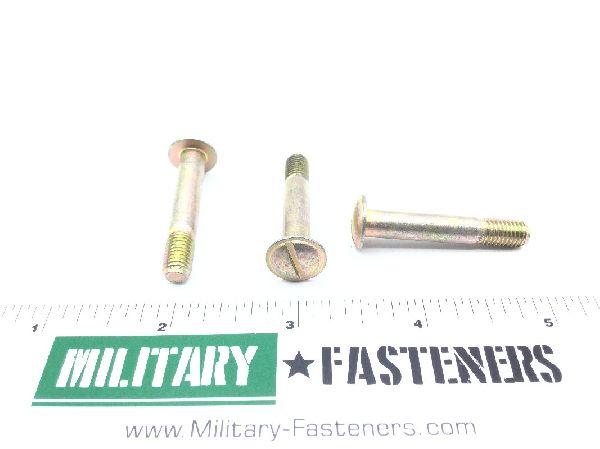

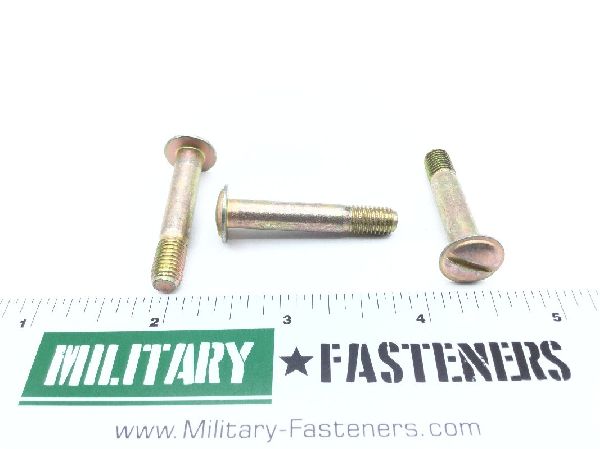

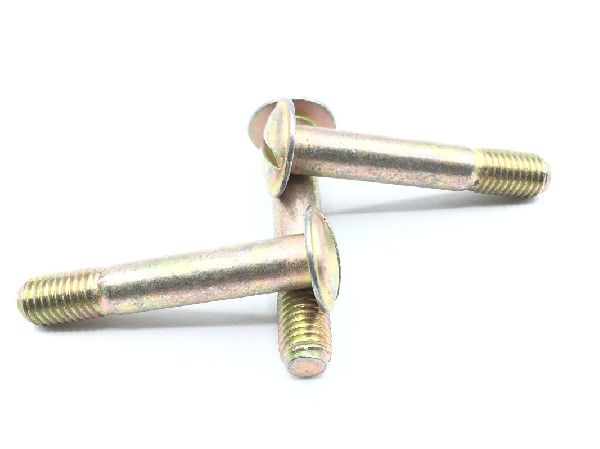

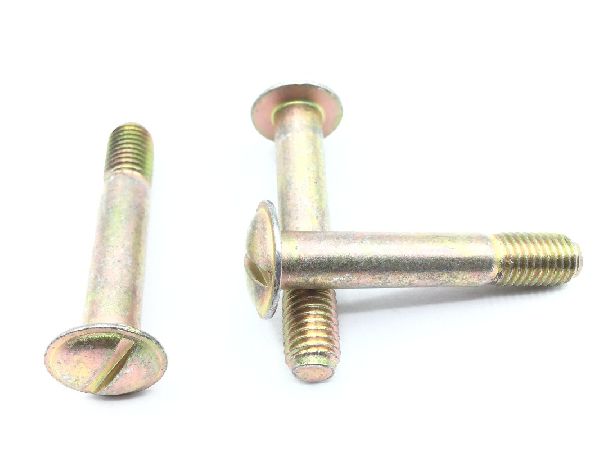

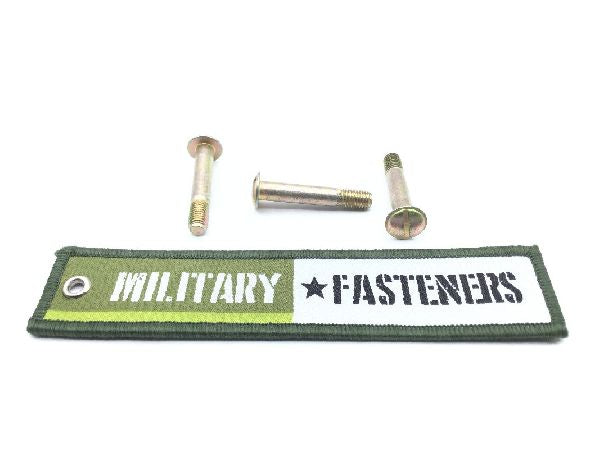

AN525-416-22 Machine Screw

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2091

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Round extended washer

Thread Class

Extended Washer Diameter: Between 0.490 inches and 0.510 inches
Extended Washer Thickness: Between 0.028 inches and 0.033 inches
Fastener Length: Between 1.344 inches and 1.406 inches
Head Height: Between 0.096 inches and 0.106 inches
Internal Drive Style: Slot
Min. Tensile Strength (psi): 125000 pounds per square inch
Screw Material: Steel comp
Screw Material Specification: Mil-s-6050 military specification 1st material response or ams 6300 assn standard 2nd material response
Screw Surface Treatment: Cadmium or zinc
Screw Surface Treatment Specification: Qq-p-416 federal specification 1st treatment response or qq-z-325 federal specification 2nd treatment response
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.289 inches and 0.453 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.427 inches and 0.447 inches
