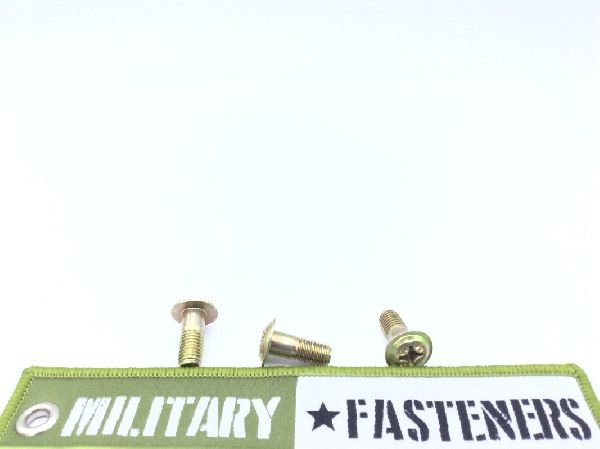

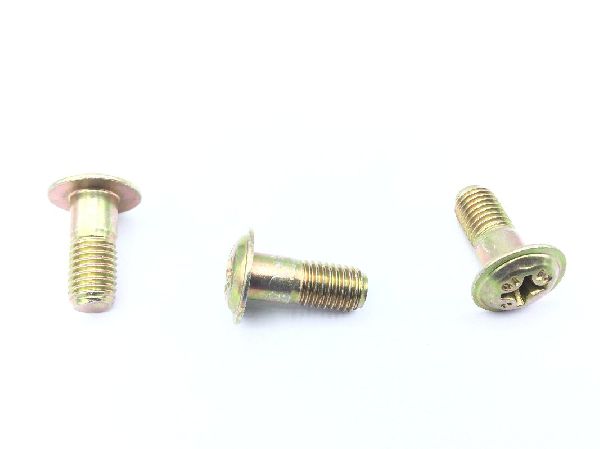

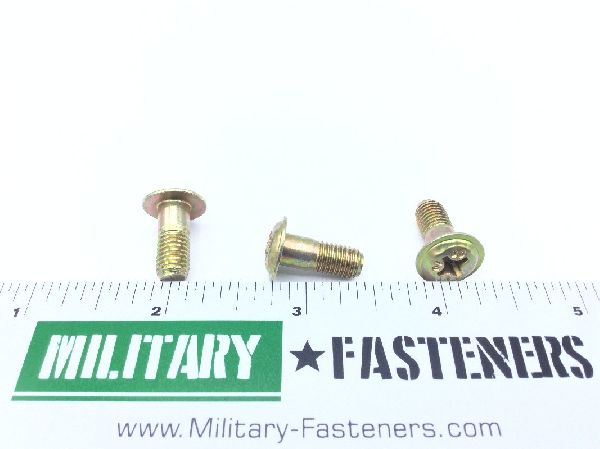

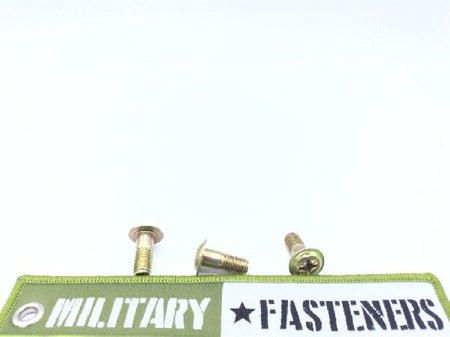

AN525-416R10 Machine Screw

NSN: 5305-00-282-4916
Product Series: AN
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.86

Units per Pack 50

Price per Pack $43.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $43.00

Add item to quote

Head Style

Round extended washer

Material

Steel

Surface Treatment

Qq-p-416 federal specification 1st treatment response or qq-z-325 federal specification 2nd treatment response

Thread Class

Extended Washer Diameter: Between 0.490 in and 0.510 in
Extended Washer Thickness: Between 0.028 in and 0.033 in
Fastener Length: Between 0.594 in and 0.656 in
Head Height: Between 0.096 in and 0.106 in
Internal Drive Style: Cross recess type 1
Material Specification: Mil-s-6050 military specification 1st material response or ams 6300 assn standard 2nd material response
Min. Tensile Strength (psi): 125000 pounds per square inch
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.289 inches and 0.453 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.427 in and 0.447 in
