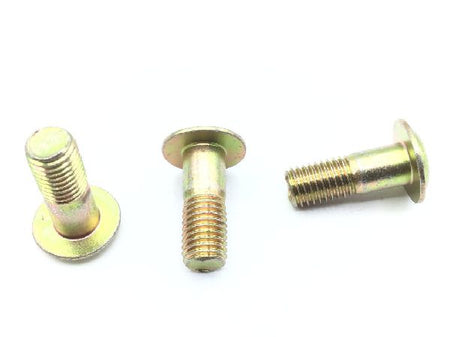

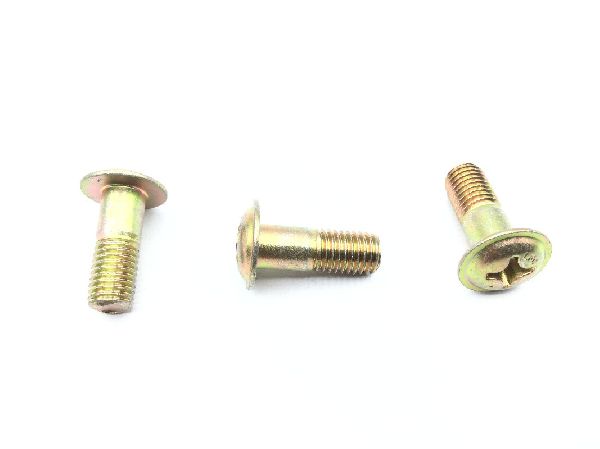

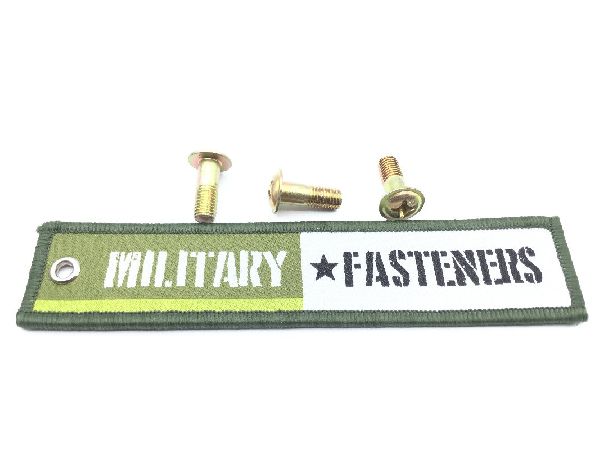

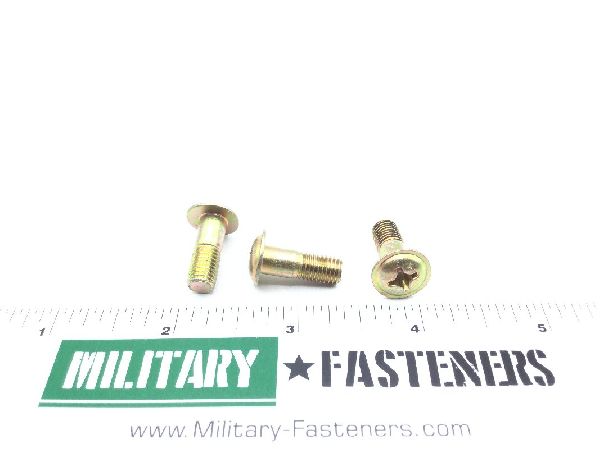

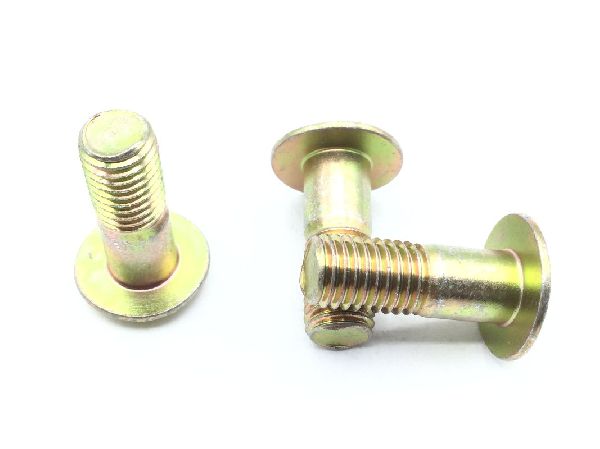

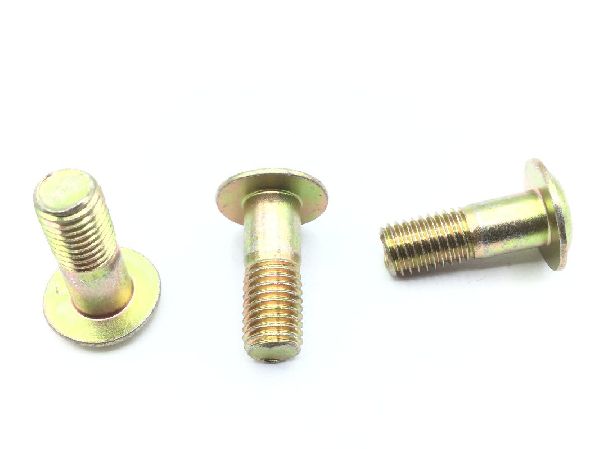

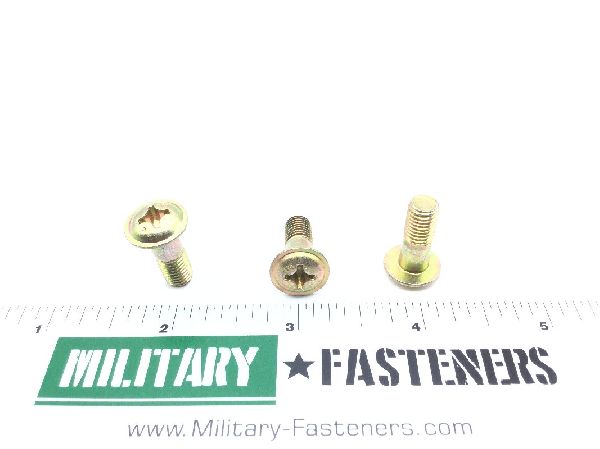

AN525-416R11 Machine Screw

NSN: 5305-00-292-3181
Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.68

Units per Pack 50

Price per Pack $34.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $34.00

Add item to quote

Head Style

Round extended washer

Thread Class

Extended Washer Diameter: 0.500 inches
Extended Washer Thickness: Between 0.028 inches and 0.033 inches
Fastener Length: Between 0.657 inches and 0.719 inches
Head Height: 0.101 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 125000 pounds per square inch
Screw Material: Steel comp 2330
Screw Material Specification: Qq-s-689 federal specification single material response
Screw Surface Treatment: Cadmium or zinc
Screw Surface Treatment Specification: Qq-p-416 federal specification 1st treatment response or qq-z-325 federal specification 2nd treatment response
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: 0.617 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Head Diameter: 0.437 inches
