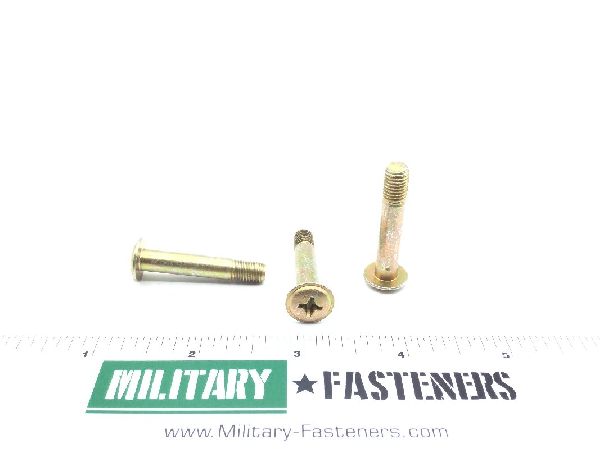

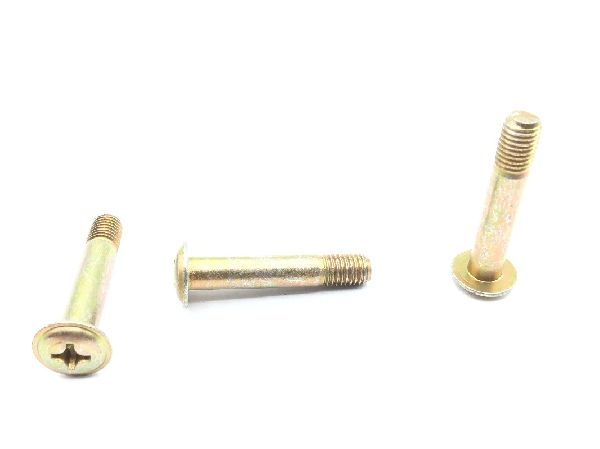

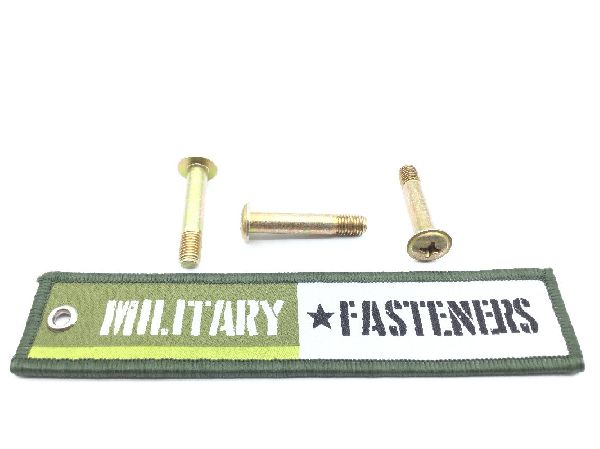

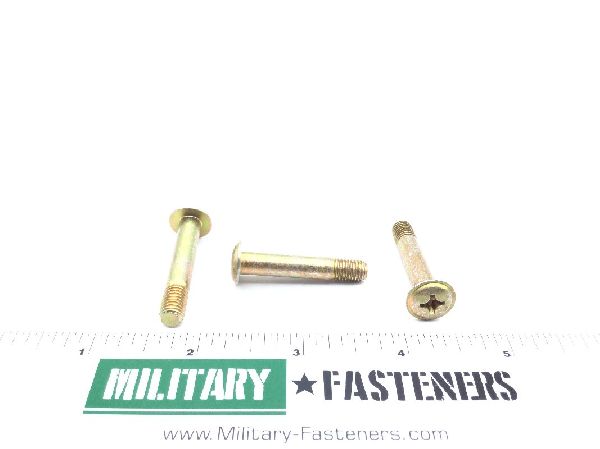

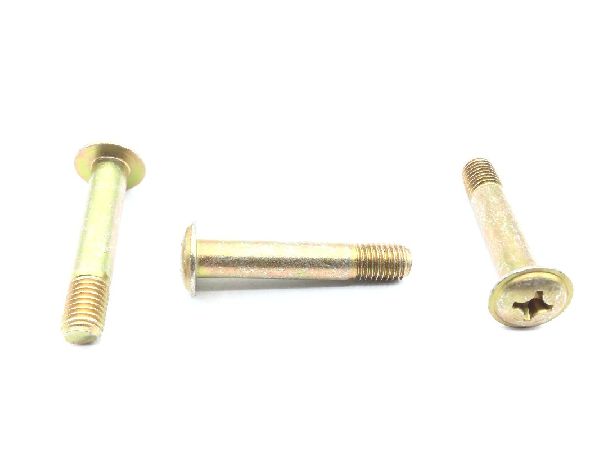

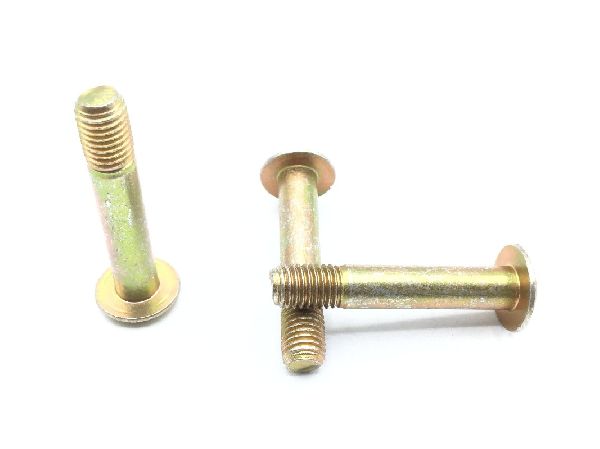

AN525-416R22 Machine Screw

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2091

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Round extended washer

Material

Steel

Thread Class

Extended Washer Diameter: 0.5 inches
Extended Washer Thickness: Between 0.028 inches and 0.033 inches
Fastener Length: Between 1.344 inches and 1.406 inches
Head Height: Between 0.096 inches and 0.106 inches
Internal Drive Style: Cross recess type 1
Material Specification: Qq-s-689 cancelled federal specification single material response
Thread Diameter: 0.25 inches
Thread Direction: Right-hand
Thread Length: 0.406 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Head Diameter: 0.437 inches
