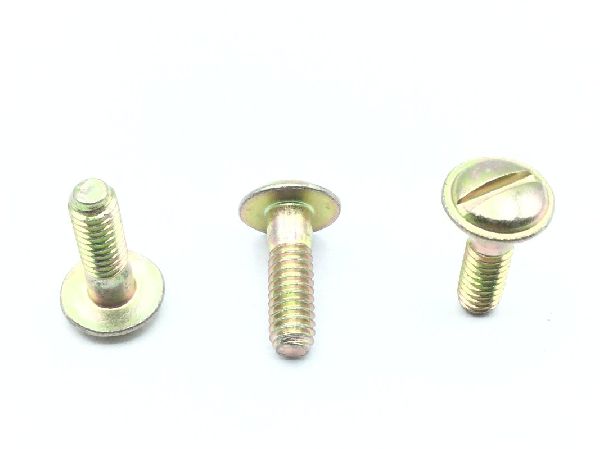

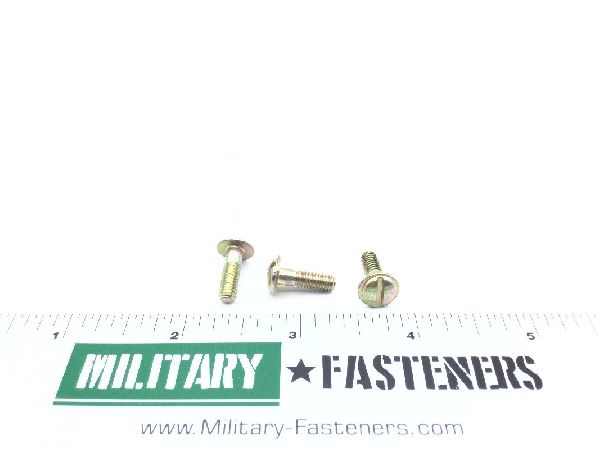

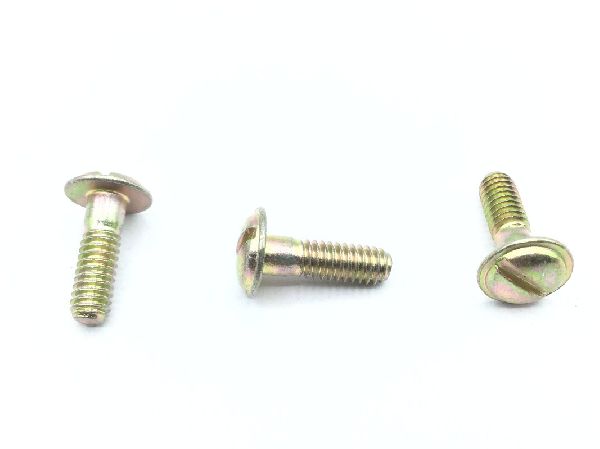

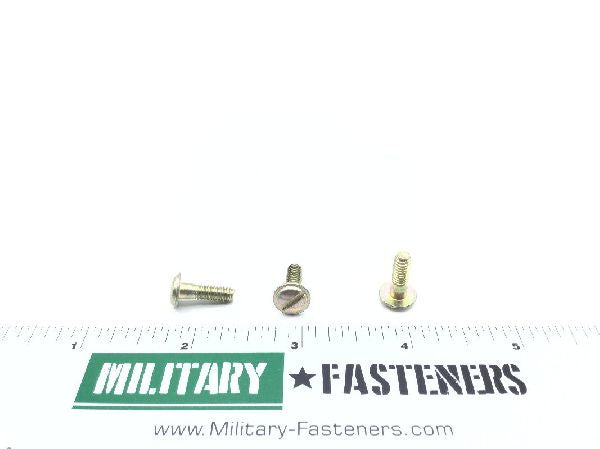

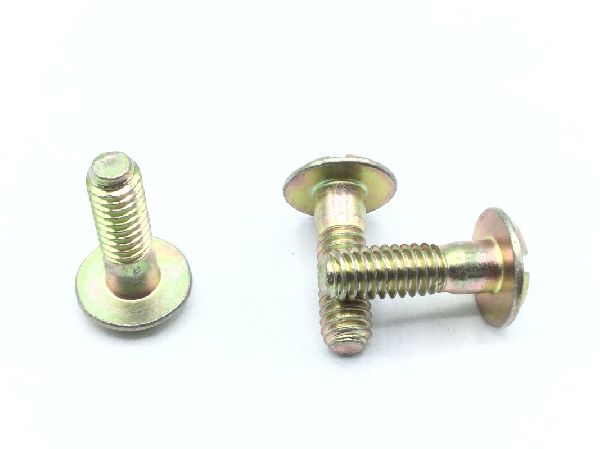

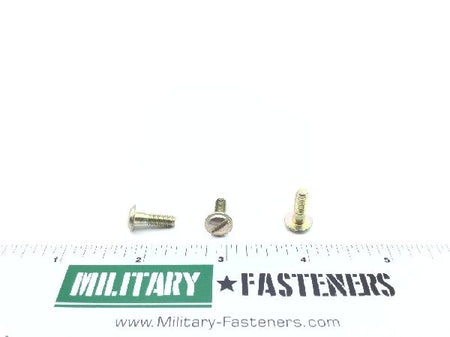

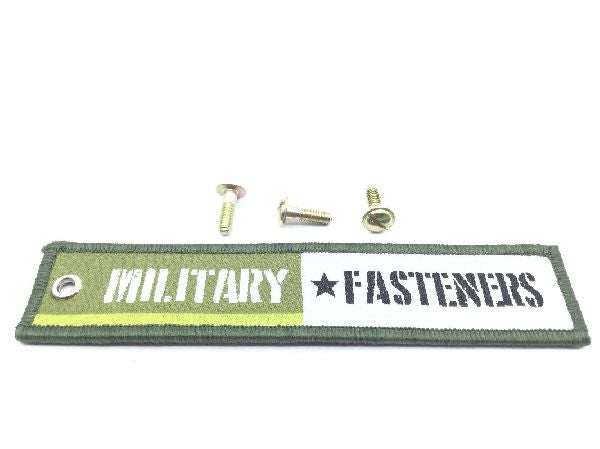

AN525-832-8 Machine Screw

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2091

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Round extended washer

Thread Class

Departure From Cited Designator: As mod by surface treatment
Extended Washer Diameter: 0.375 inches
Extended Washer Thickness: Between 0.023 inches and 0.028 inches
Fastener Length: Between 0.469 inches and 0.531 inches
Head Height: 0.087 inches
Internal Drive Style: Slot
Min. Tensile Strength (psi): 125000 pounds per square inch
Screw Material: Steel comp 2330
Screw Material Specification: Qq-s-689 federal specification single material response
Screw Surface Treatment: Cadmium or zinc
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: 0.313 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: 0.312 inches
