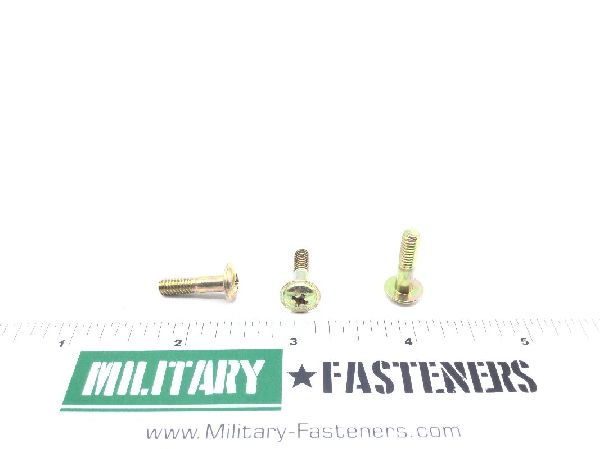

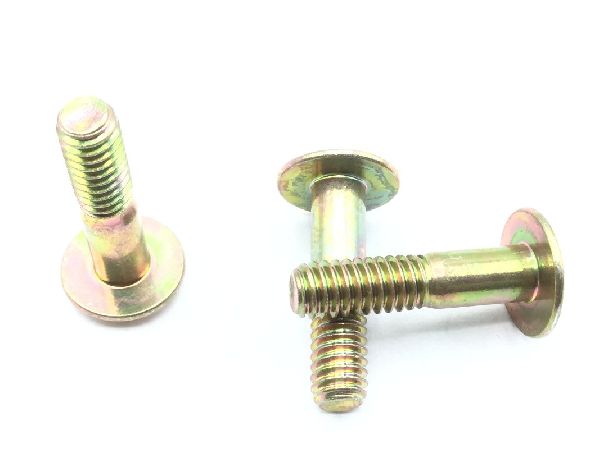

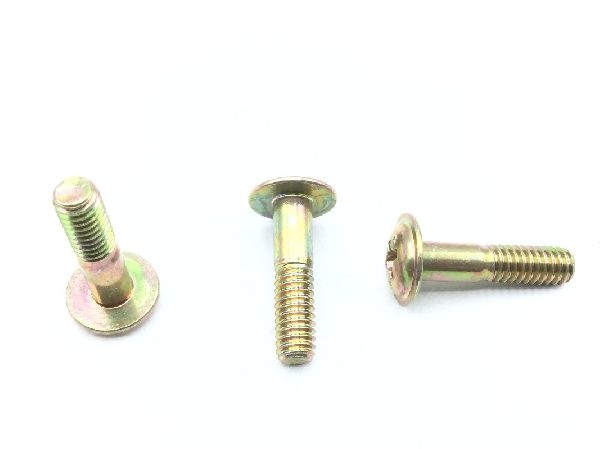

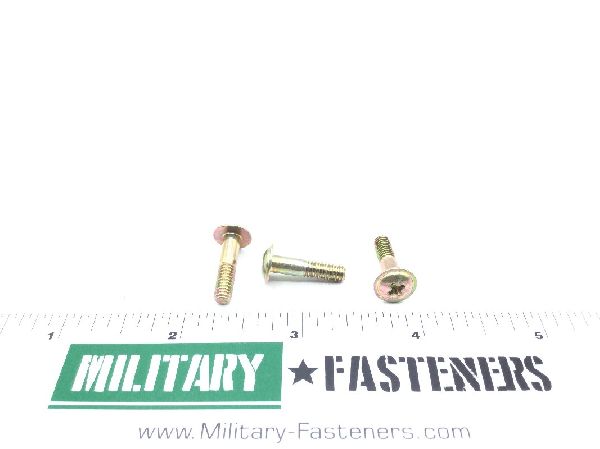

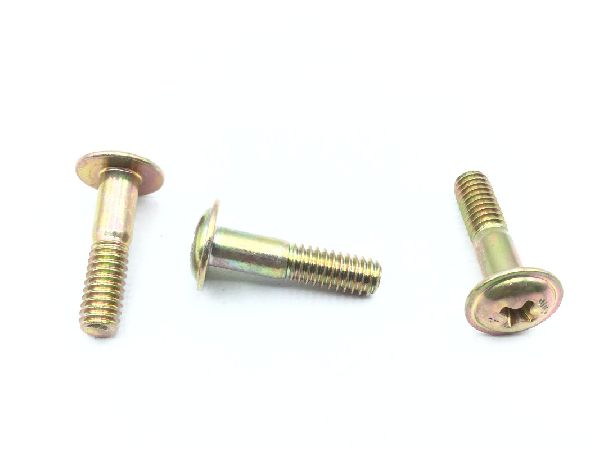

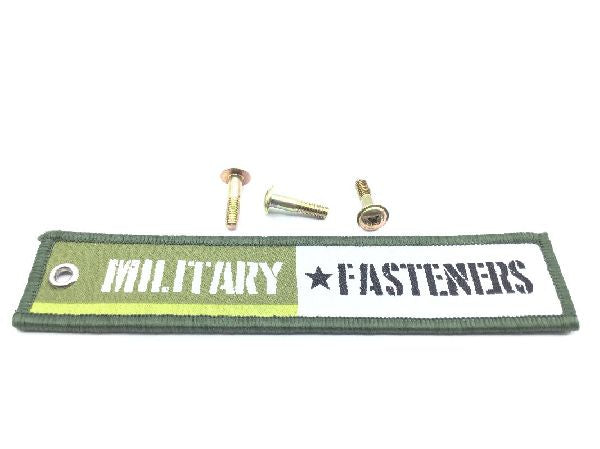

AN525-832R11 Machine Screw

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.48

Units per Pack 100

Price per Pack $48.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $48.00

Add item to quote

Head Style

Fillister extended washer

Thread Class

Extended Washer Diameter: 0.375 inches
Extended Washer Thickness: Between 0.023 inches and 0.028 inches
Fastener Length: 0.406 inches
Hardness Rating: Between 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.082 inches and 0.092 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 125000 pounds per square inch
Screw Material: Steel
Screw Material Specification: Cond c4 /canceled/ federal specification single material response qq-s-689
Screw Surface Treatment: Cadmium and zinc and chromate
Screw Surface Treatment Specification: type 1 federal specification 2nd treatment response an-p-61 /canceled/ assn standard 1st treatment response and tt-p-1757
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: 0.406 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: 0.312 inches
