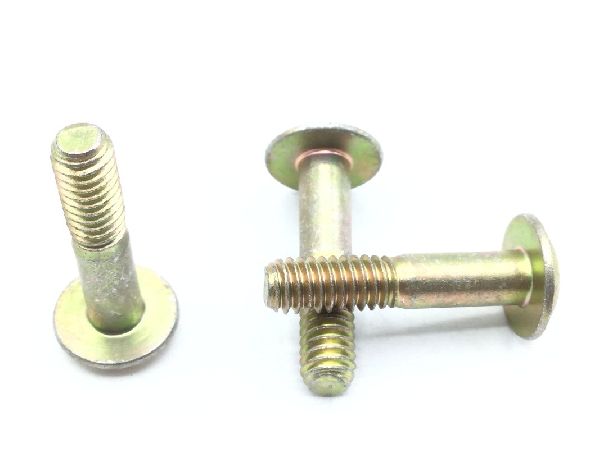

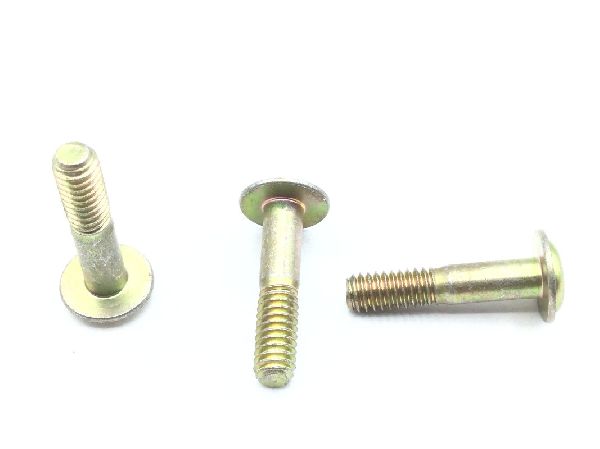

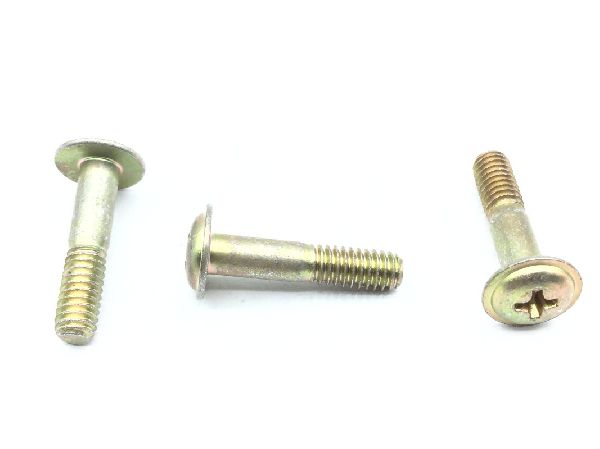

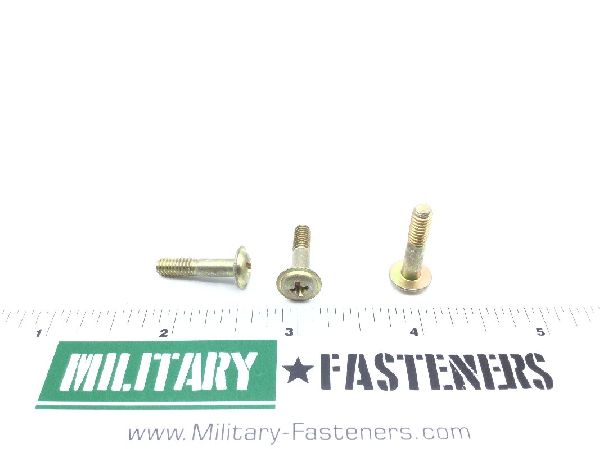

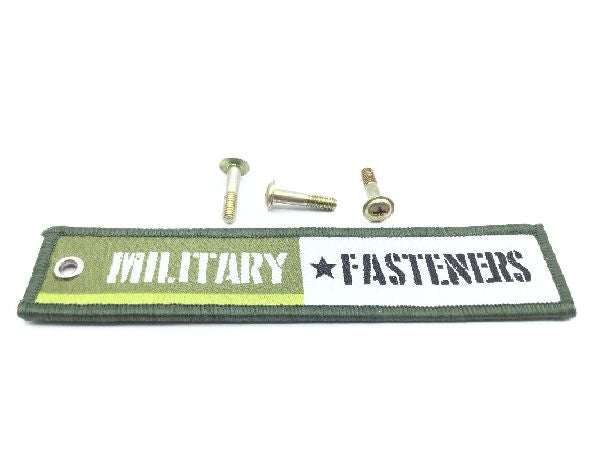

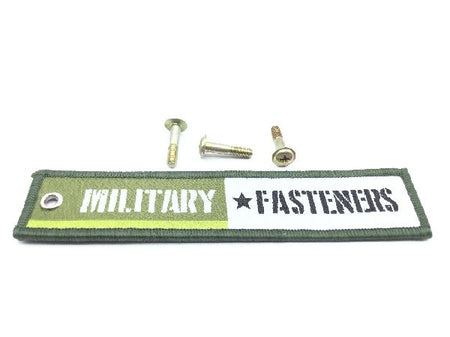

AN525-832R12 Machine Screw

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2091

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Round extended washer

Material

Steel

Surface Treatment

Cl 3 federal specification 2nd treatment response type 2 cl 3 federal specification 1st treatment response or qq-z-325 type 2 qq-p-416

Thread Class

Extended Washer Diameter: Between 0.365 inches and 0.385 inches
Extended Washer Thickness: Between 0.023 inches and 0.028 inches
Fastener Length: Between 0.719 inches and 0.781 inches
Hardness Rating: Between 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.082 inches and 0.092 inches
Internal Drive Style: Cross recess type 1
Material Specification: Mil-s-6050 military specification 1st material response or ams 6300 assn standard 2nd material response
Min. Tensile Strength (psi): 125000 pounds per square inch
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: Between 0.360 inches and 0.453 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.302 inches and 0.322 inches
