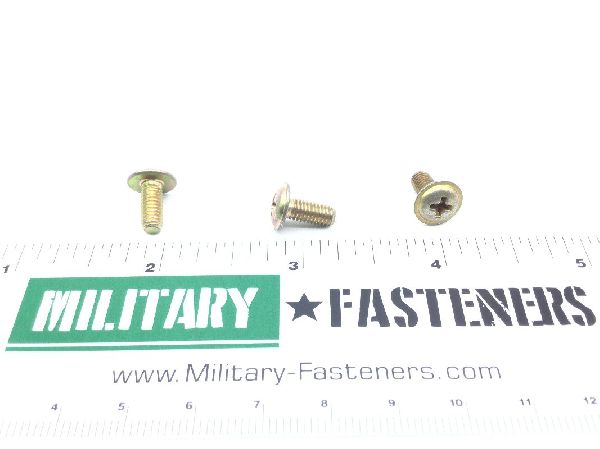

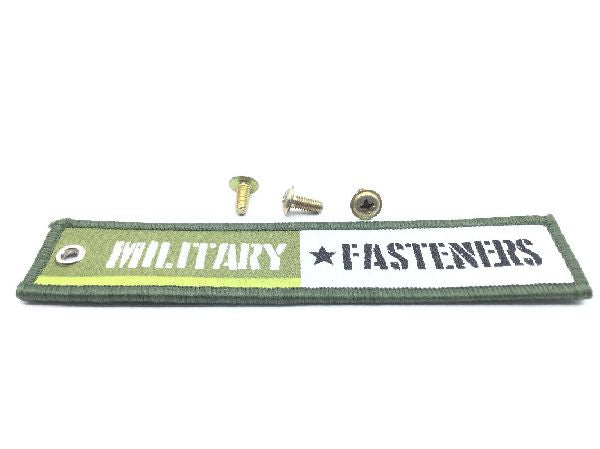

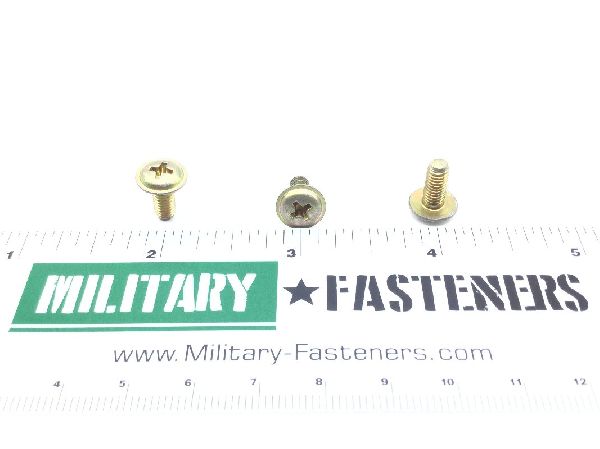

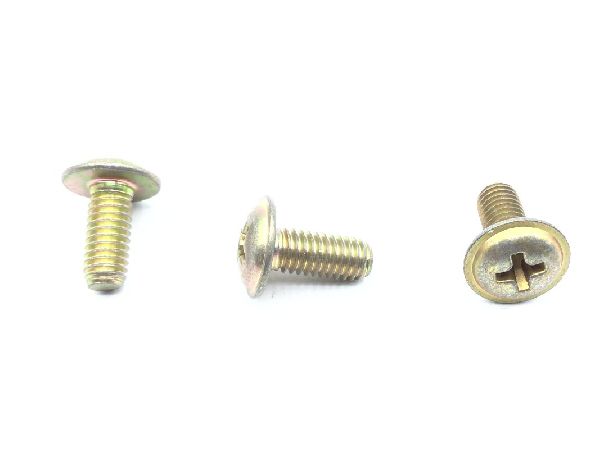

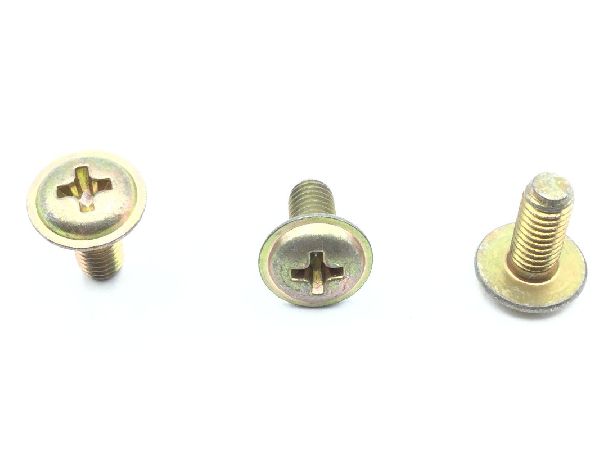

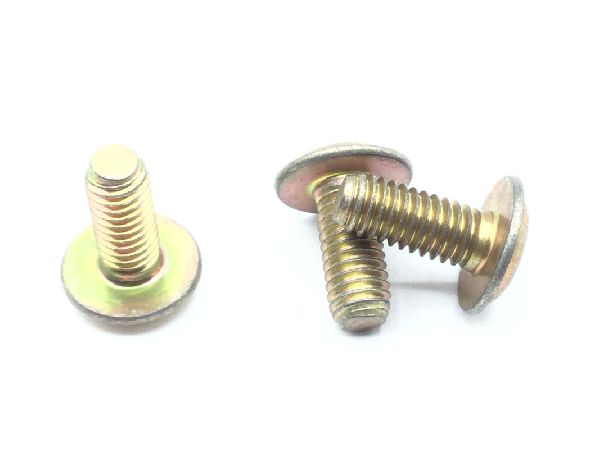

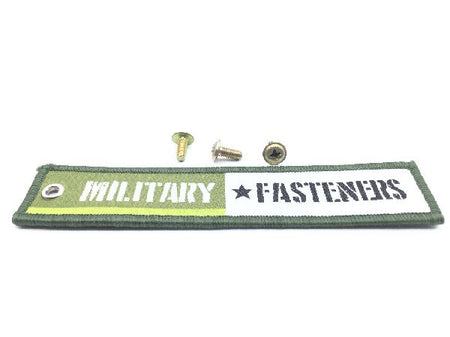

AN525-8R6 Machine Screw

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.50

Units per Pack 100

Price per Pack $50.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $50.00

Add item to quote

Head Style

Round extended washer

Thread Class

Extended Washer Diameter: Between 0.365 inches and 0.385 inches
Extended Washer Thickness: Between 0.023 inches and 0.028 inches
Fastener Length: Between 0.344 inches and 0.406 inches
Head Height: Between 0.082 inches and 0.092 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 125000 pounds per square inch
Screw Material: Steel comp 8630 or steel comp 4037
Screw Material Specification: Mil-s-6050 military specification 1st material response or ams 6300 assn standard 2nd material response
Screw Surface Treatment: Cadmium or zinc
Screw Surface Treatment Specification: Qq-p-416 federal specification 1st treatment response or qq-z-325 federal specification 2nd treatment response
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: Between 0.241 inches and 0.390 inches
Thread Qty Per Inch (tpi): 36
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.302 inches and 0.322 inches
