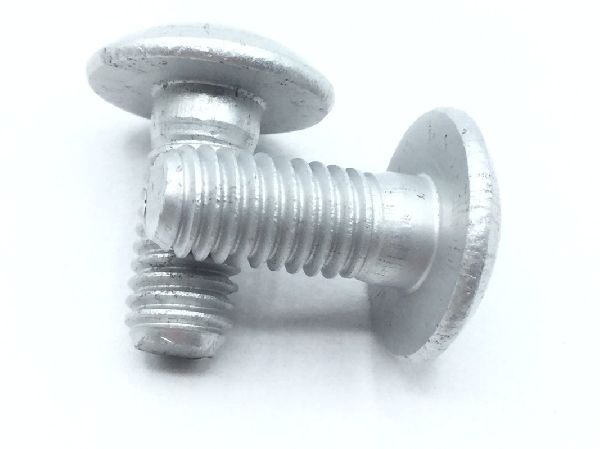

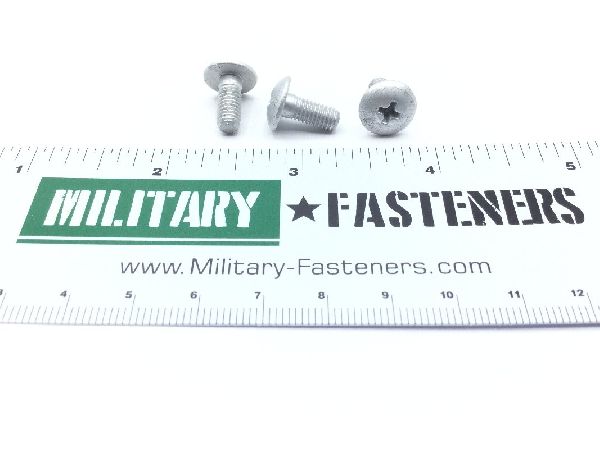

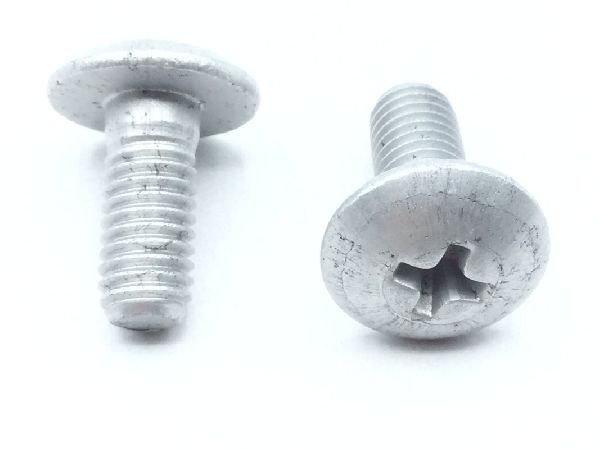

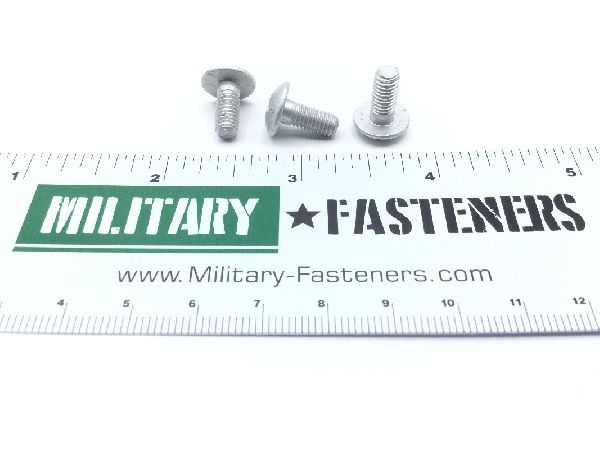

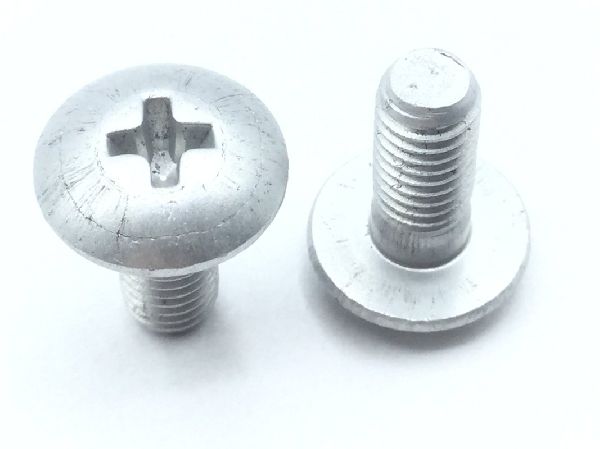

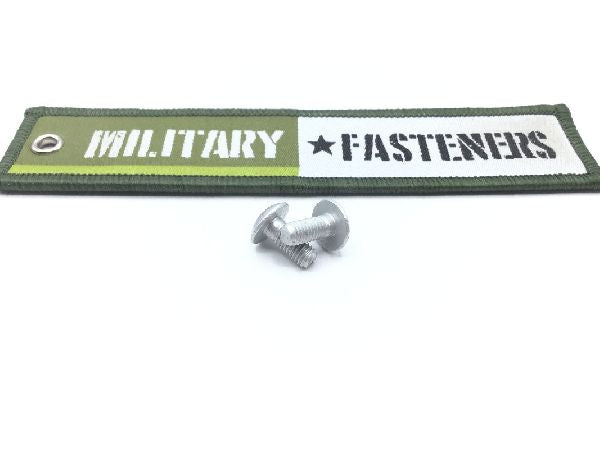

AN525D10R7 Machine Screw

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.78

Units per Pack 50

Price per Pack $39.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $39.00

Add item to quote

Head Style

Round extended washer

Thread Class

Extended Washer Diameter: Between 0.427 inches and 0.447 inches
Extended Washer Thickness: Between 0.025 inches and 0.030 inches
Fastener Length: Between 0.406 inches and 0.469 inches
Head Height: Between 0.089 inches and 0.099 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 62000 pounds per square inch
Screw Material: Aluminum alloy 2024
Screw Material Specification: Qq-a-200/3 federal specification single material response or qq-a-225/6 federal specification single material response
Screw Surface Treatment: Anodize
Screw Surface Treatment Specification: Mil-a-8625 military specification single treatment response
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.266 inches and 0.422 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.365 inches and 0.385 inches
