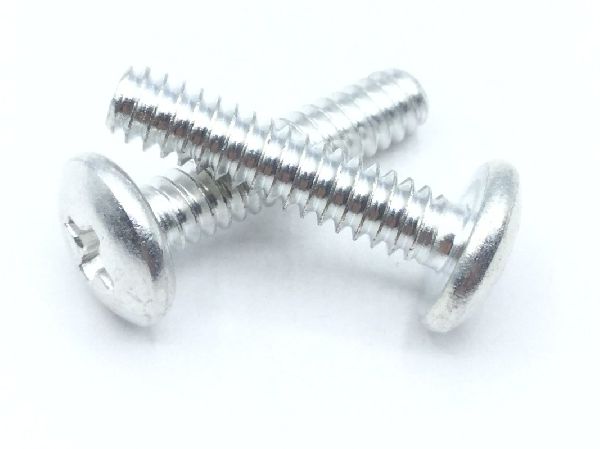

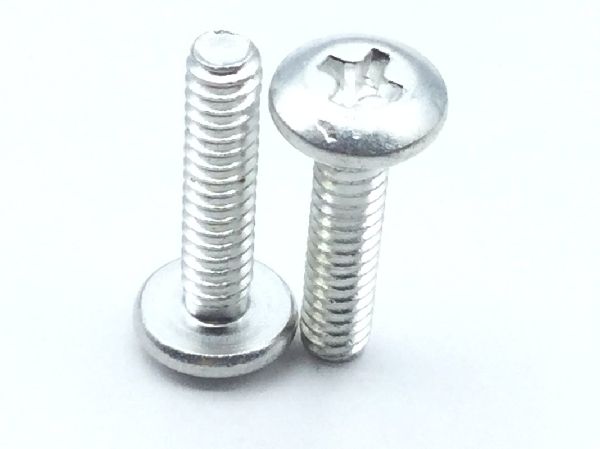

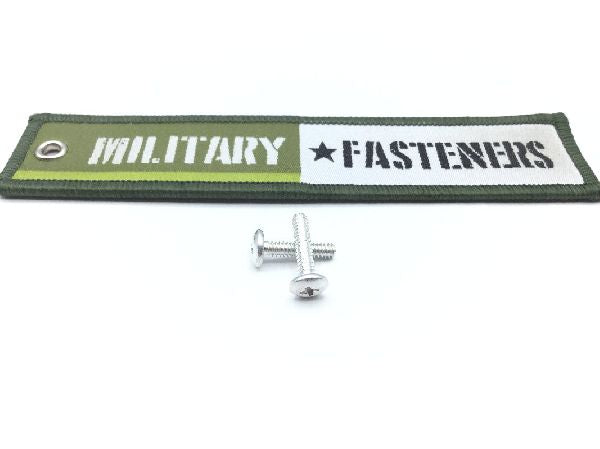

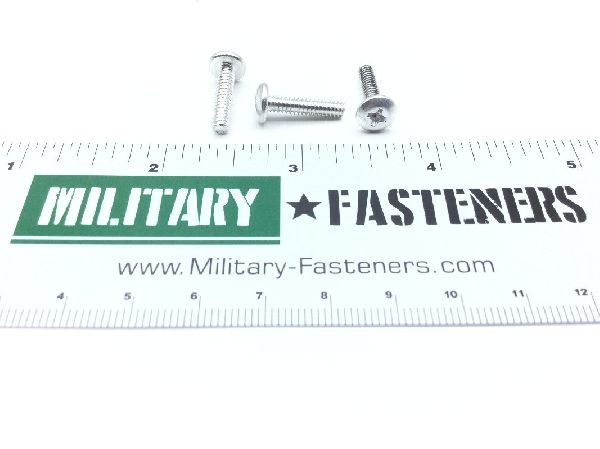

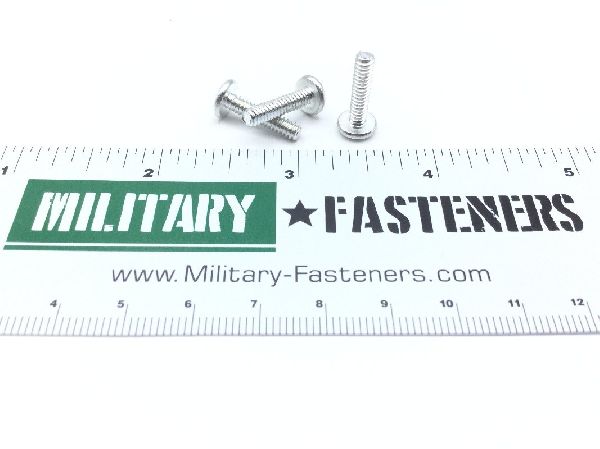

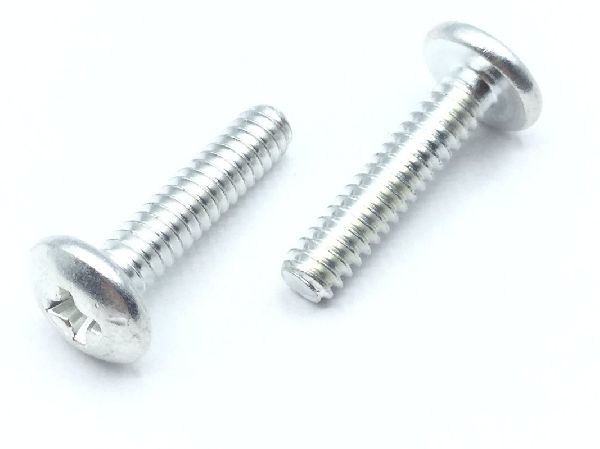

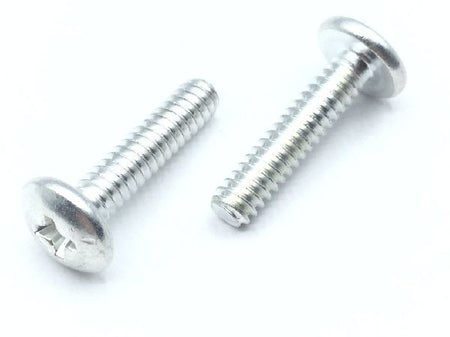

AN526-632R10 Machine Screw

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.35

Units per Pack 100

Price per Pack $35.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $35.00

Add item to quote

Head Style

Button

Surface Treatment

Cl 3 federal specification single treatment response type 1 qq-p-416

Thread Class

Fastener Length: 0.625 inches
Head Height: 0.086 inches
Internal Drive Style: Cross recess type 1
Material Specification: Qq-s-630 federal specification 2nd material response or qq-s-631 federal specification 2nd material response or qq-s-634 federal specification 2nd material response
Min. Tensile Strength (psi): 55000 pounds per square inch
Screw Material: Steel
Thread Diameter: 0.138 inches
Thread Direction: Right-hand
Thread Length: Between 0.563 inches and 0.625 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.303 inches and 0.321 inches
