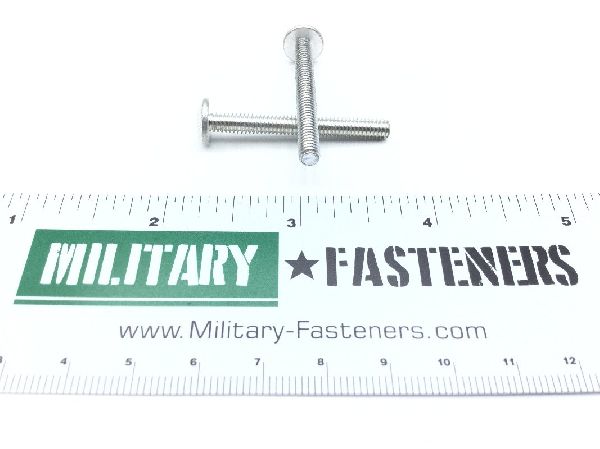

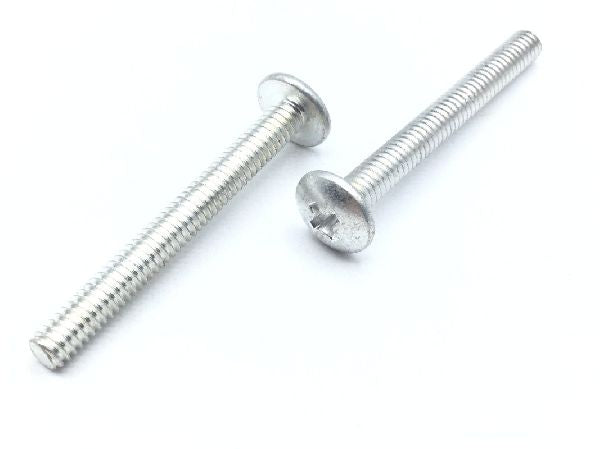

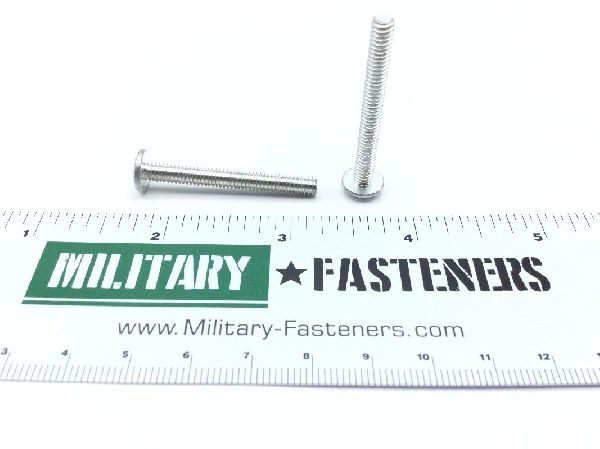

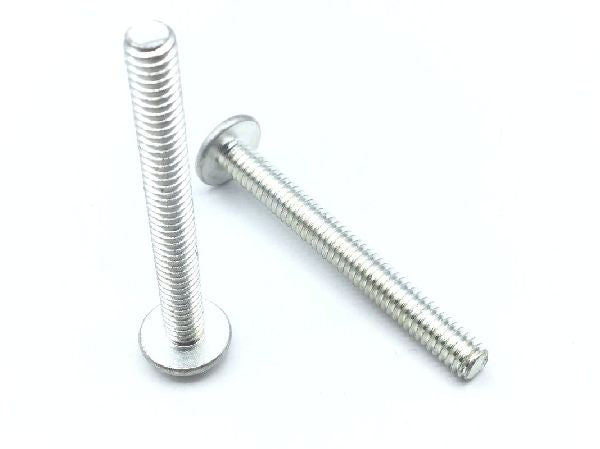

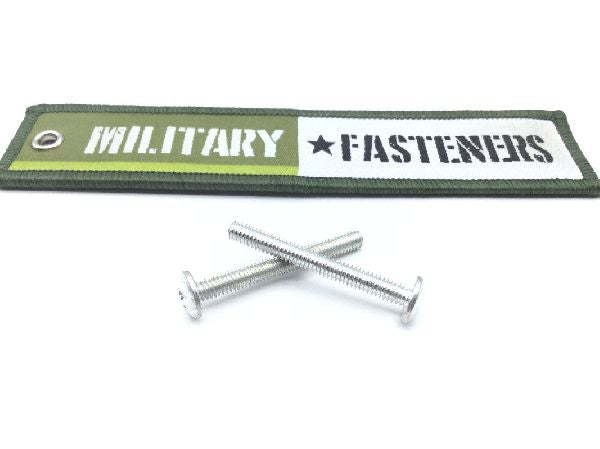

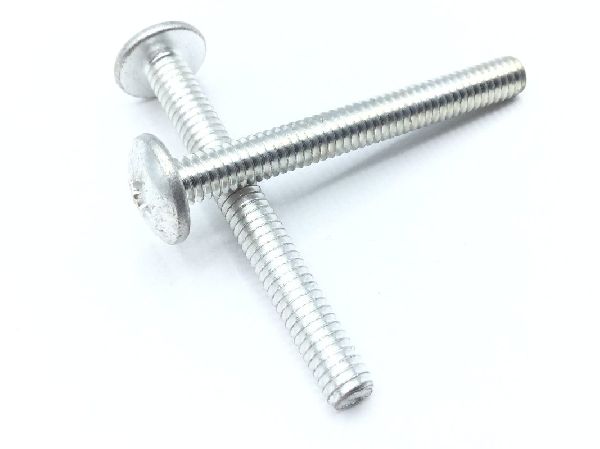

AN526-832R24 Machine Screw

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.25

Units per Pack 100

Price per Pack $25.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $25.00

Add item to quote

Head Style

Button

Thread Class

Fastener Length: Between 1.438 inches and 1.500 inches
Head Height: 0.102 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 55000 pounds per square inch
Nondefinitive Specification/std Data: Iii type and 7c style
Screw Material: Steel
Screw Surface Treatment: Cadmium
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: Between 1.438 inches and 1.500 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.364 inches and 0.384 inches
