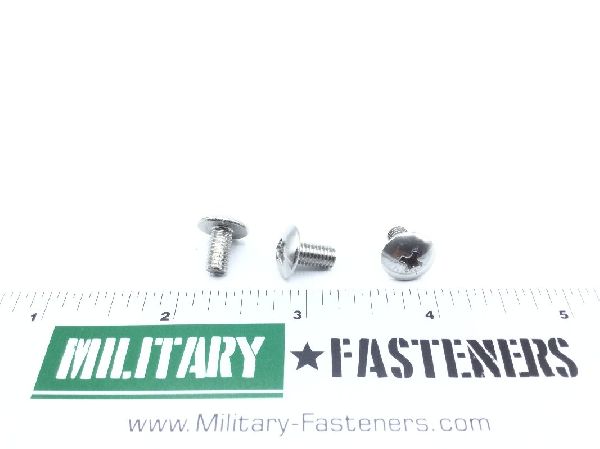

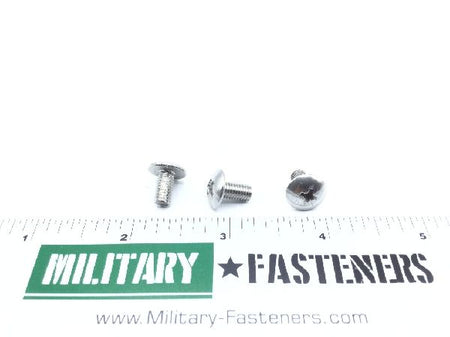

AN526C1032R6 Machine Screw

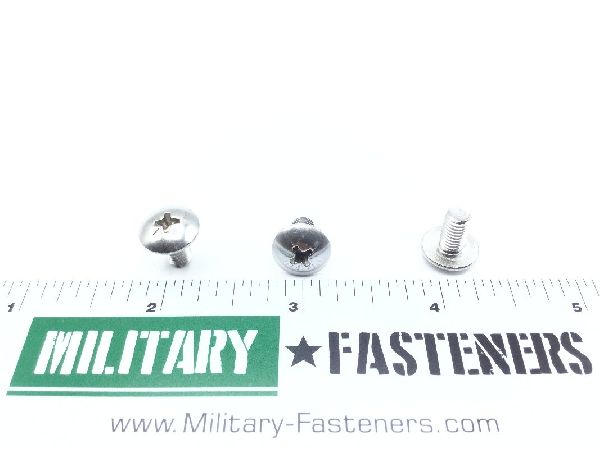

AN526C1032R6 Machine Screw (2)

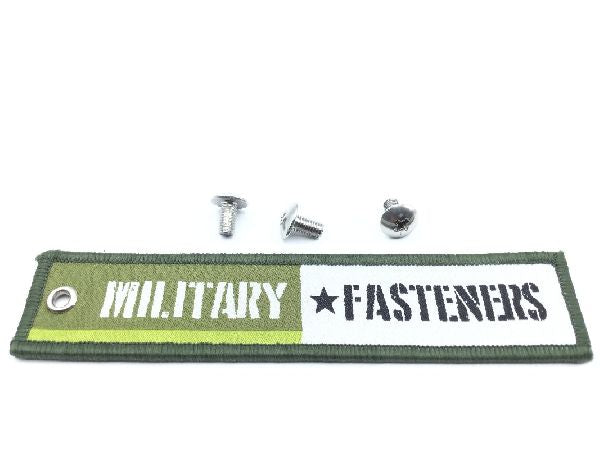

AN526C1032R6 Machine Screw (3)

AN526C1032R6 Machine Screw (4)

AN526C1032R6 Machine Screw (5)

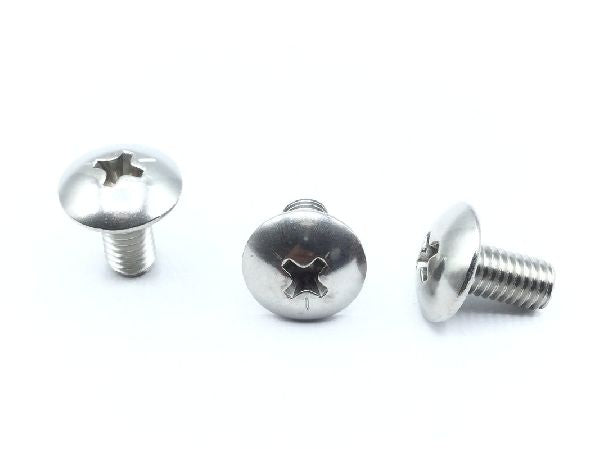

AN526C1032R6 Machine Screw (6)

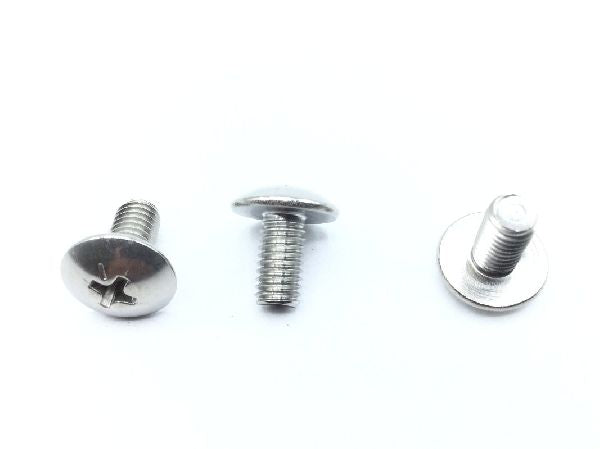

AN526C1032R6 Machine Screw (7)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AN526C1032R6 Machine Screw

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.42

Units per Pack 100

Price per Pack $42.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $42.00

Add item to quote

Head Style

Button

Material

Stainless Steel

Thread Class

2a

Fastener Length: 0.375 inches
Head Height: 0.118 inches
Internal Drive Style: Cross recess type 1
Material Specification: 66 federal standard single material response
Min. Tensile Strength (psi): 80000 pounds per square inch
Nondefinitive Specification/std Data: 3 type and 7c style
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.375 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.425 inches and 0.448 inches
