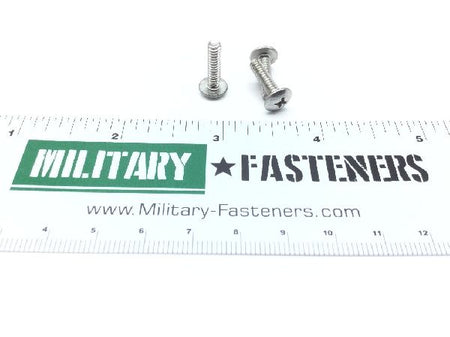

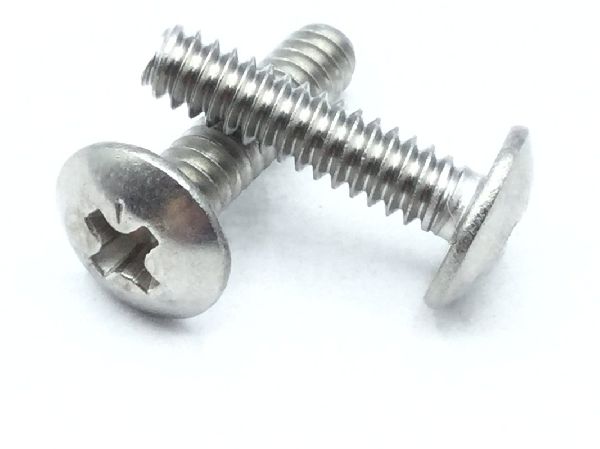

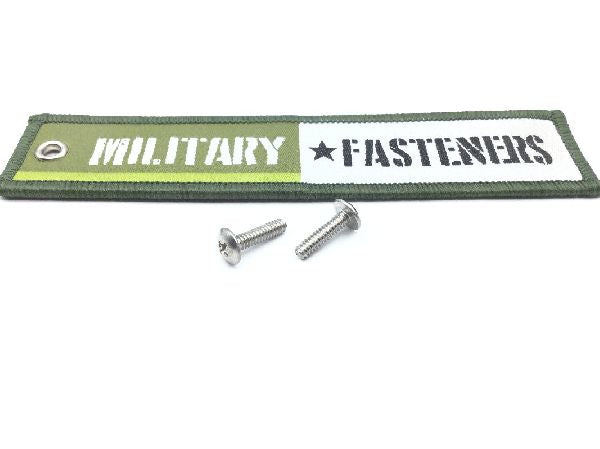

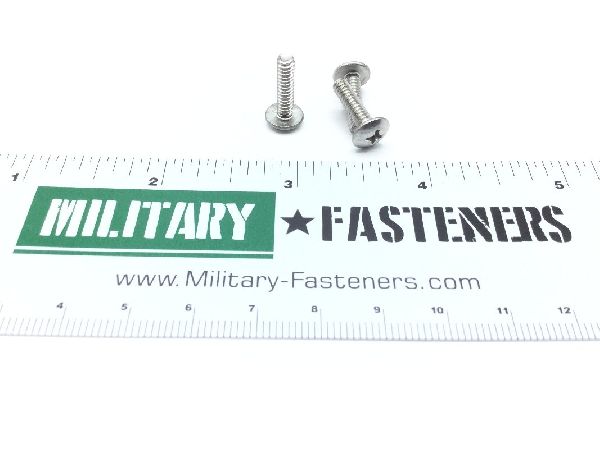

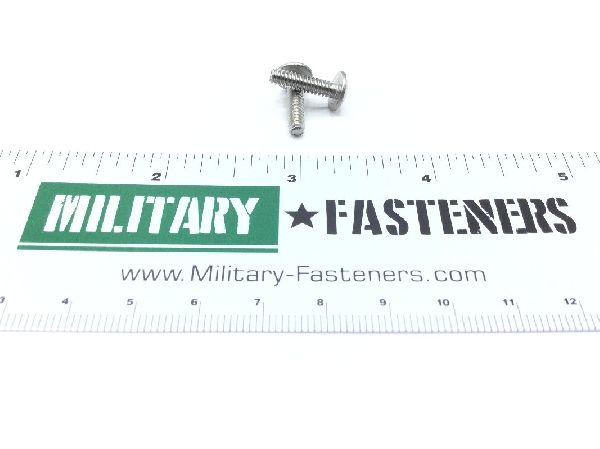

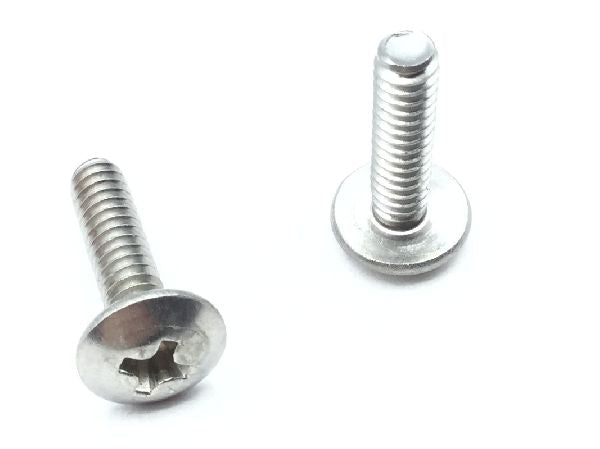

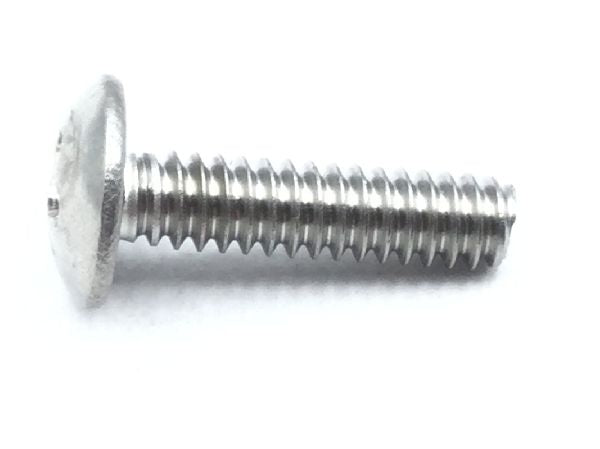

AN526C632R9 Machine Screw

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.48

Units per Pack 100

Price per Pack $48.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $48.00

Add item to quote

Head Style

Button

Thread Class

Fastener Length: 0.562 inches
Head Height: 0.086 inches
Internal Drive Style: Cross recess type 1
Screw Material: Steel comp 303 or steel comp 303se or steel comp 430 or steel comp 302
Screw Material Specification: Mil-s-7720 military specification 1st material response or mil-s-18732 military specification 2nd material response or qq-s-763 federal specification 3rd material response or mil-s-7720 military specification 4th material response
Screw Surface Treatment: Passivate
Thread Diameter: 0.138 inches
Thread Direction: Right-hand
Thread Length: Between 0.500 inches and 0.562 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.303 inches and 0.321 inches
