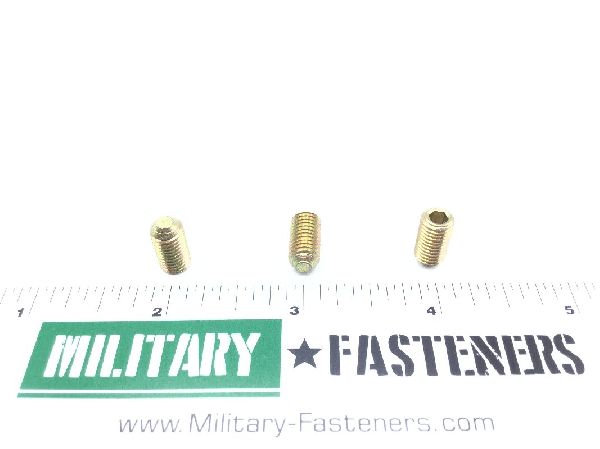

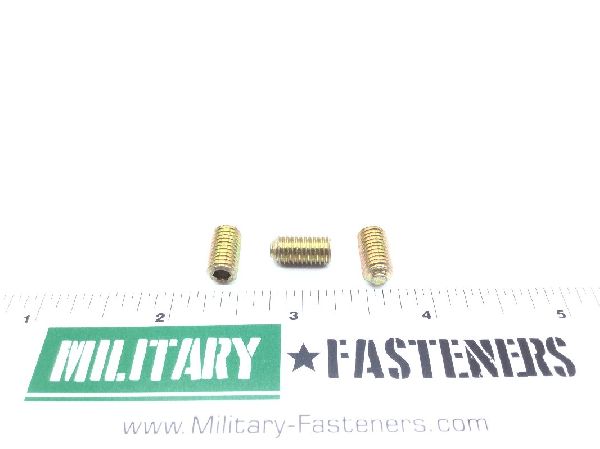

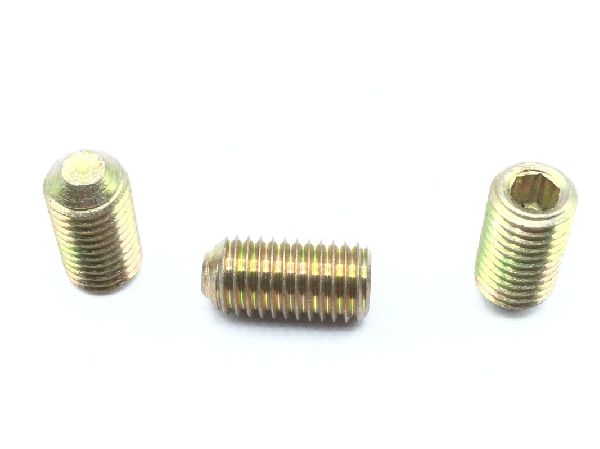

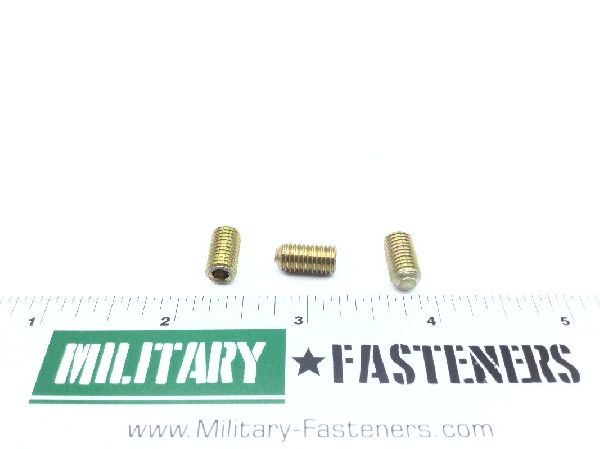

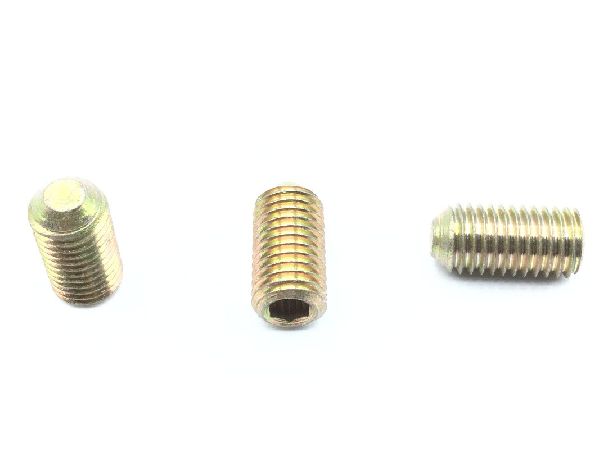

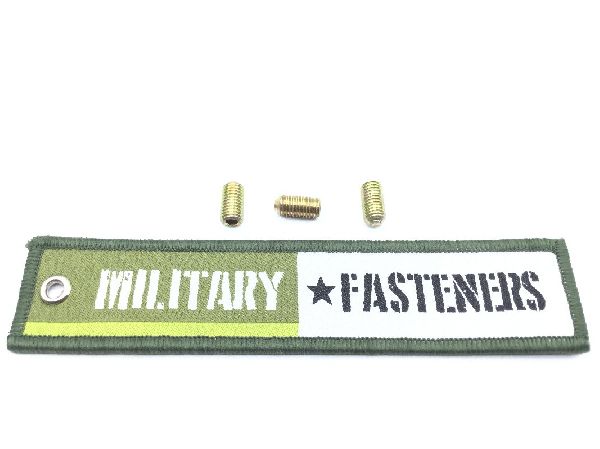

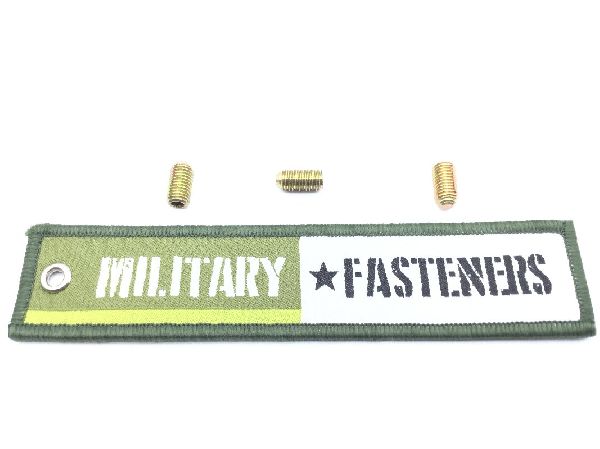

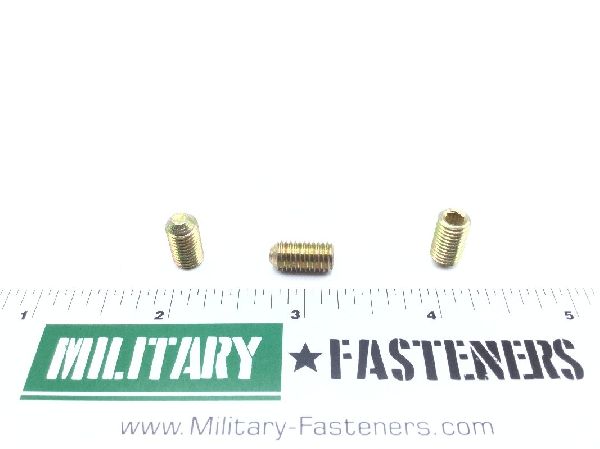

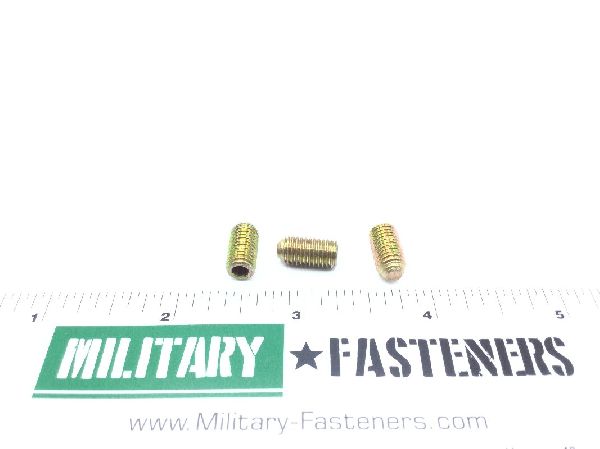

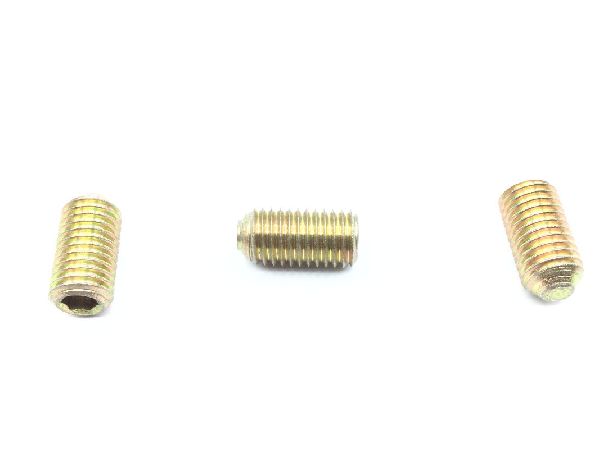

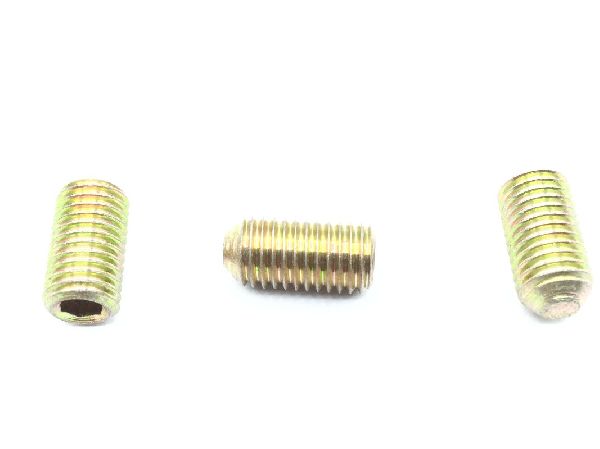

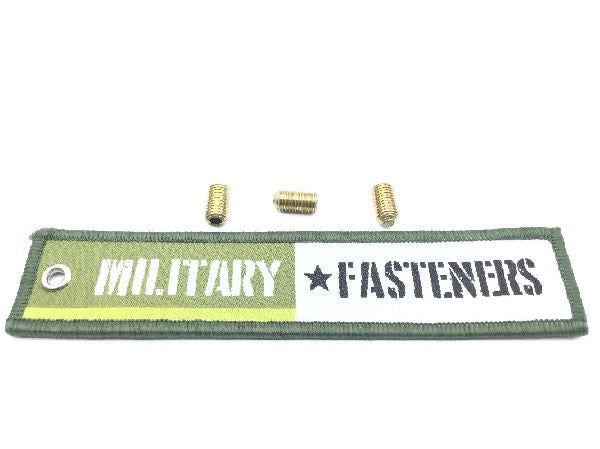

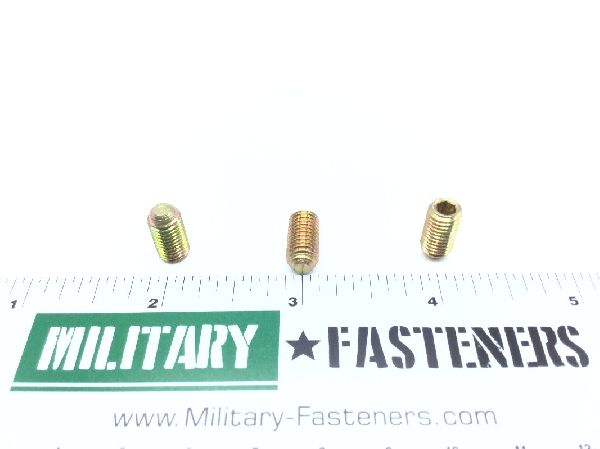

AN565A428H8 Setscrew

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $2.85

Units per Pack 20

Price per Pack $57.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $57.00

Add item to quote

Head Style

Headless (setscrew)

Material

Steel comp

Surface Treatment

Cl 2 federal specification single treatment response type 2 qq-p-416

Thread Class

Fastener Length: Between 0.49 inches and 0.51 inches
Hardness Rating: 45.0 rockwell c and 53.0 rockwell c
Internal Drive Style: Hexagon
Material Specification: 66 federal standard all material responses
Nondefinitive Specification/std Data: 1 type and 1 style
Point Style: Flat
Thread Diameter: 0.25 inches
Thread Direction: Right-hand
Thread Length: Between 0.490 inches and 0.510 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Width Across Flats: Between 0.125 inches and 0.127 inches
