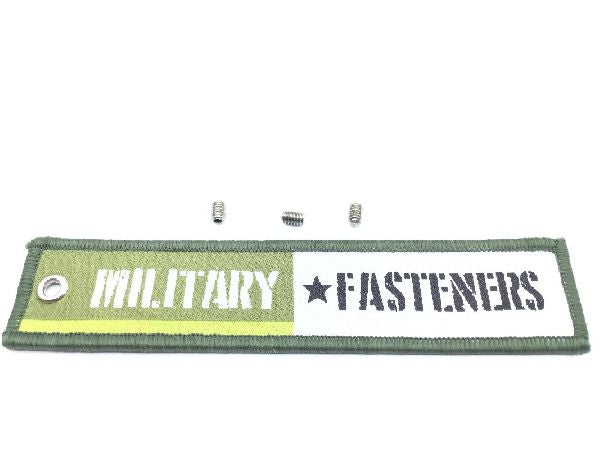

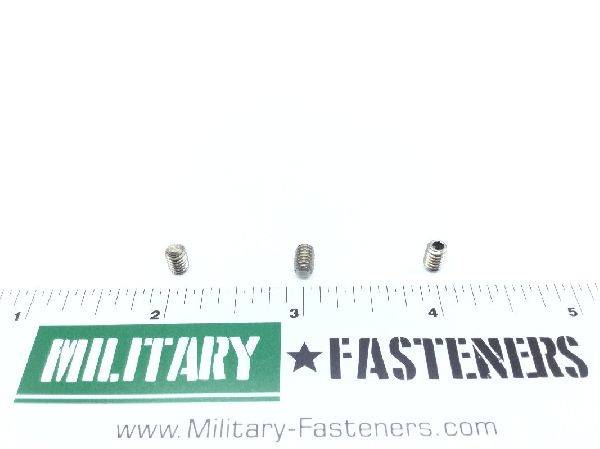

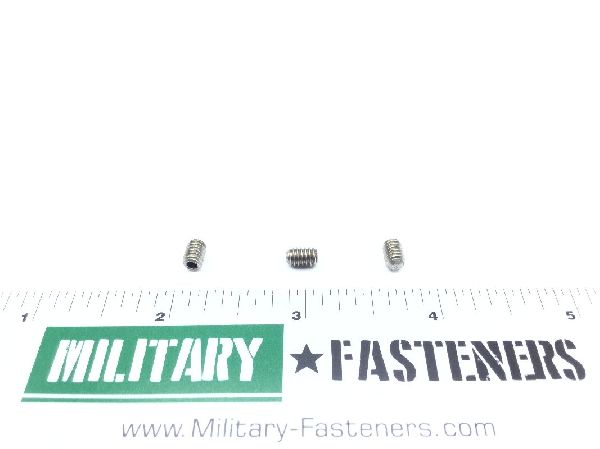

AN565AC8H4 Setscrew

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $2.70

Units per Pack 25

Price per Pack $67.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $67.50

Add item to quote

Head Style

Headless (setscrew)

Material

Steel comp 302 or steel comp 303se

Thread Class

Fastener Length: Between 0.240 inches and 0.260 inches
Internal Drive Style: Hexagon
Material Specification: Mil-s-7720 military specification 1st material response or mil-s-7700 military specification 2nd material response
Nondefinitive Specification/std Data: 3 type and 1 style
Point Style: Flat
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: Between 0.240 inches and 0.260 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Width Across Flats: Between 0.078 inches and 0.079 inches
