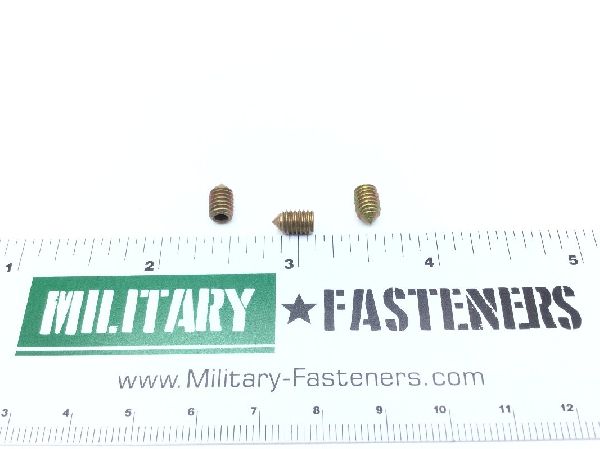

AN565B1032H5 Setscrew

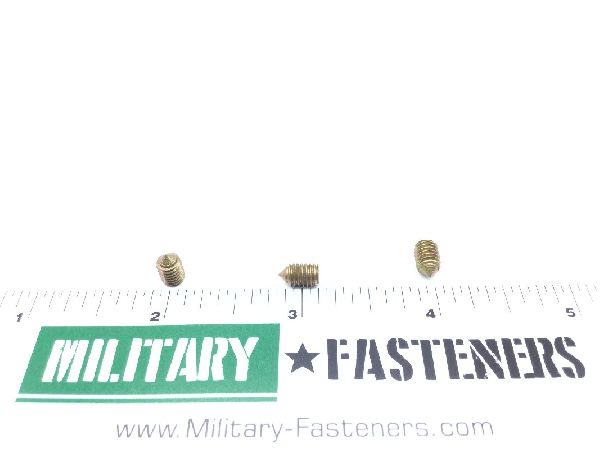

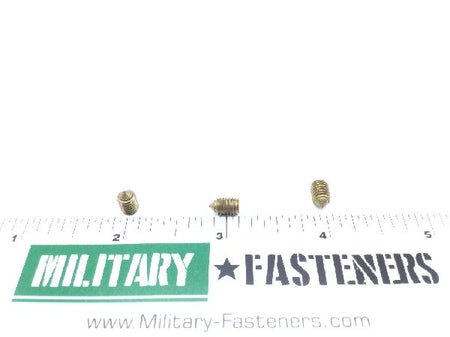

AN565B1032H5 Setscrew (2)

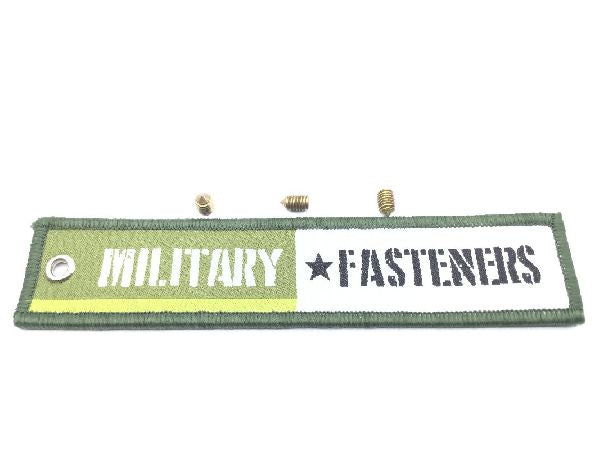

AN565B1032H5 Setscrew (3)

AN565B1032H5 Setscrew (4)

AN565B1032H5 Setscrew (5)

AN565B1032H5 Setscrew (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AN565B1032H5 Setscrew

Product Series: AN
ECCN: 9A991
Schedule: 7318.15.2091

Price per Unit $6.37

Units per Pack 10

Price per Pack $63.70

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $63.70

Add item to quote

Head Style

Headless (setscrew)

Material

Steel

Surface Treatment

Type 2 class 2 federal specification single treatment response qq-p-416

Thread Class

3a

Fastener Length: Between 0.302 inches and 0.322 inches
Hardness Rating: 45.0 rockwell c and 53.0 rockwell c
Internal Drive Style: Hexagon
Nondefinitive Specification/std Data: 1 type and 2 style
Point Style: Cone
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Width Across Flats: Between 0.0937 inches and 0.0947 inches
