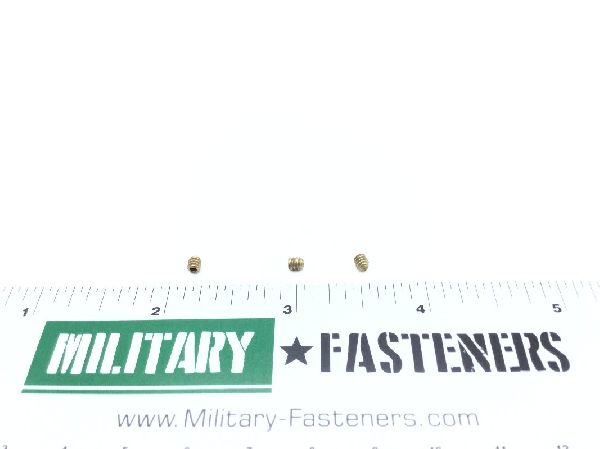

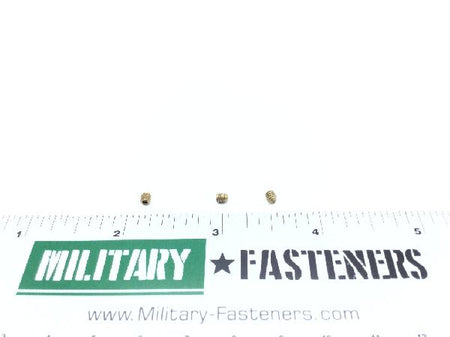

AN565D4L2 Setscrew

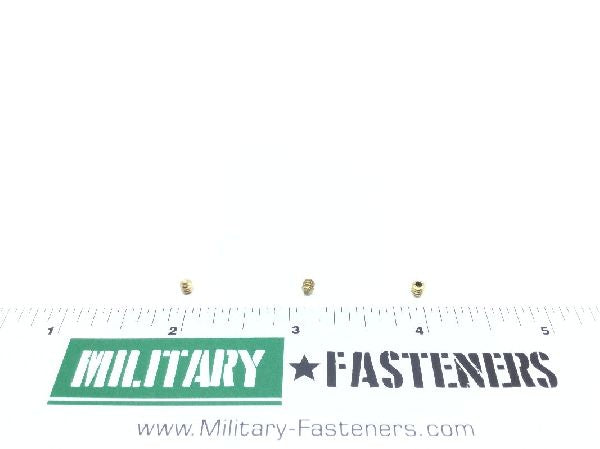

AN565D4L2 Setscrew (2)

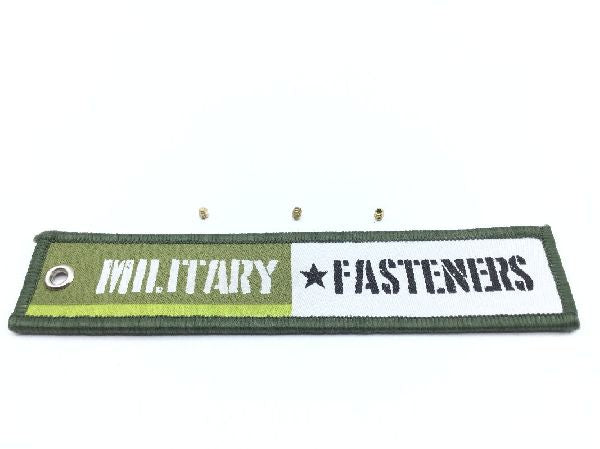

AN565D4L2 Setscrew (3)

AN565D4L2 Setscrew (4)

AN565D4L2 Setscrew (5)

AN565D4L2 Setscrew (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AN565D4L2 Setscrew

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $1.46

Units per Pack 25

Price per Pack $36.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $36.50

Add item to quote

Head Style

Headless (setscrew)

Material

Steel

Thread Class

3a

Fastener Length: 0.125 inches
Internal Drive Style: Six spline
Nondefinitive Specification/std Data: 4 style and 4 type
Point Style: Cup
Spline Major Diameter: Between 0.061 inches and 0.062 inches
Spline Minor Diameter: Between 0.050 inches and 0.051 inches
Spline Width: Between 0.013 inches and 0.014 inches
Thread Diameter: 0.112 inches
Thread Direction: Right-hand
Thread Length: 0.125 inches
Thread Qty Per Inch (tpi): 40
Thread Series Designator: Unc (coarse thread)
