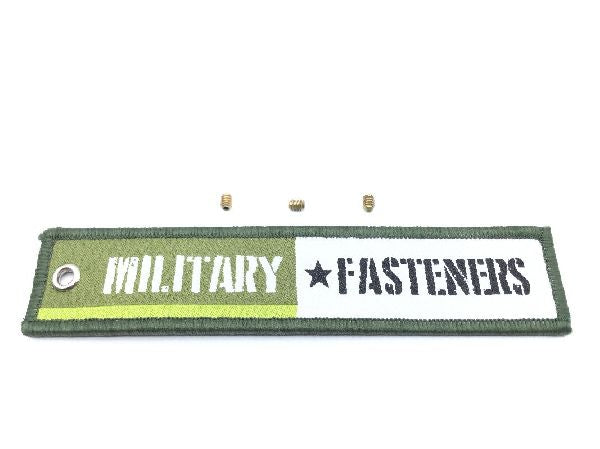

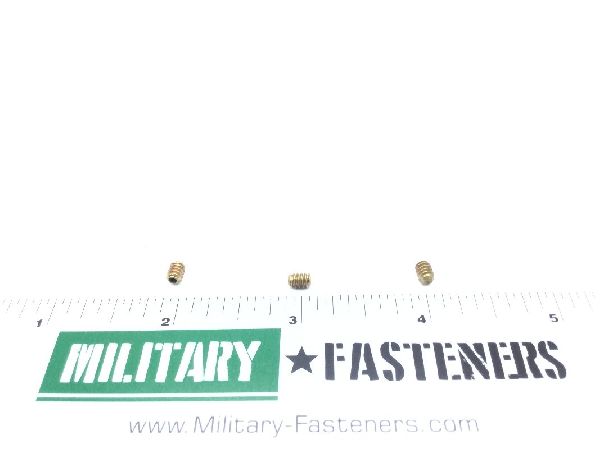

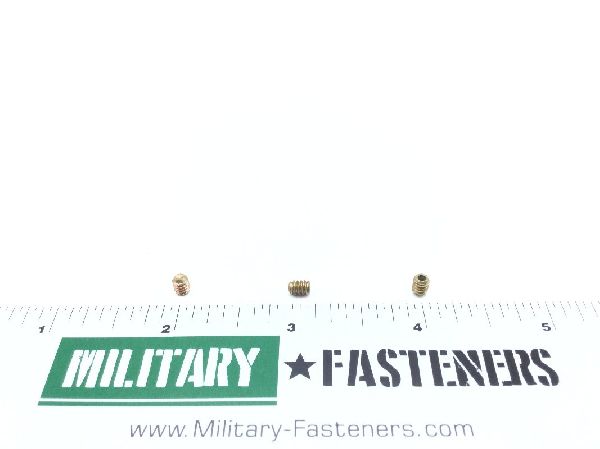

AN565D6H3 Setscrew

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $2.01

Units per Pack 20

Price per Pack $40.20

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $40.20

Add item to quote

Head Style

Headless (setscrew)

Material

Steel comp 4037 or steel comp 4137 or steel comp 8740 or steel comp 8630

Thread Class

Fastener Length: 0.138 inches
Features: Casehardened
Features Provided: Casehardened
Hardness Rating: 45.0 rockwell c and 53.0 rockwell c
Internal Drive Style: Hexagon
Material Specification: Qq-s-624 federal specification 1st material response or qq-s-624 federal specification 2nd material response or mil-s-6049 military specification 3rd material response or mil-s-6050 military specification 4th material response
Point Style: Cup
Thread Diameter: 0.138 inches
Thread Direction: Right-hand
Thread Length: 0.138 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Width Across Flats: 0.062 inches
