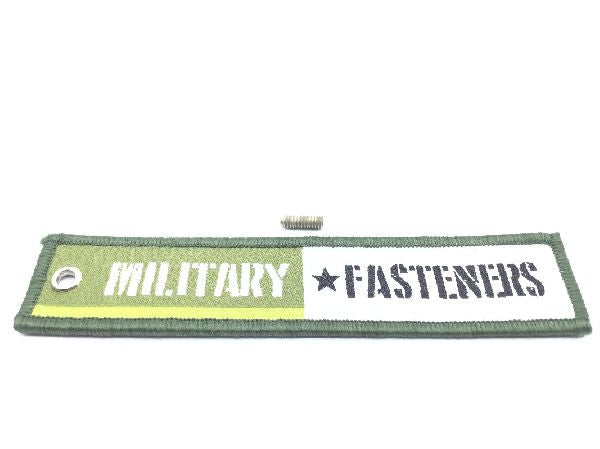

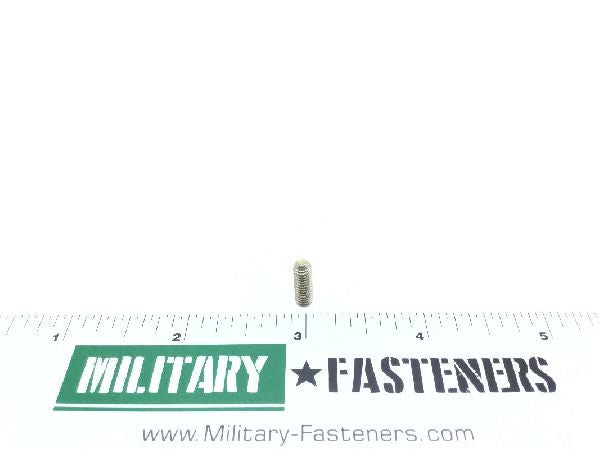

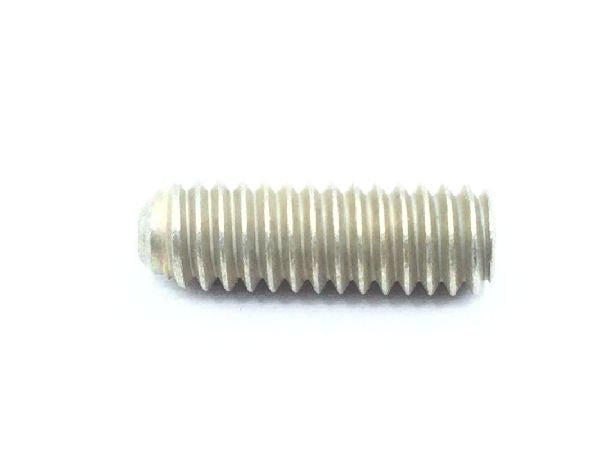

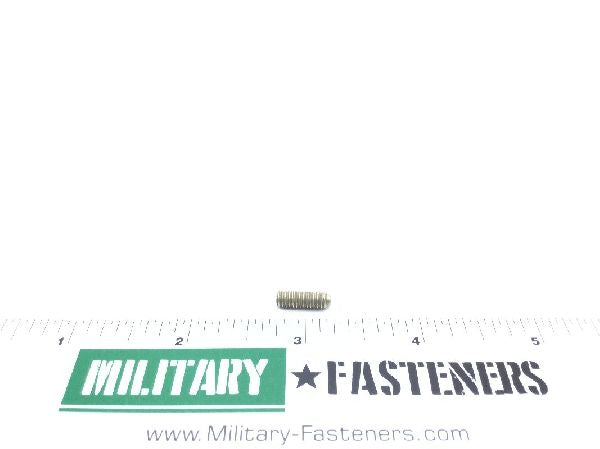

AN565D8H8 Setscrew

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2091

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Headless (setscrew)

Material

Steel

Surface Treatment

Class 2 federal specification all treatment responses type 2 qq-p-416

Thread Class

Fastener Length: Between 0.490 inches and 0.510 inches
Hardness Rating: 45.0 rockwell c and 53.0 rockwell c
Internal Drive Style: Hexagon
Material Specification: 66 federal standard all material responses
Point Style: Cup
Specification Data: 88044-an565 government standard
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: Between 0.450 inches and 0.470 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Width Across Flats: Between 0.078 inches and 0.079 inches
