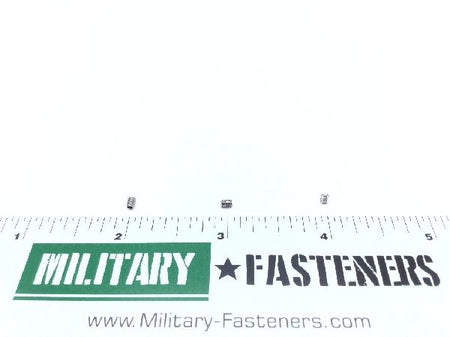

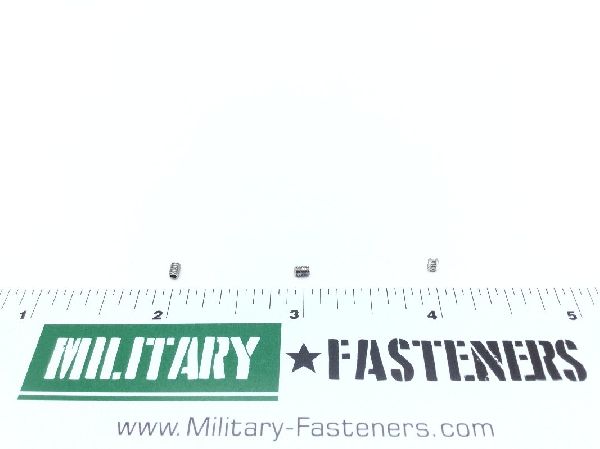

AN565DC2L2 Setscrew

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $2.08

Units per Pack 25

Price per Pack $52.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $52.00

Add item to quote

Head Style

Headless (setscrew)

Material

Steel comp 302 or steel comp 431

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Fastener Length: 0.125 inches
Internal Drive Style: Four spline
Material Specification: Mil-s-7720 military specification 1st material response or mil-s-18732 military specification 2nd material response
Point Style: Cup
Spline Major Diameter: Between 0.049 inches and 0.050 inches
Spline Minor Diameter: Between 0.037 inches and 0.038 inches
Spline Width: Between 0.016 inches and 0.017 inches
Thread Diameter: 0.086 inches
Thread Direction: Right-hand
Thread Length: 0.125 inches
Thread Qty Per Inch (tpi): 56
Thread Series Designator: Unc (coarse thread)
