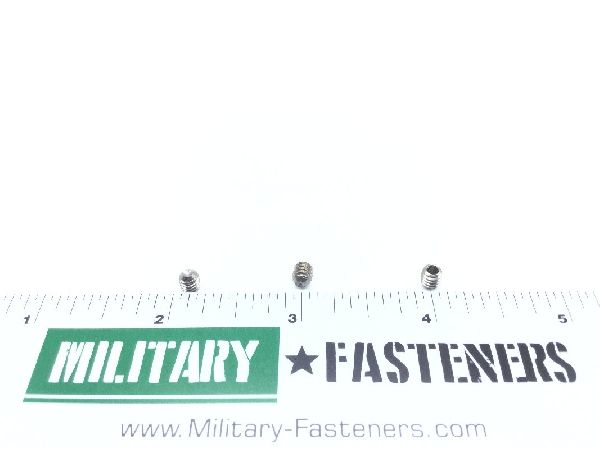

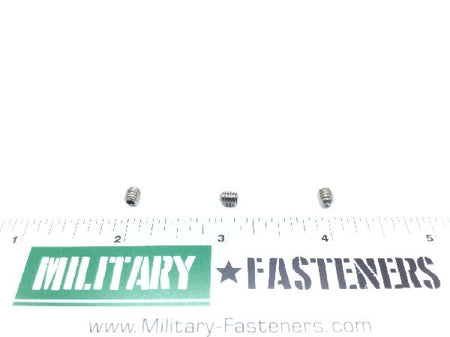

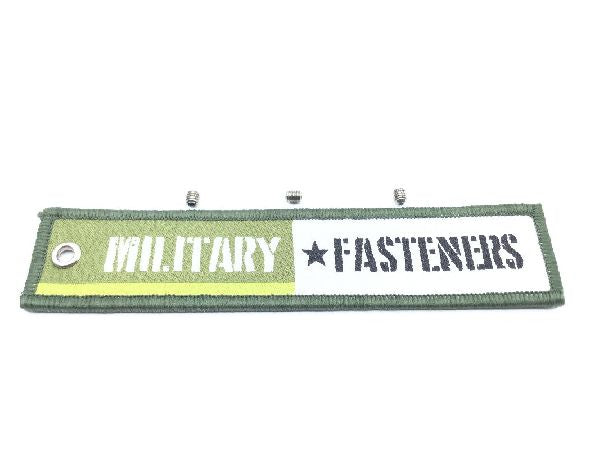

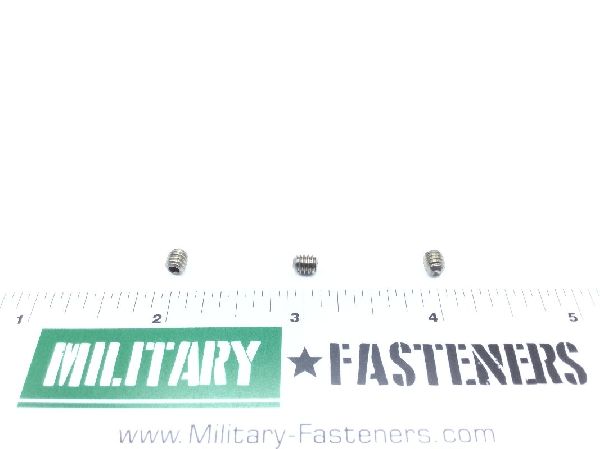

AN565DC8H3 Setscrew

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $1.73

Units per Pack 25

Price per Pack $43.25

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $43.25

Add item to quote

Material

Steel comp 302 or steel comp 303

Thread Class

Fastener Length: 0.188 inches
Features: Casehardened
Features Provided: Casehardened
Internal Drive Style: Hexagon
Material Specification: Cl 303 federal specification 2nd material response cl 302 federal specification 1st material response or qq-s-763 qq-s-763
Minimum Yield Strength: 100000 pounds per square inch
Point Style: Cup
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: 0.188 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Width Across Flats: Between 0.078 inches and 0.079 inches
