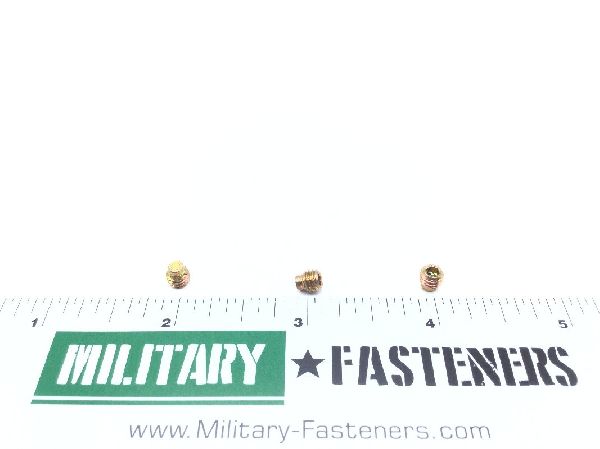

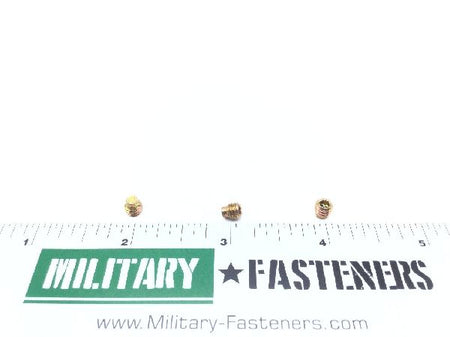

AN565E1032H3 Setscrew

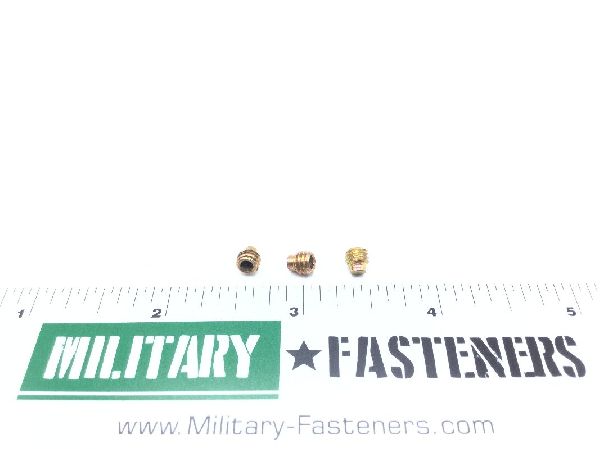

AN565E1032H3 Setscrew (2)

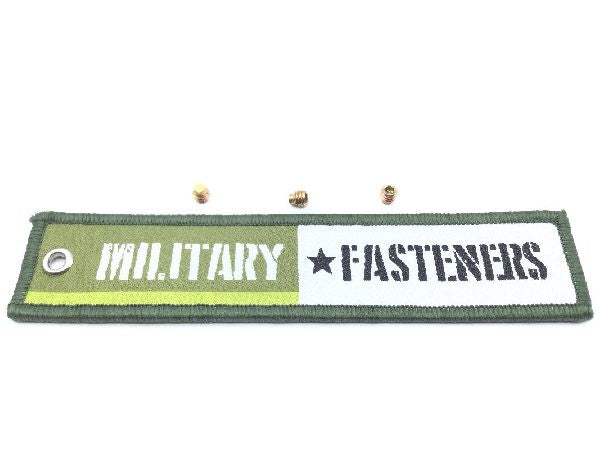

AN565E1032H3 Setscrew (3)

AN565E1032H3 Setscrew (4)

AN565E1032H3 Setscrew (5)

AN565E1032H3 Setscrew (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AN565E1032H3 Setscrew

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $2.31

Units per Pack 25

Price per Pack $57.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $57.75

Add item to quote

Head Style

Headless (setscrew)

Material

Steel comp 4037 or steel comp 4137 or steel comp 4140 or steel comp 8630 or steel comp 8740

Surface Treatment

cl 3 federal specification single treatment response ty ii qq-p-416

Thread Class

3a

Fastener Length: 0.188 inches
Hardness Rating: 45.0 rockwell c and 53.0 rockwell c
Internal Drive Style: Hexagon
Point Style: Half dog
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.188 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Width Across Flats: Between 0.094 inches and 0.095 inches
