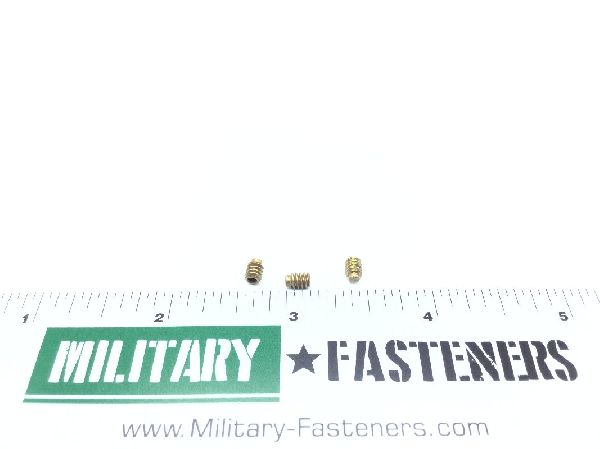

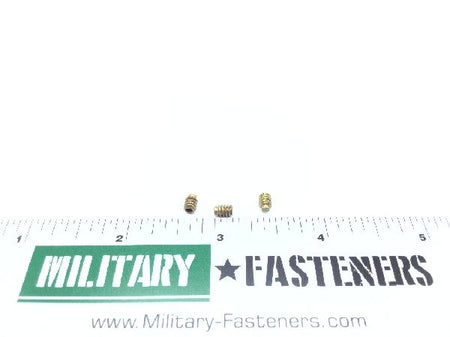

AN565E6H3 Setscrew

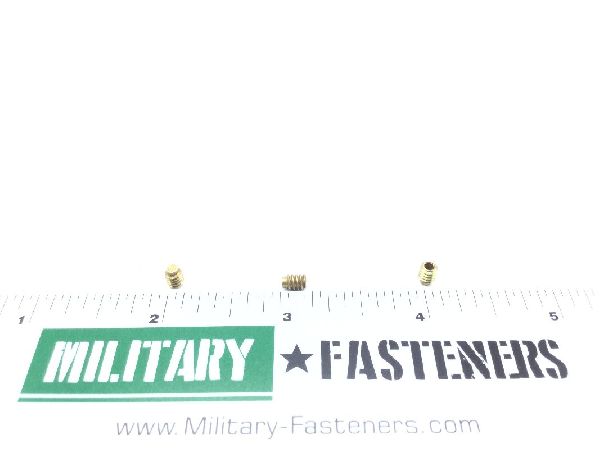

AN565E6H3 Setscrew (2)

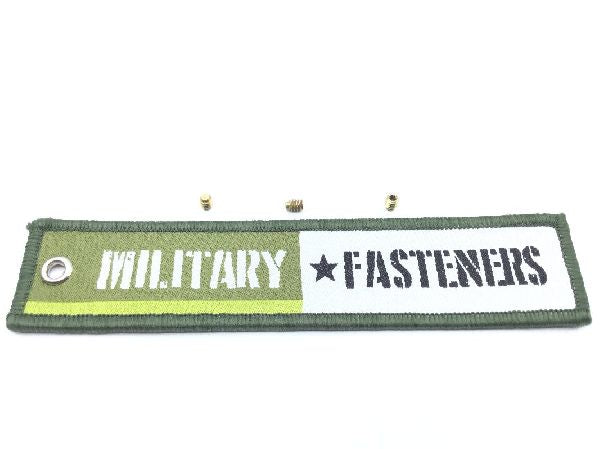

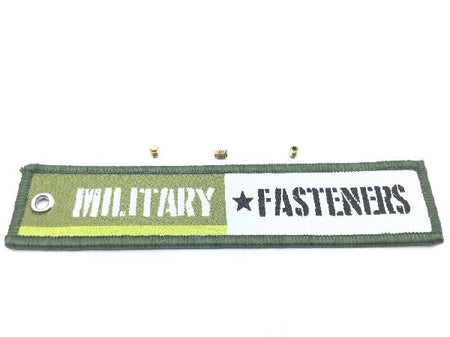

AN565E6H3 Setscrew (3)

AN565E6H3 Setscrew (4)

AN565E6H3 Setscrew (5)

AN565E6H3 Setscrew (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AN565E6H3 Setscrew

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $6.86

Units per Pack 10

Price per Pack $68.60

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $68.60

Add item to quote

Head Style

Hexagon countersunk

Material

Steel

Thread Class

3a

Countersink Angle: 45.0 degrees
Fastener Length: 0.250 inches
Head Height: 0.035 inches
Internal Drive Style: Hexagon
Point Chamfer Angle: 45.0 degrees
Point Diameter: 0.087 inches
Point Length: 0.188 inches
Point Style: Half dog
Thread Diameter: 0.138 inches
Thread Direction: Right-hand
Thread Length: 0.215 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Width Across Flats: 0.063 inches
Width Between Flats: 0.153 inches
