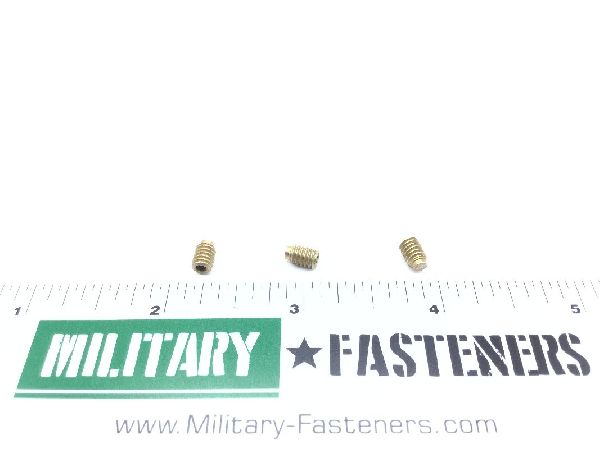

AN565E8H4 Setscrew

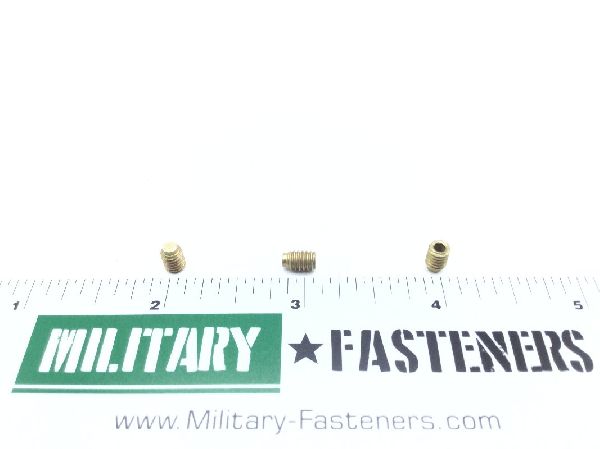

AN565E8H4 Setscrew (2)

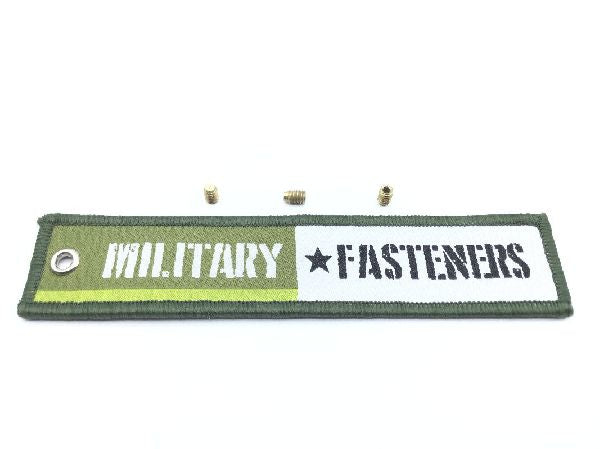

AN565E8H4 Setscrew (3)
AN565E8H4 Setscrew (4)

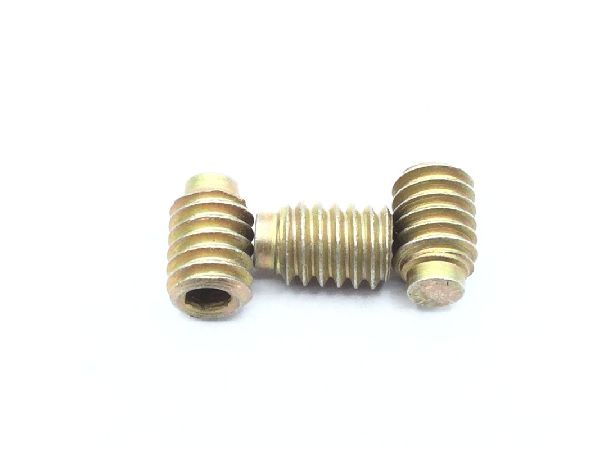

AN565E8H4 Setscrew (5)
AN565E8H4 Setscrew (6)
AN565E8H4 Setscrew
AN565E8H4 Setscrew (2)
AN565E8H4 Setscrew (3)
AN565E8H4 Setscrew (4)
AN565E8H4 Setscrew (5)
AN565E8H4 Setscrew (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AN565E8H4 Setscrew

Product Series
AN
ECCN
EAR99
Schedule
7318.15.2091
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Head Style
Headless (setscrew)
Material
Steel comp 4037 or steel comp 4137 or steel comp 8630 or steel comp 8740
Surface Treatment
Type 2 class 2 federal specification all treatment responses qq-p-416
Thread Class
3a
Fastener Length
Between 0.250 inches and 0.260 inches
Hardness Rating
45.0 rockwell c and 53.0 rockwell c
Internal Drive Style
Hexagon
Nondefinitive Specification/std Data
1 type and 6 style
Point Style
Half dog
Thread Diameter
0.164 inches
Thread Direction
Right-hand
Thread Length
Between 0.240 inches and 0.260 inches
Thread Qty Per Inch (tpi)
32
Thread Series Designator
Unc (coarse thread)
Width Across Flats
Between 0.078 inches and 0.079 inches
