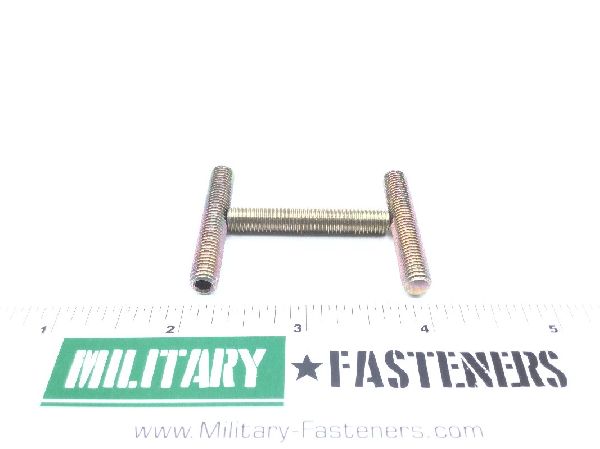

AN565F428H24 Setscrew

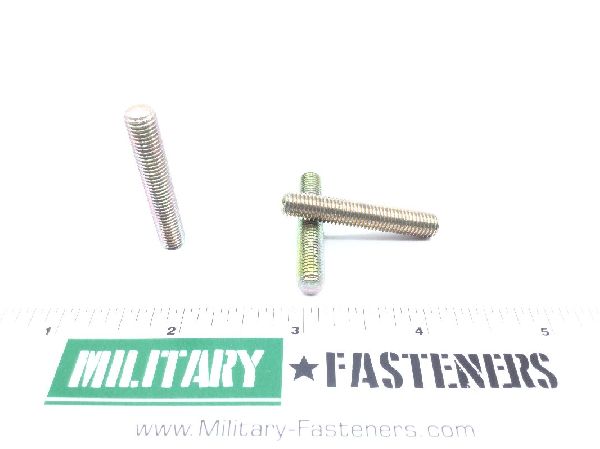

AN565F428H24 Setscrew (2)

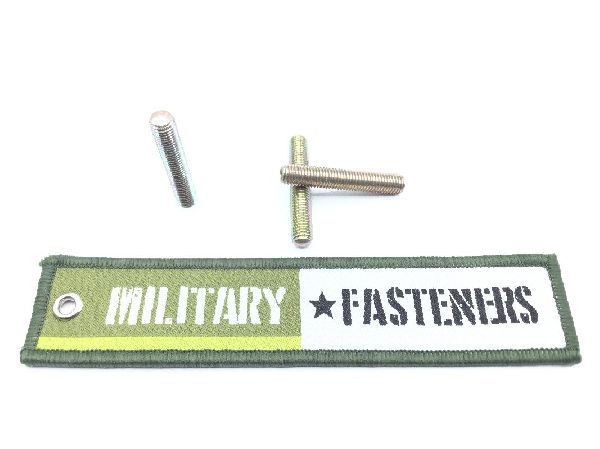

AN565F428H24 Setscrew (3)

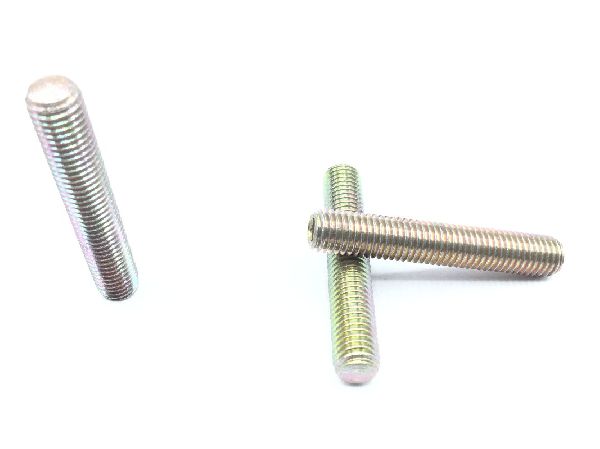

AN565F428H24 Setscrew (4)

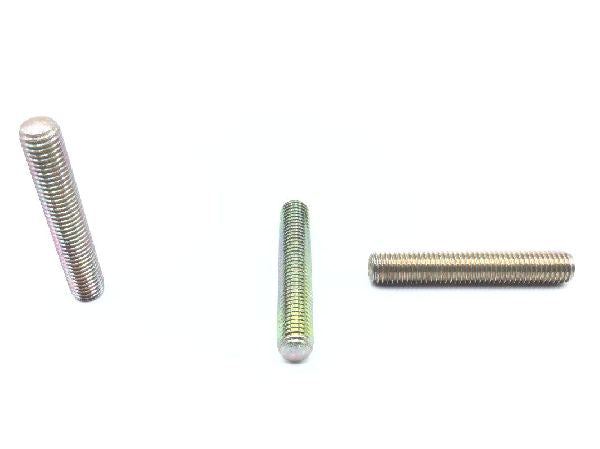

AN565F428H24 Setscrew (5)

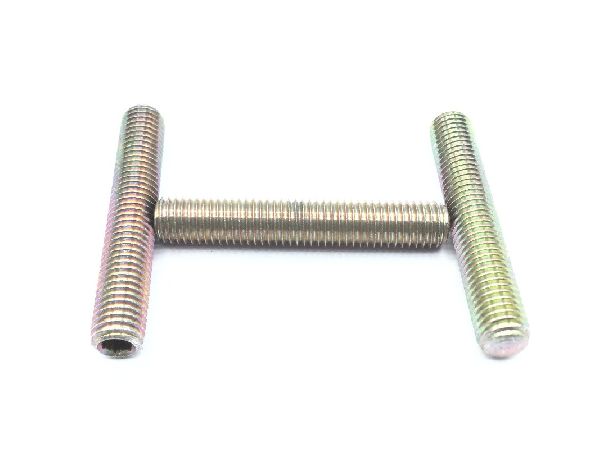

AN565F428H24 Setscrew (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AN565F428H24 Setscrew

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $4.50

Units per Pack 10

Price per Pack $45.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $45.00

Add item to quote

Head Style

Headless (setscrew)

Material

Steel comp 4037 or steel comp 4137 or steel comp 4140 or steel comp 8630 or steel comp 8740

Surface Treatment

Class 3 federal specification single treatment response type 2 qq-p-416

Thread Class

3a

Fastener Length: 1.500 inches
Hardness Rating: 45.0 rockwell c and 53.0 rockwell c
Internal Drive Style: Hexagon
Material Specification: 66 federal standard all material responses
Point Style: Oval
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: 1.500 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Width Across Flats: Between 0.125 inches and 0.127 inches
