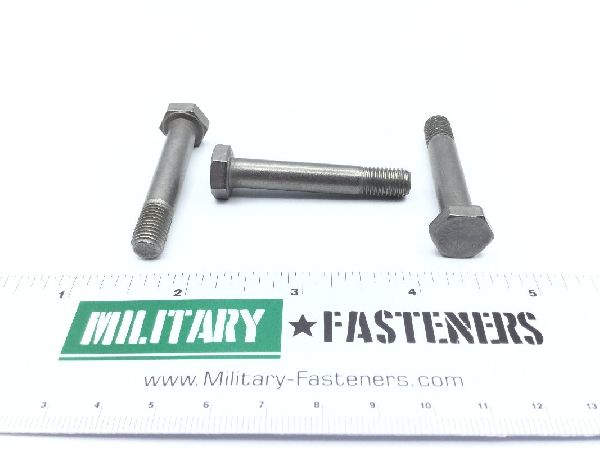

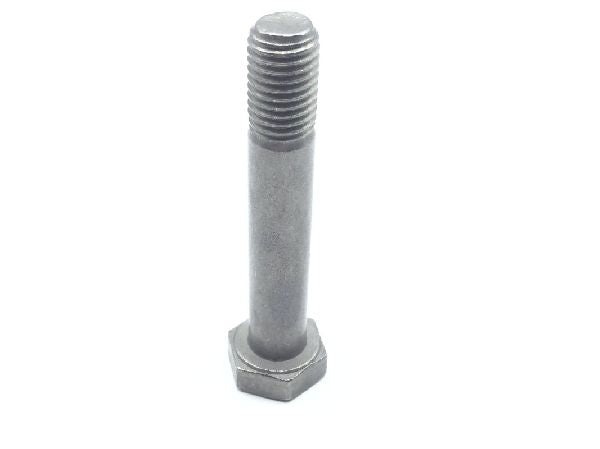

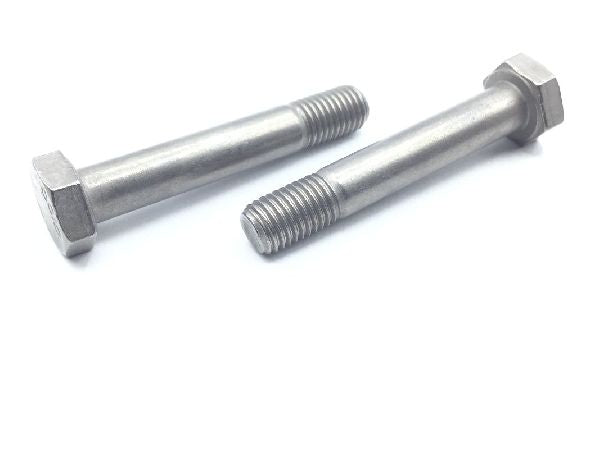

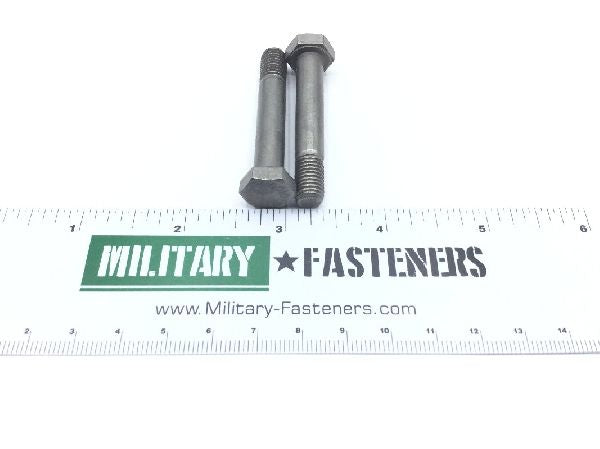

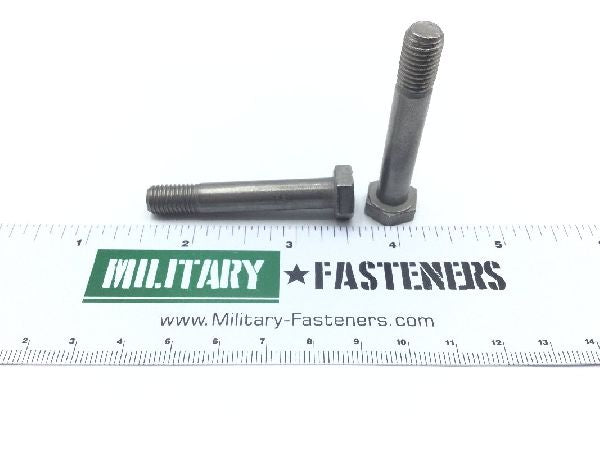

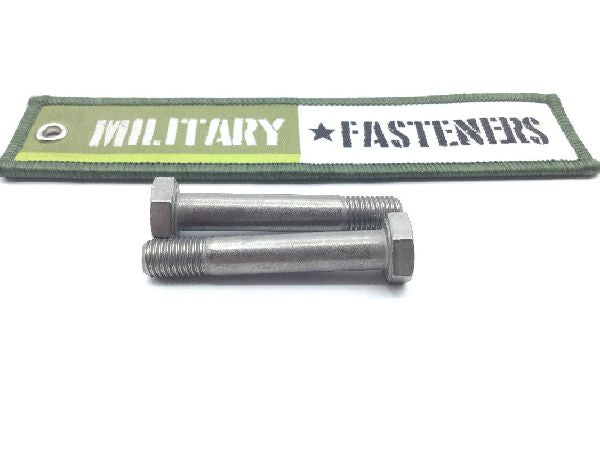

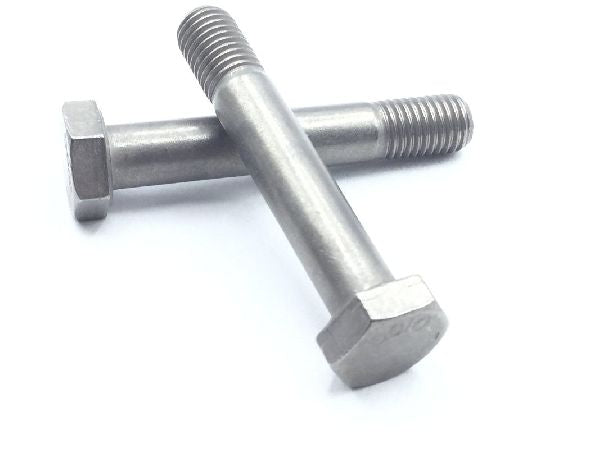

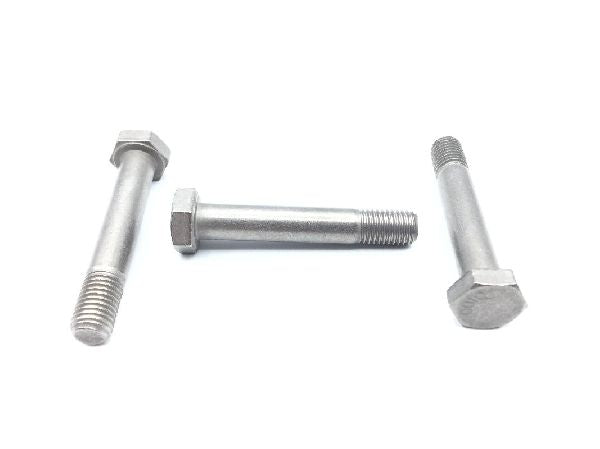

AN5C16A Machine Bolt

NSN: 5306-00-180-1925
Product Series: AN
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $7.62

Units per Pack 5

Price per Pack $38.10

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $38.10

Add item to quote

Head Style

Hexagon

Material

Steel comp 431

Thread Class

Fastener Length: Between 1.828 inches and 1.875 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 1.297 inches and 1.328 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.172 inches and 0.204 inches
Material Specification: Mil-s-18732 military specification single material response
Min. Tensile Strength (psi): 125000 pounds per square inch
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: Between 0.500 inches and 0.578 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.490 inches and 0.502 inches
