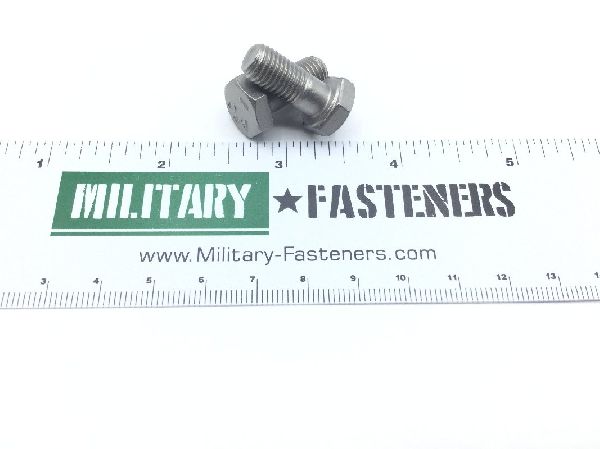

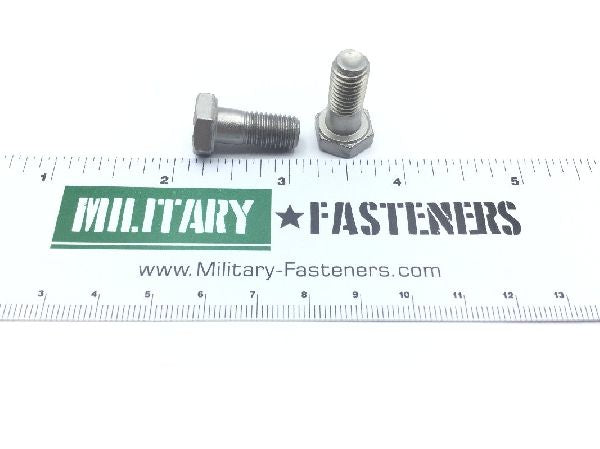

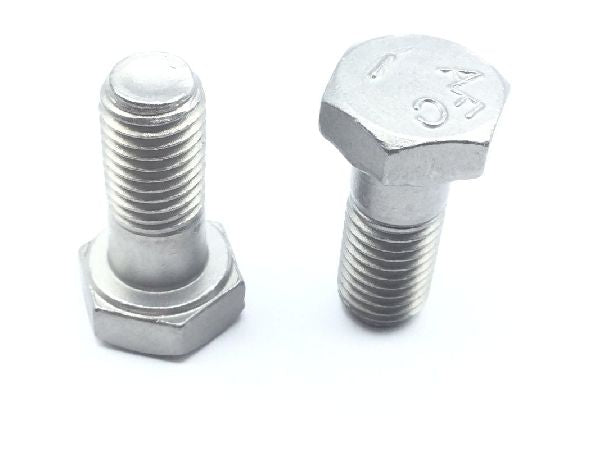

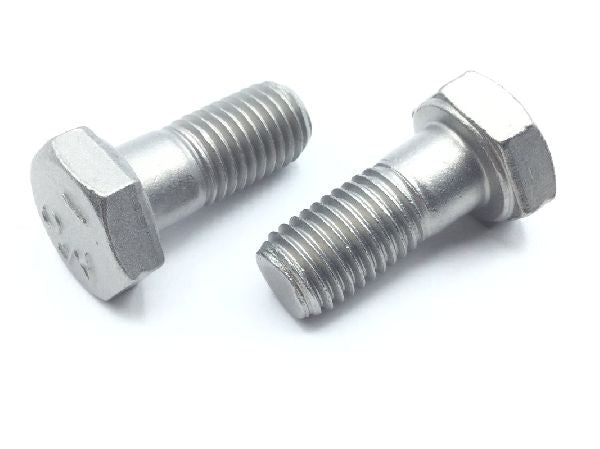

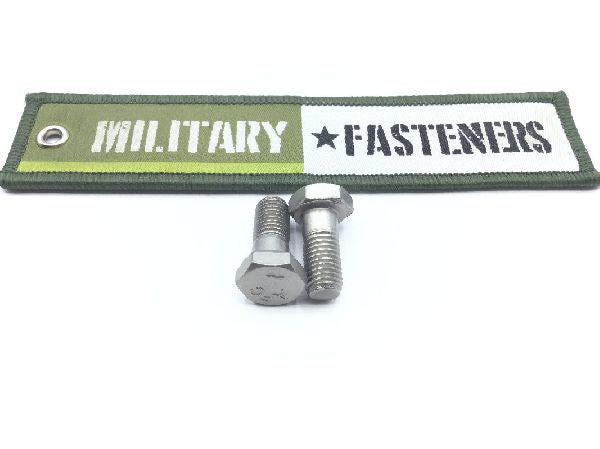

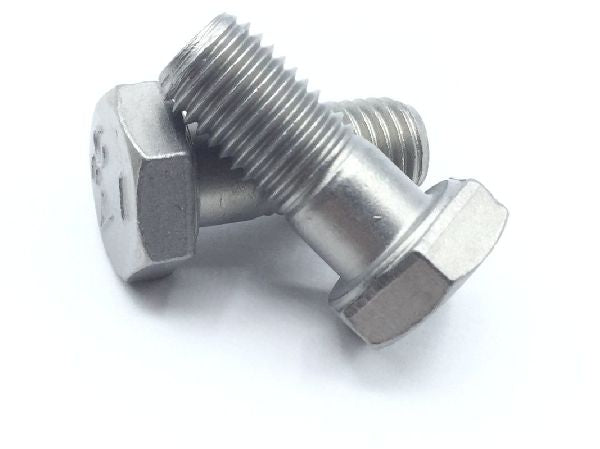

AN5C5A Machine Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $4.00

Units per Pack 10

Price per Pack $40.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $40.00

Add item to quote

Head Style

Hexagon

Material

Stainless Steel

Thread Class

Fastener Length: 0.719 inches
Features: Finished head
Features Provided: Finished head
Grip Length: 0.188 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.172 inches and 0.204 inches
Material Specification: Qq-s-770 federal specification single material response
Min. Tensile Strength (psi): 125000 pounds per square inch
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: 0.531 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.490 inches and 0.502 inches
