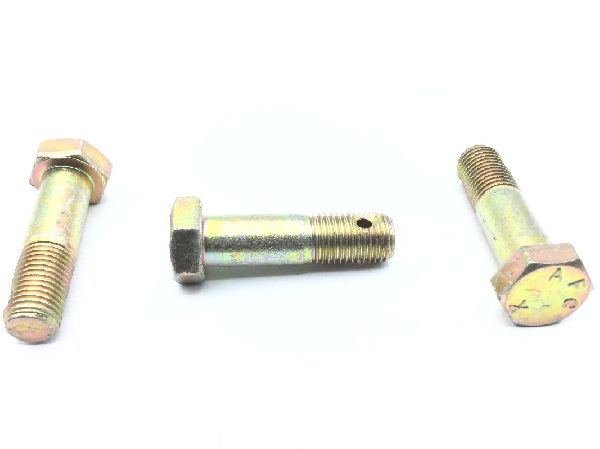

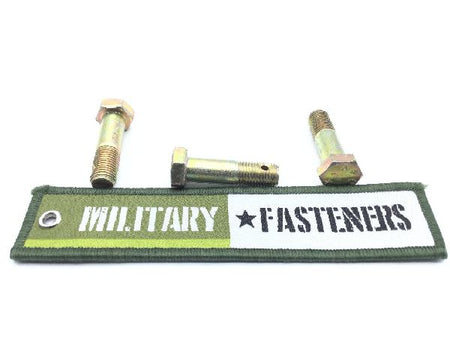

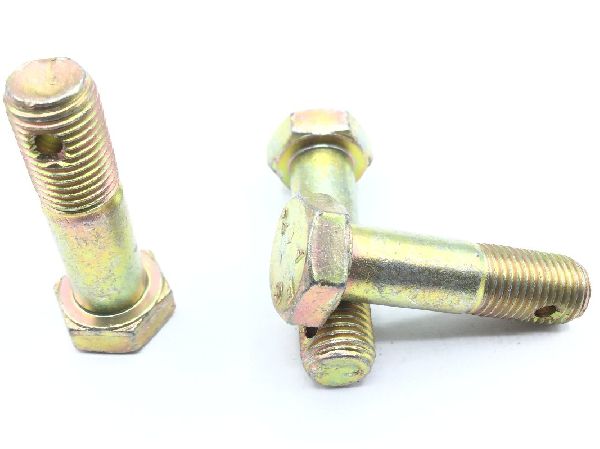

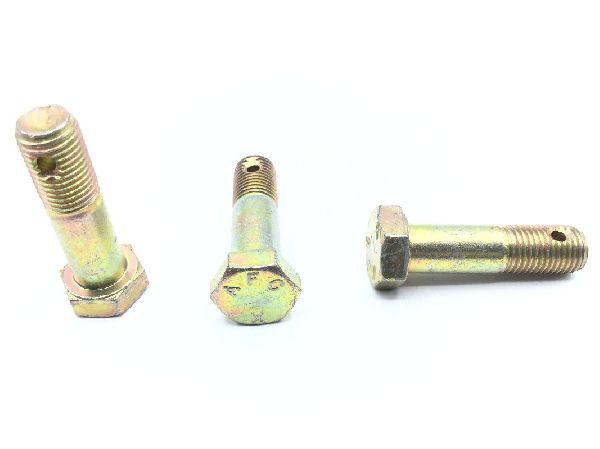

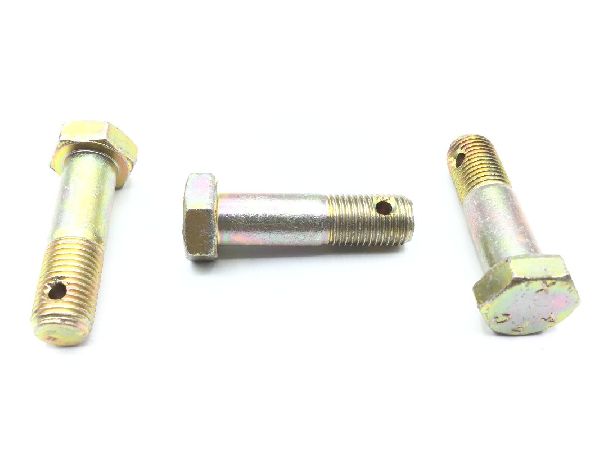

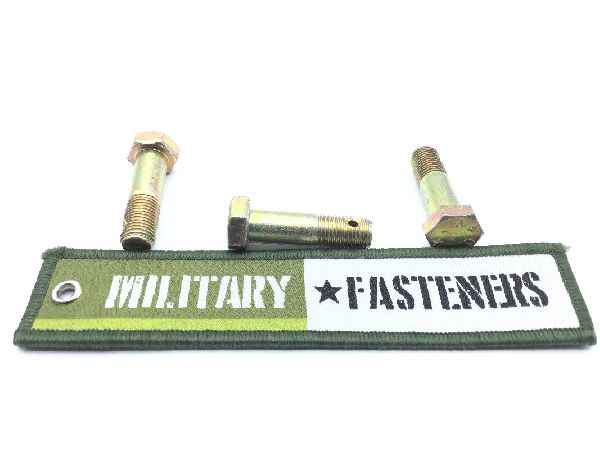

AN6-12 Machine Bolt

NSN: 5306-00-151-1339
Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $1.73

Units per Pack 25

Price per Pack $43.25

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $43.25

Add item to quote

Head Style

Hexagon

Material

Steel comp 4037 or steel comp 4130 or steel comp 8630 or steel comp 8735 or steel comp 8740 or steel comp 4140

Surface Treatment

Cl 3 federal specification single treatment response type 1 qq-p-416

Thread Class

Distance From Head Largest Bearing Surface To Shank Hole Center: 1.250 inches first hole
Fastener Length: Between 1.312 inches and 1.359 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 0.672 inches and 0.704 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.203 inches and 0.235 inches
Material Specification: Mil-b-6812 military specification all material responses
Min. Tensile Strength (psi): 125000 pounds per square inch
Shank Unthreaded Hole Diameter: 0.106 inches first hole and 0.116 inches first hole
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: Between 0.608 inches and 0.687 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.553 inches and 0.565 inches
