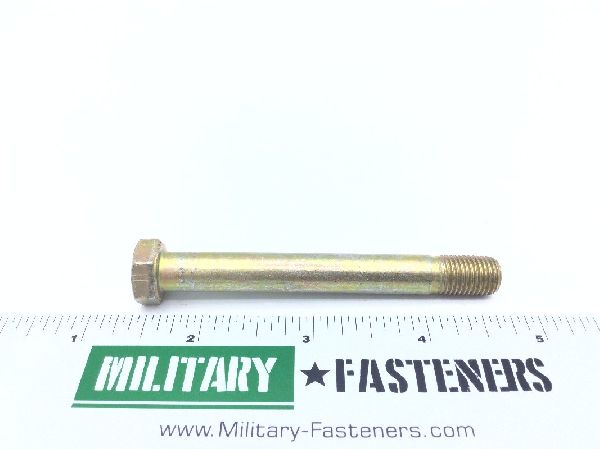

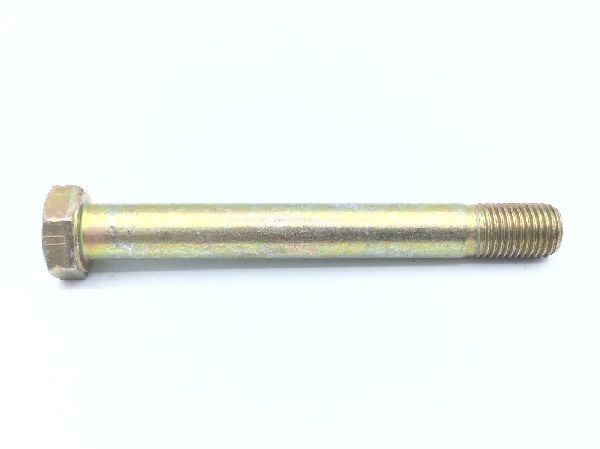

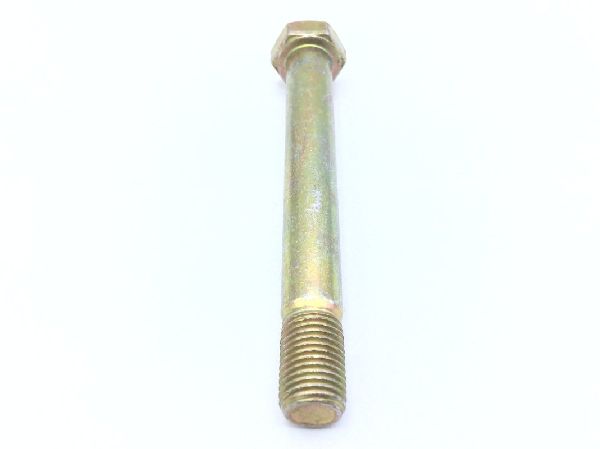

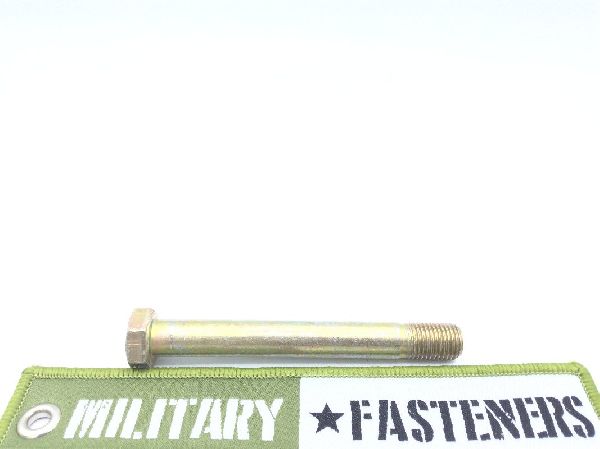

AN6-30A Machine Bolt

NSN: 5306-00-582-6411
Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $3.54

Units per Pack 20

Price per Pack $70.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $70.80

Add item to quote

Head Style

Hexagon

Material

Steel comp

Surface Treatment

Class 3 federal specification single treatment response ty2 qq-p-416

Thread Class

Fastener Length: 3.078 inches
Features: Finished head
Features Provided: Finished head
Grip Length: 2.438 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.203 inches and 0.235 inches
Material Specification: Mil-b-6812 military specification all material responses
Min. Tensile Strength (psi): 125000 pounds per square inch
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: 0.640 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.553 inches and 0.565 inches
