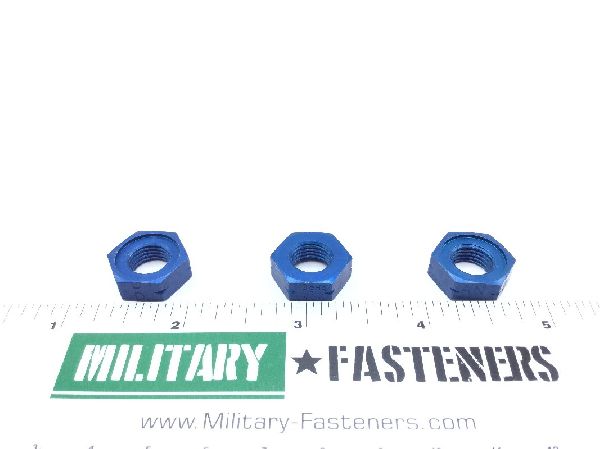

AN6289D3 Tube Fitting Locknut

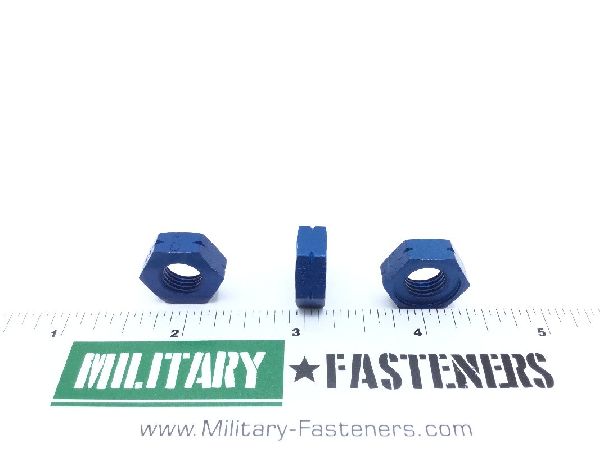

AN6289D3 Tube Fitting Locknut (2)

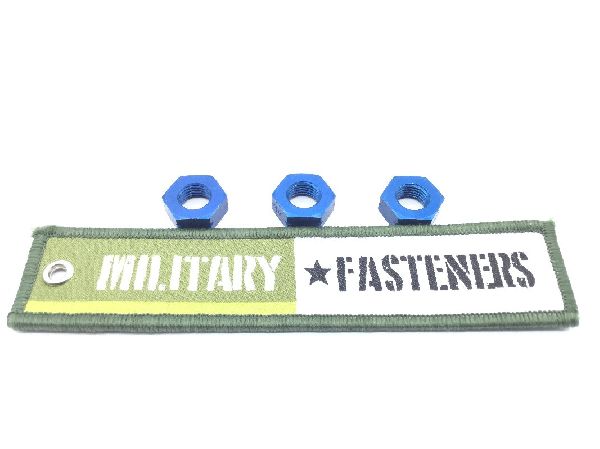

AN6289D3 Tube Fitting Locknut (3)

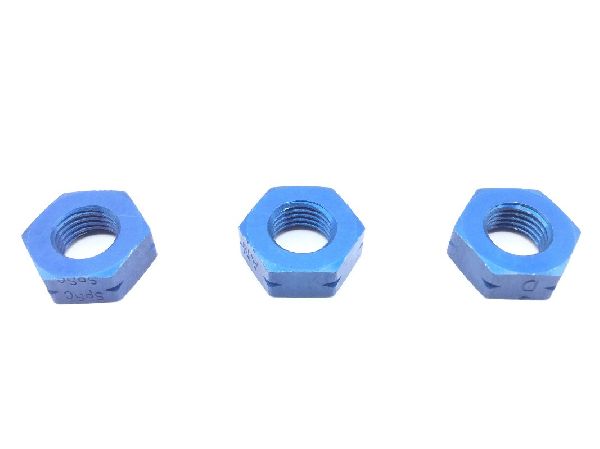

AN6289D3 Tube Fitting Locknut (4)

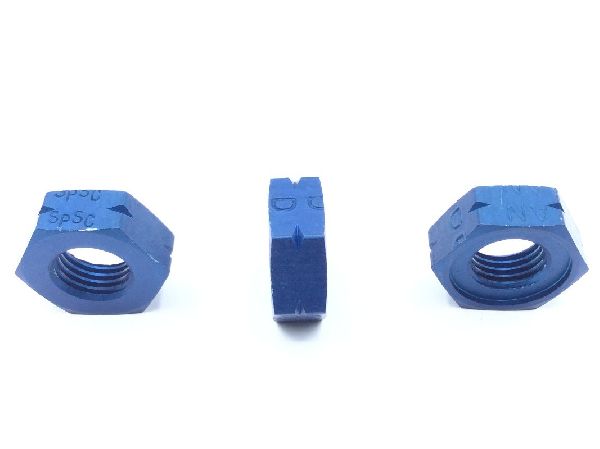

AN6289D3 Tube Fitting Locknut (5)

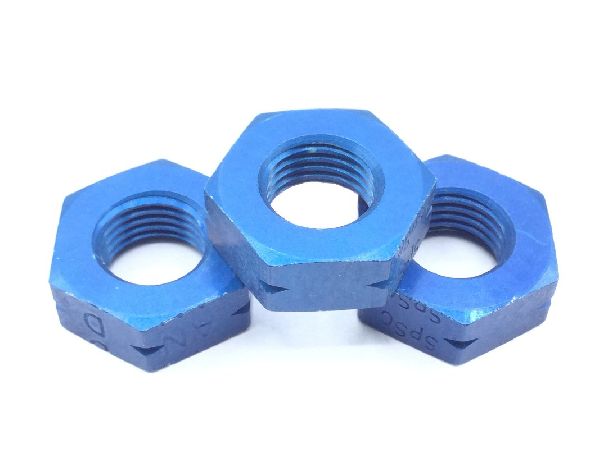

AN6289D3 Tube Fitting Locknut (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AN6289D3 Tube Fitting Locknut

Product Series: AN
ECCN: EAR99
Schedule: 7307.22.5000

Price per Unit $4.50

Units per Pack 10

Price per Pack $45.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $45.00

Add item to quote

Material

Aluminum alloy 2014

Surface Treatment

Class 2 military specification single treatment response type 2 mil-a-8625

Thread Class

3b

Thread Series

Unf (fine thread)

Thread Size

0.375 inches

End Application: F-18 aircraft
Material Specification: T6 federal specification single material response alloy 2014 qq-a-225/4
Nut Height: 0.250 inches
Nut Style: Tube fitting locknut
Packing Recess Depth: 0.037 inches
Packing Recess Diameter: 0.546 inches
Specification Data: 88044-an6289 government standard
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 24
Tube Outside Diameter: 0.188 inches
Width Across Flats: 0.625 inches
