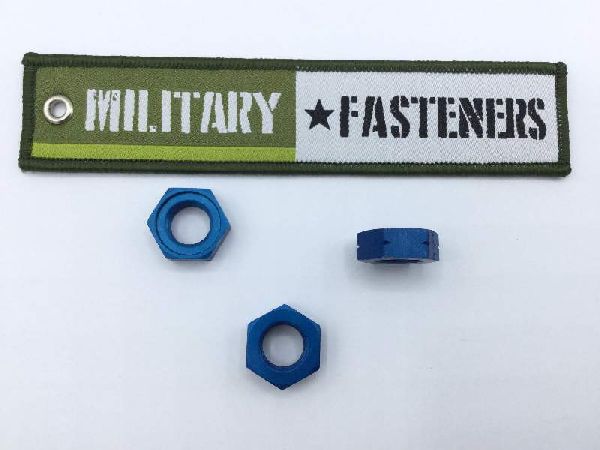

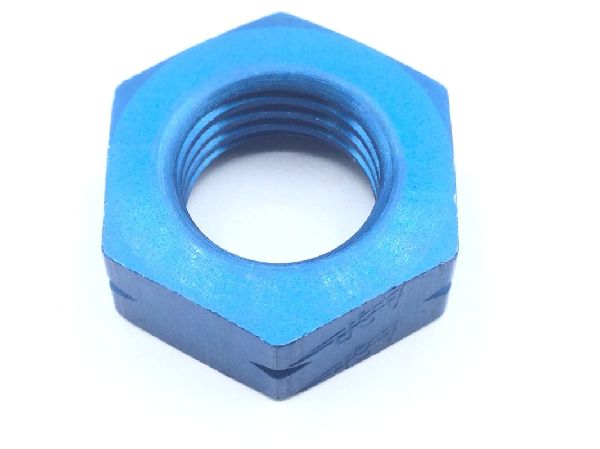

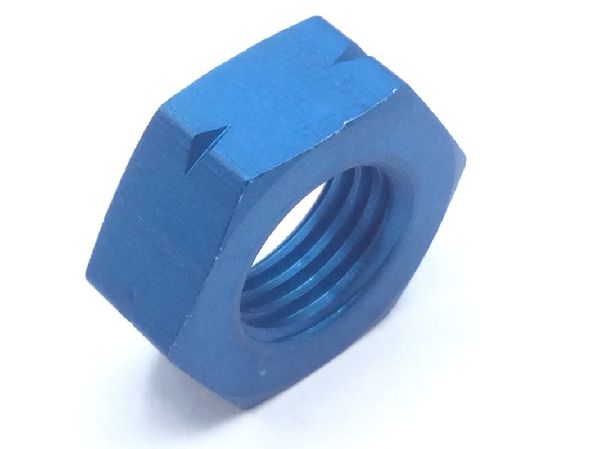

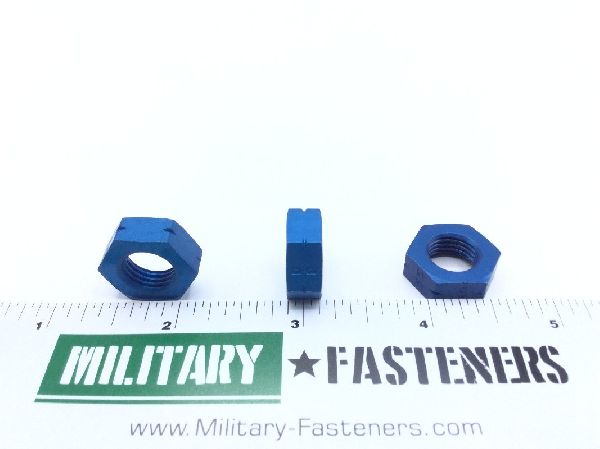

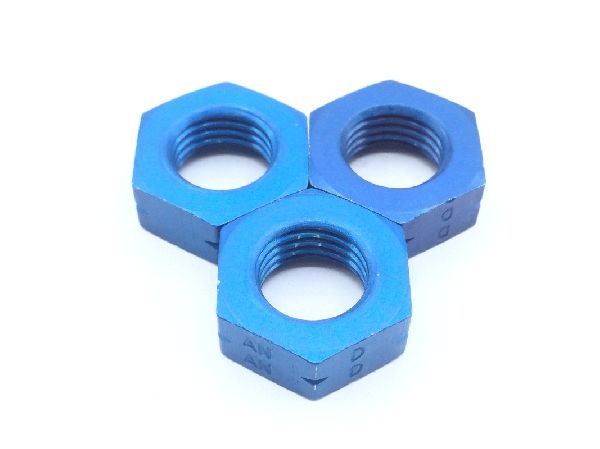

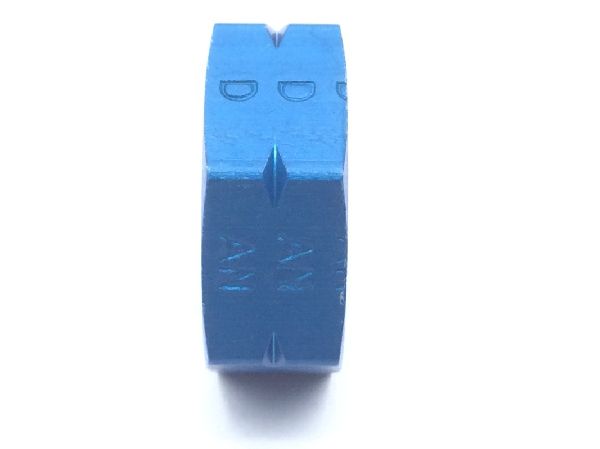

AN6289D4 Tube Fitting Locknut

Product Series: AN
ECCN: EAR99
Schedule: 7307.22.5000

Price per Unit $3.68

Units per Pack 10

Price per Pack $36.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $36.80

Add item to quote

Material

Aluminum alloy 2014

Surface Treatment

Class 2 military specification single treatment response type 2 mil-a-8625

Thread Class

Thread Series

Unf (fine thread)

Thread Size

0.438 inches

End Application: Model c-47; f-18 aircraft grumman a10 aircraft;boeing vertol cargo transport helicopter
Material Specification: T6 federal specification single material response alloy 2014 qq-a-225/4
Nut Height: 0.281 inches
Nut Style: Tube fitting locknut
Packing Recess Depth: 0.042 inches
Packing Recess Diameter: 0.608 inches
Specification Data: 88044-an6289 government standard
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 20
Tube Outside Diameter: 0.250 inches
Width Across Flats: 0.688 inches
