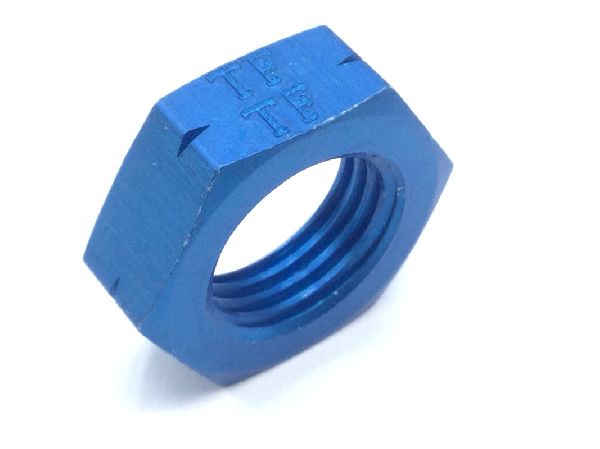

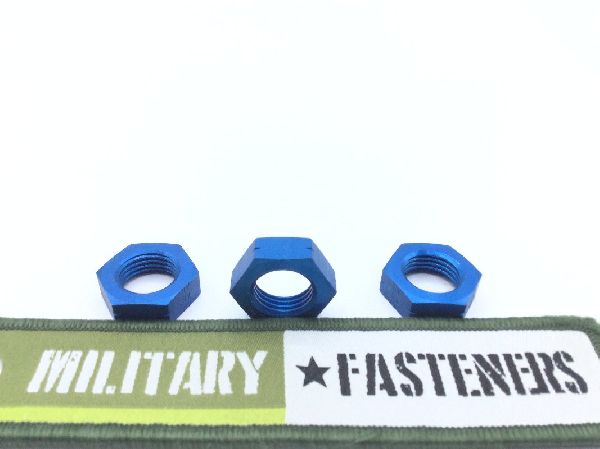

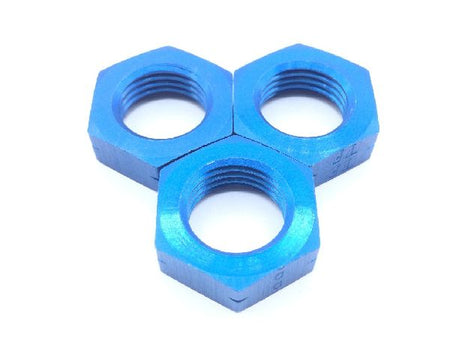

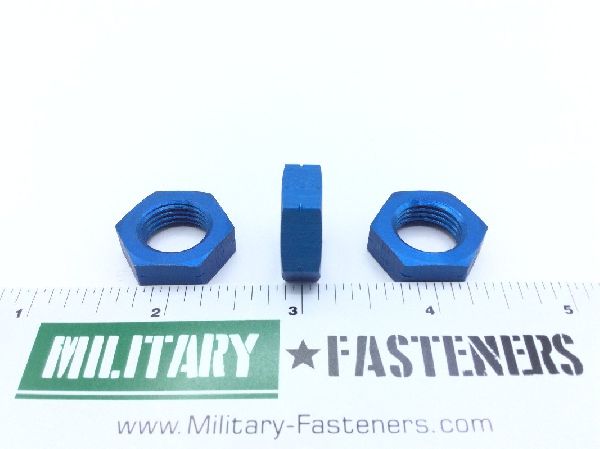

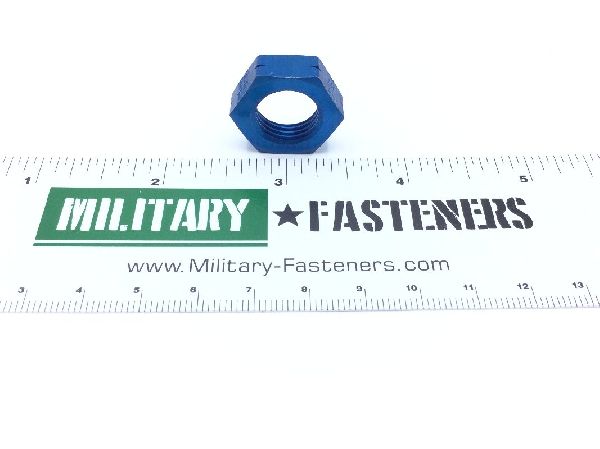

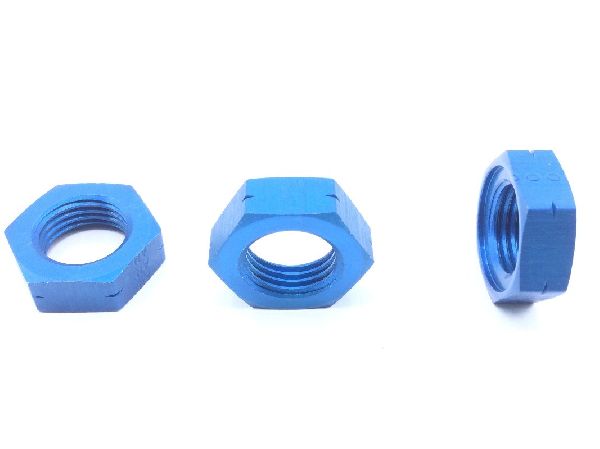

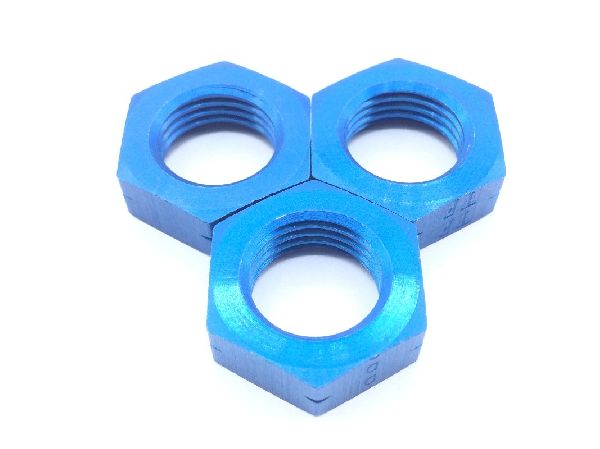

AN6289D6 Tube Fitting Locknut

Product Series: AN
ECCN: EAR99
Schedule: 7307.22.5000

Price per Unit $9.71

Units per Pack 5

Price per Pack $48.55

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $48.55

Add item to quote

Material

Aluminum alloy 2024

Surface Treatment

Mil-a-8625 military specification single treatment response

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.562 inches

Fabrication Method: Machined
Material Specification: Qq-a-225/6 federal specification single material response
Nut Height: Between 0.250 inches and 0.282 inches
Nut Style: Tube fitting locknut
Packing Recess Depth: Between 0.037 inches and 0.047 inches
Packing Recess Diameter: Between 0.728 inches and 0.738 inches
Specification Data: 88044-an6289 government standard
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 18
Tube Outside Diameter: 0.375 inches
Width Across Flats: Between 0.809 inches and 0.816 inches
