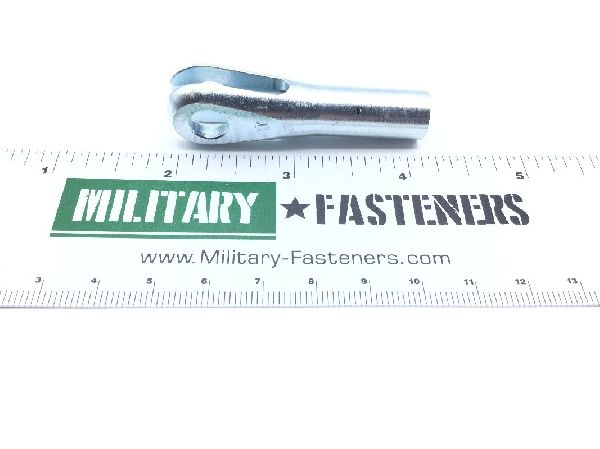

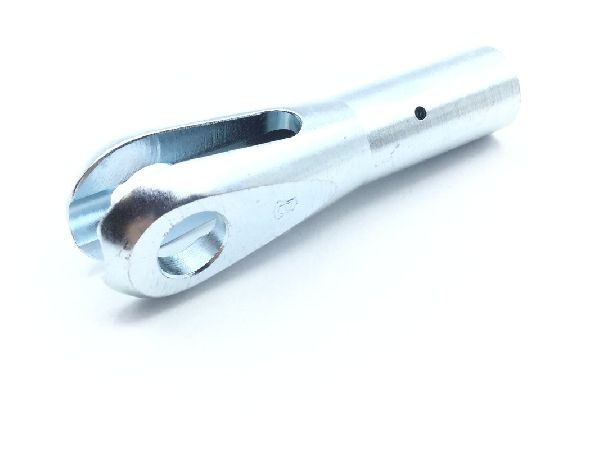

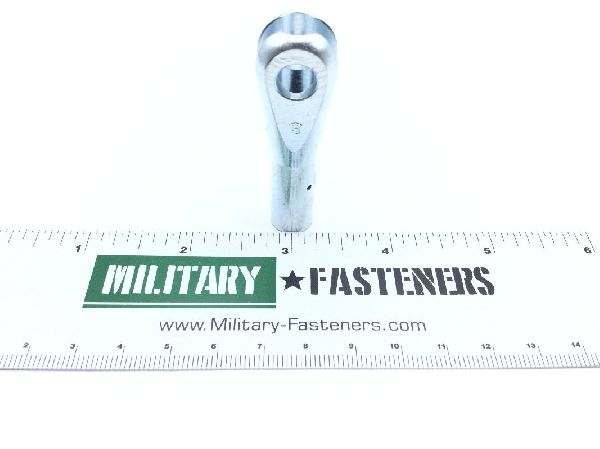

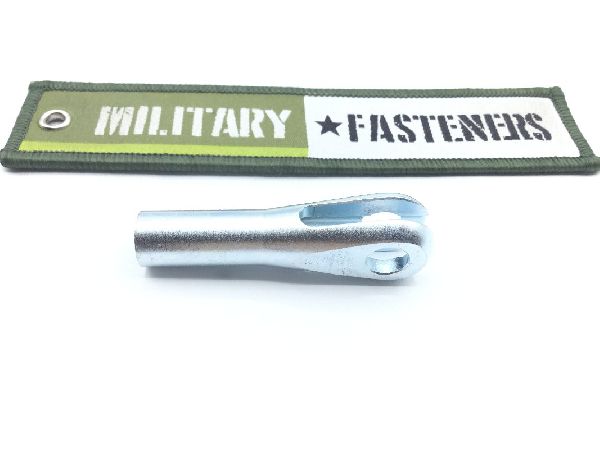

AN665-46R Clevis Rod End

Product Series: AN
ECCN: EAR99
Schedule: 7326.90.8695

Price per Unit $80.31

Units per Pack 1

Price per Pack $80.31

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $80.31

Add item to quote

Thread Class

3a rod connection

Thread Size

0.312 inches rod connection

Distance From Center Of Securing Pin Hole To Rod End: 0.625 inches
Distance From Pivot Pinhole Center To Rod Connection End: Between 1.860 inches and 1.890 inches
End Radius: 0.344 inches
Fork Arm Thickness: Between 0.141 inches and 0.153 inches
Fork Depth: 0.656 inches
Fork Span Width: Between 0.203 inches and 0.213 inches
Iii Material: Steel
Metallic Hardness Rating: 26.0 rockwell c and 31.0 rockwell c
Overall Width: Between 0.495 inches and 0.510 inches
Securing Pin Hole Diameter: 0.046 inches
Shank Diameter: Between 0.438 inches and 0.448 inches
Shank Length: Between 0.922 inches and 0.952 inches
Style Designator: Clevis
Thread Direction: Right-hand rod connection
Thread Length: 0.516 inches rod connection and 0.610 inches rod connection
Thread Series Designator: Unf (fine thread) rod connection
Hole Diameter: Between 0.313 inches and 0.316 inches
