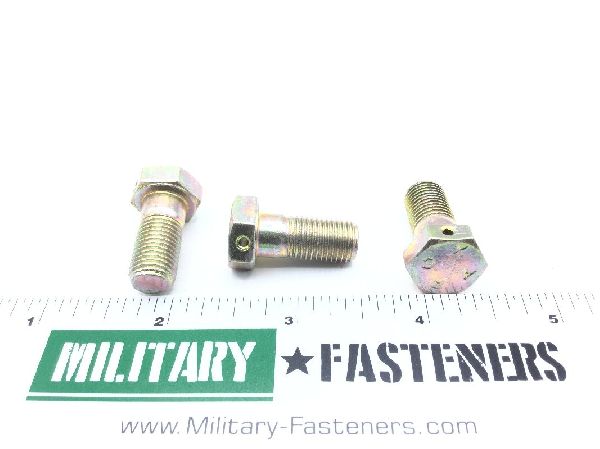

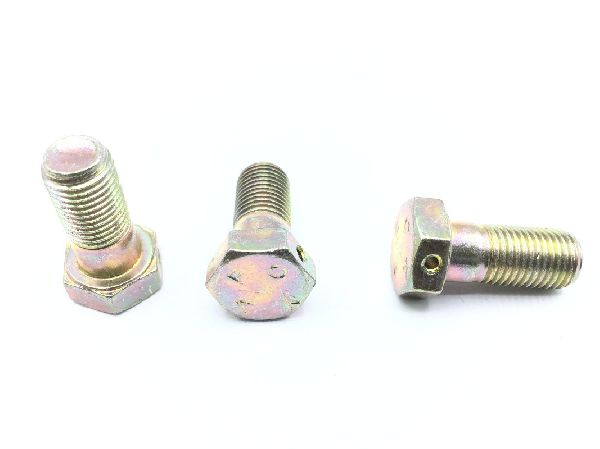

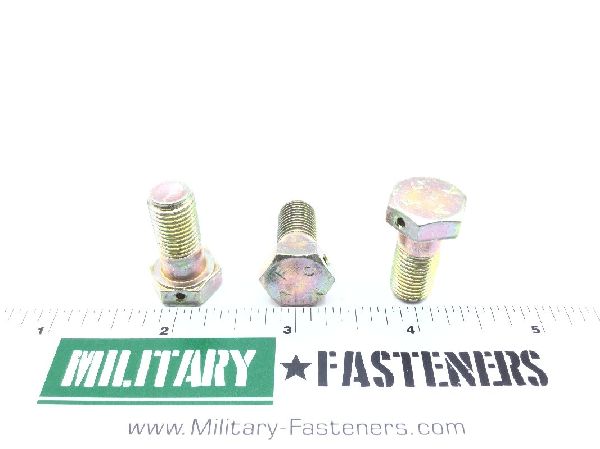

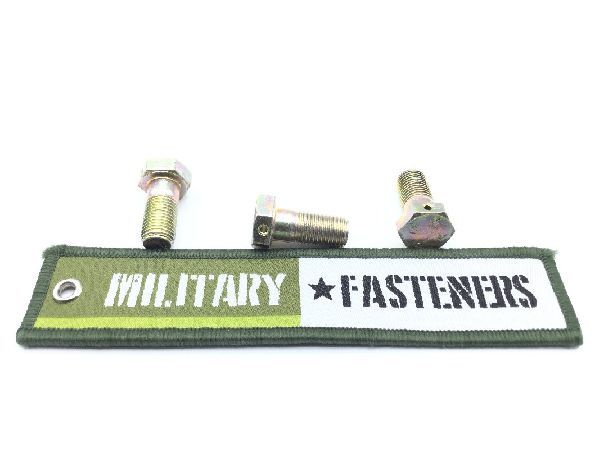

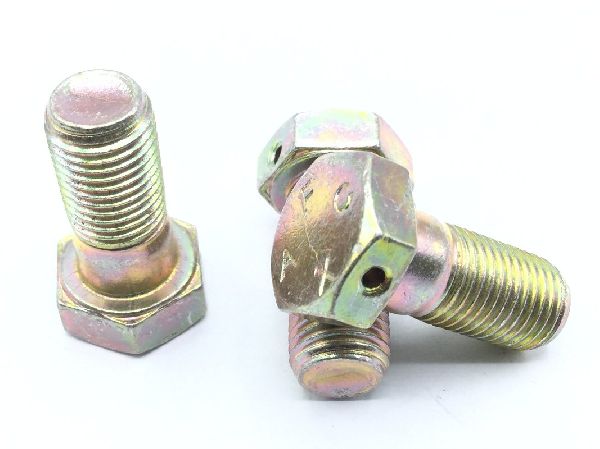

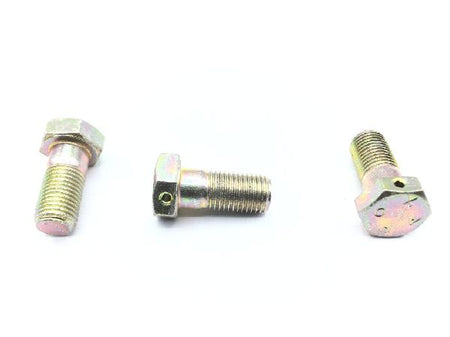

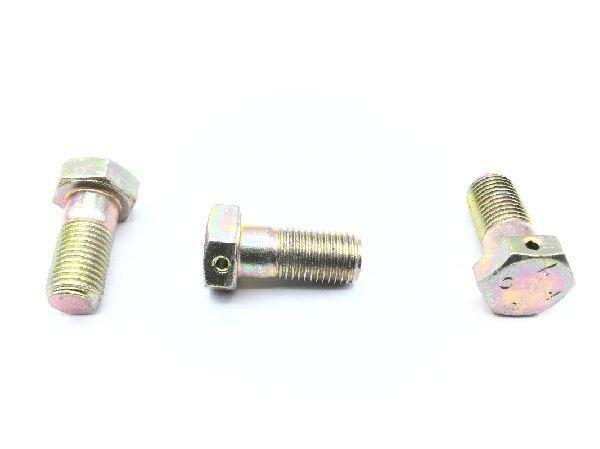

AN6H6A Machine Bolt

NSN: 5306-00-638-5828
Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Hexagon

Material

Steel comp 4037 or steel comp 4130 or steel comp 8630 or steel comp 8735 or steel comp 8740 or steel comp 4140

Surface Treatment

Class 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Fastener Length: 0.828 inches
Features: Finished head
Features Provided: Finished head
Grip Length: 0.188 inches
Hardness Rating: 26 rockwell c and 32 rockwell c
Head Height: Between 0.203 inches and 0.235 inches
Hole Configuration Style: Hexagon longitudinal hole
Hole Quantity: 1
Hole Type: Drilled
Material Specification: Mil-b-6812 military specification all material responses
Min. Tensile Strength (psi): 125000 pounds per square inch
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: 0.64 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.553 inches and 0.565 inches
Hole Diameter: 0.07 inches
