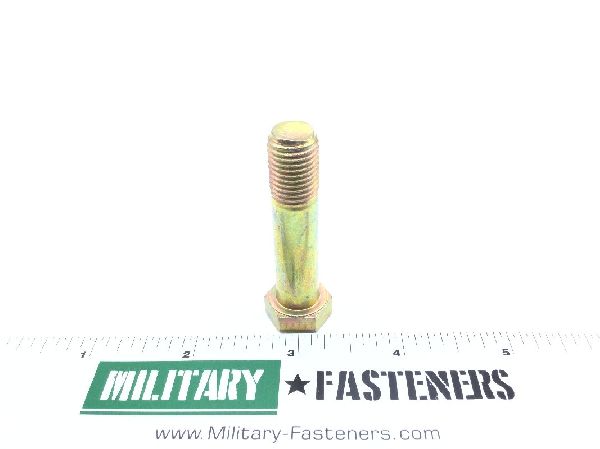

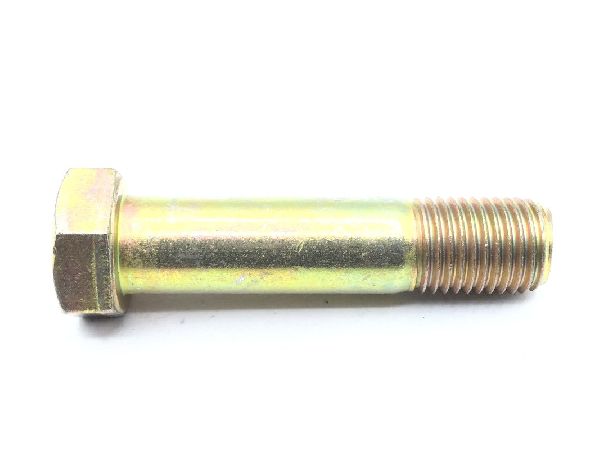

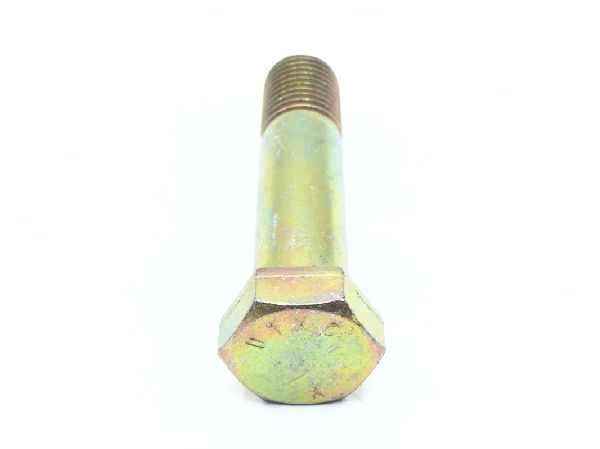

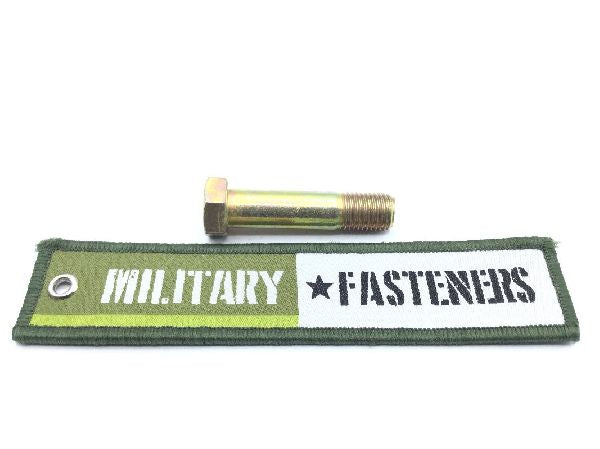

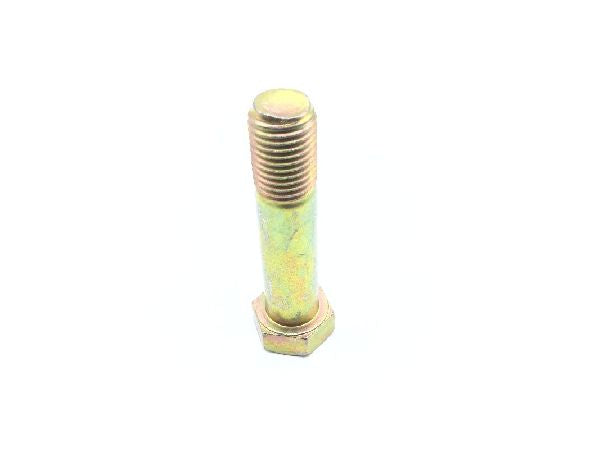

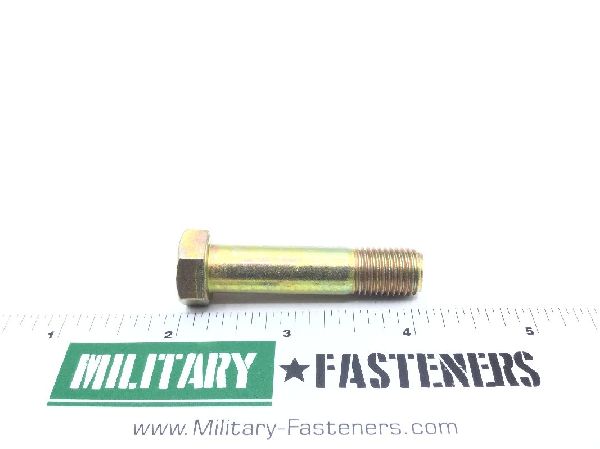

AN7-16A Machine Bolt

NSN: 5306-00-208-3655
Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Hexagon

Material

Steel comp

Surface Treatment

Class 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Fastener Length: Between 1.828 inches and 1.875 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 1.172 inches and 1.203 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.234 inches and 0.266 inches
Min. Tensile Strength (psi): 125000 pounds per square inch
Thread Diameter: 0.438 inches
Thread Direction: Right-hand
Thread Length: Between 0.625 inches and 0.703 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.615 inches and 0.627 inches
