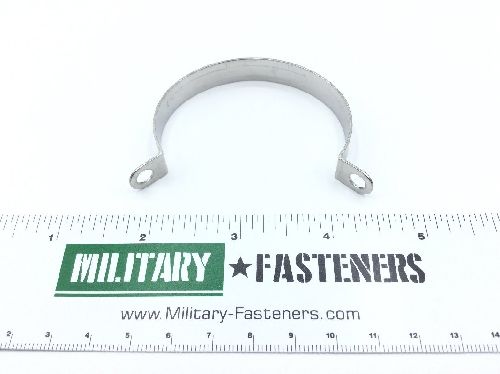

AN735C24 Hose Clamp

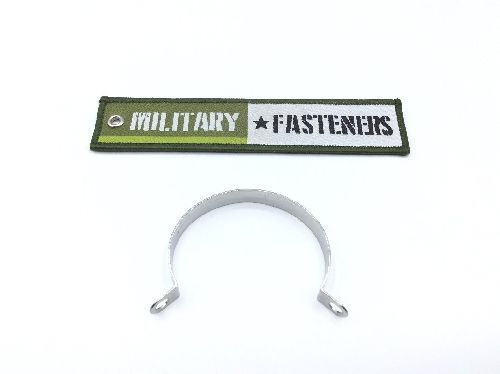

AN735C24 Hose Clamp (2)
AN735C24 Hose Clamp (3)

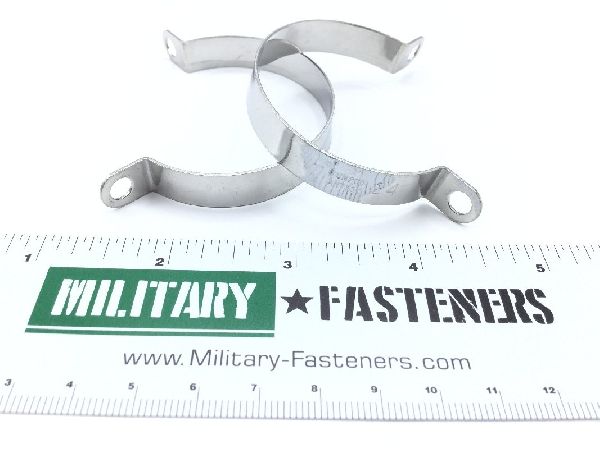

AN735C24 Hose Clamp (4)

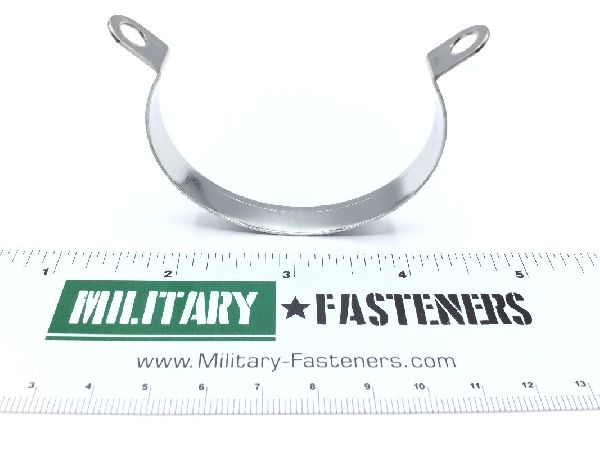

AN735C24 Hose Clamp (5)

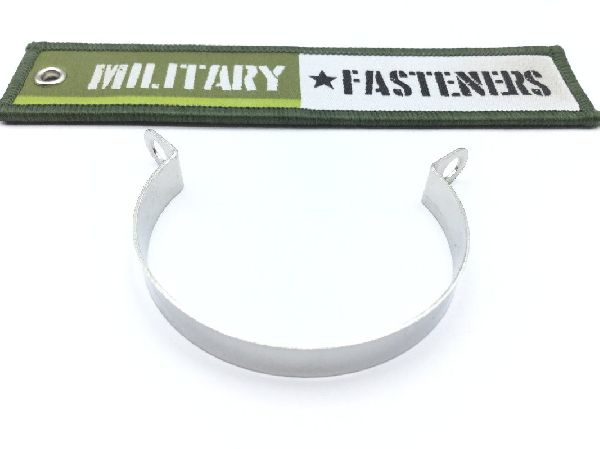

AN735C24 Hose Clamp (6)

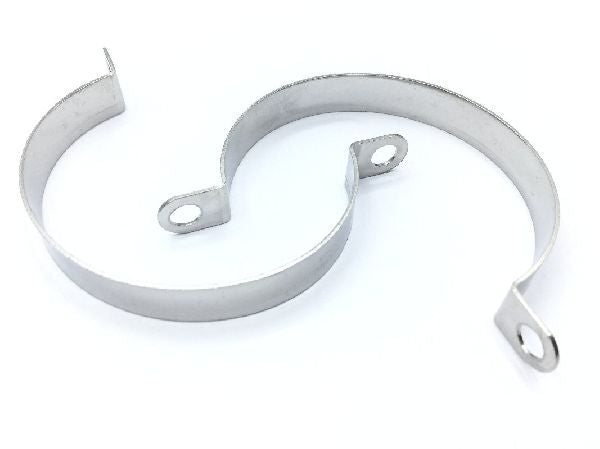

AN735C24 Hose Clamp (7)

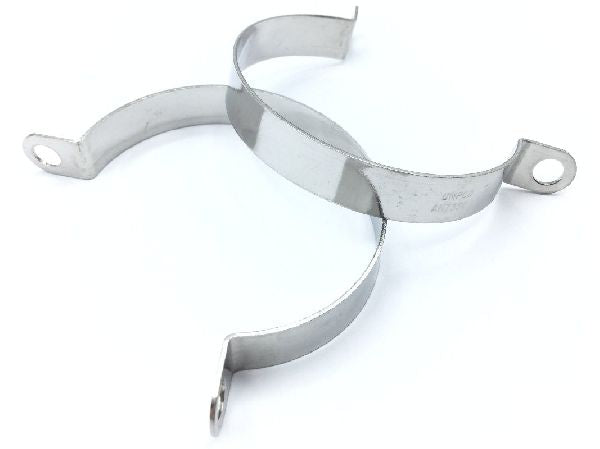

AN735C24 Hose Clamp (8)

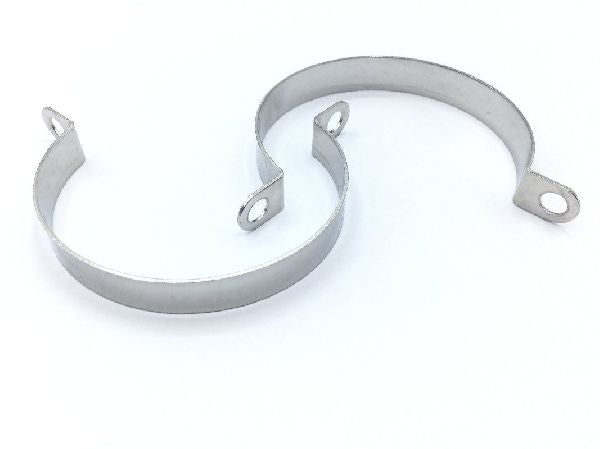

AN735C24 Hose Clamp (9)
AN735C24 Hose Clamp
AN735C24 Hose Clamp (2)
AN735C24 Hose Clamp (3)
AN735C24 Hose Clamp (4)
AN735C24 Hose Clamp (5)
AN735C24 Hose Clamp (6)
AN735C24 Hose Clamp (7)
AN735C24 Hose Clamp (8)
AN735C24 Hose Clamp (9)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

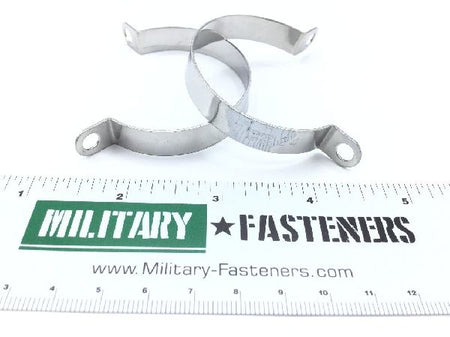

AN735C24 Hose Clamp

Product Series
AN
ECCN
EAR99
Schedule
7326.19.0000
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Steel comp 302 or steel comp 321
Surface Treatment
Qq-p-35 federal specification single treatment response
Center To Center Distance Between Loop And Mounting Hole
Between 1.048 inches and 1.078 inches
Distance From Loop Center To Tongue End
1.251 inches
Loop Inside Diameter
Between 1.495 inches and 1.505 inches
Material Specification
Mil-s-5059 military specification 1st material response or ams 5510 assn standard 2nd material response
Material Thickness
0.031 inches
Overall Width
Between 0.365 inches and 0.385 inches
Style Designator
Center mount
Tongue Hole Type
unthreaded round
Diameter
0.204 inches
